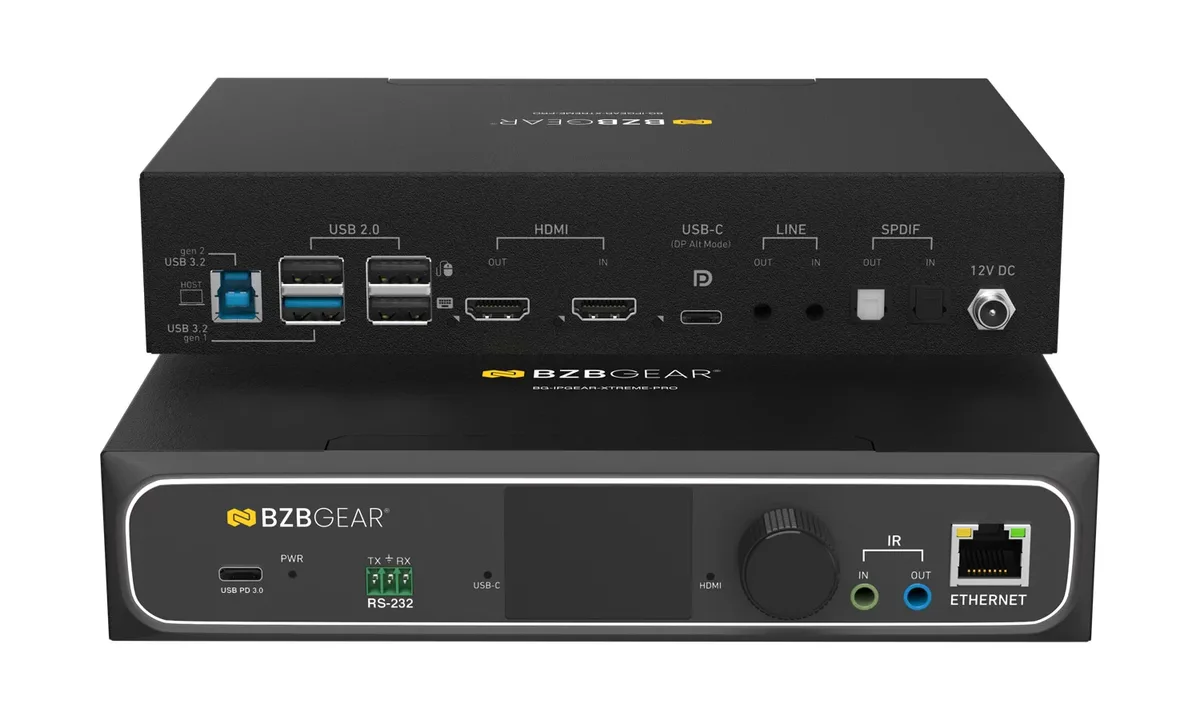

BZBGear BG-IPGEAR-XTREME-PRO 8K AV over IP Transceiver

The XTREME PRO is the top of BZBGear's AV-over-IP range and the one to specify when the source is beyond 4K60. It handles 8K at 30 Hz 4:4:4, 8K60 4:2:0 uncompressed and 4K at 144 Hz, and still runs over a single gigabit link, with latency under one frame.

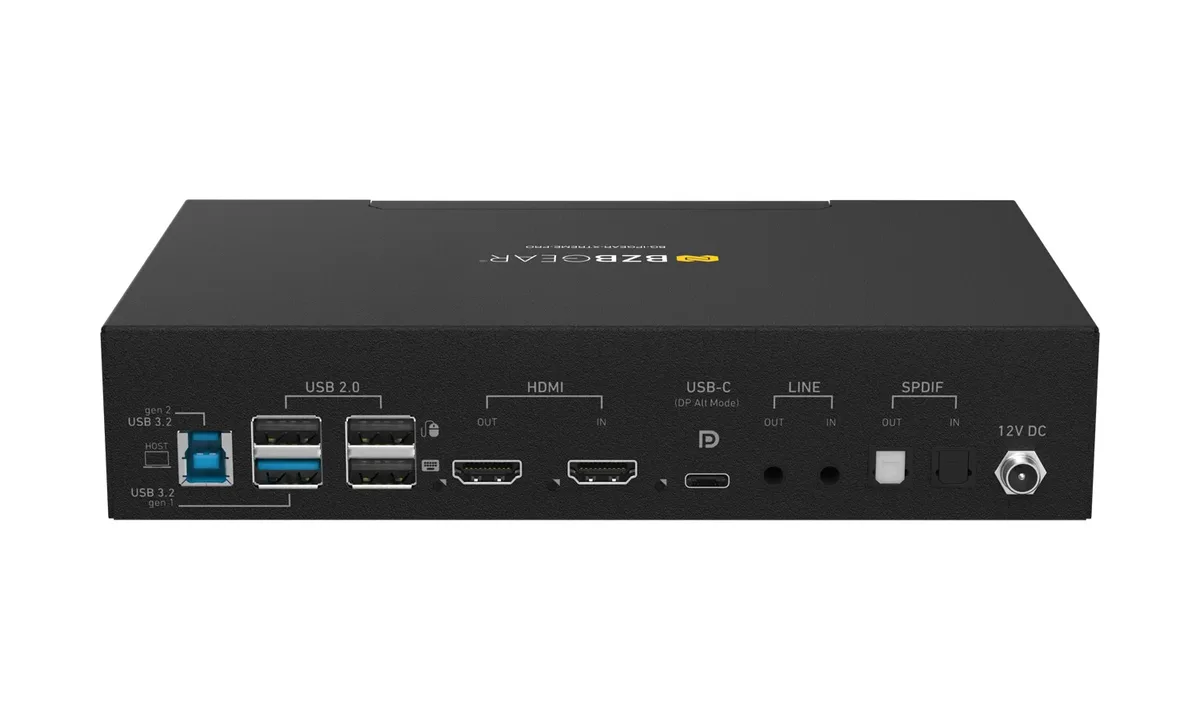

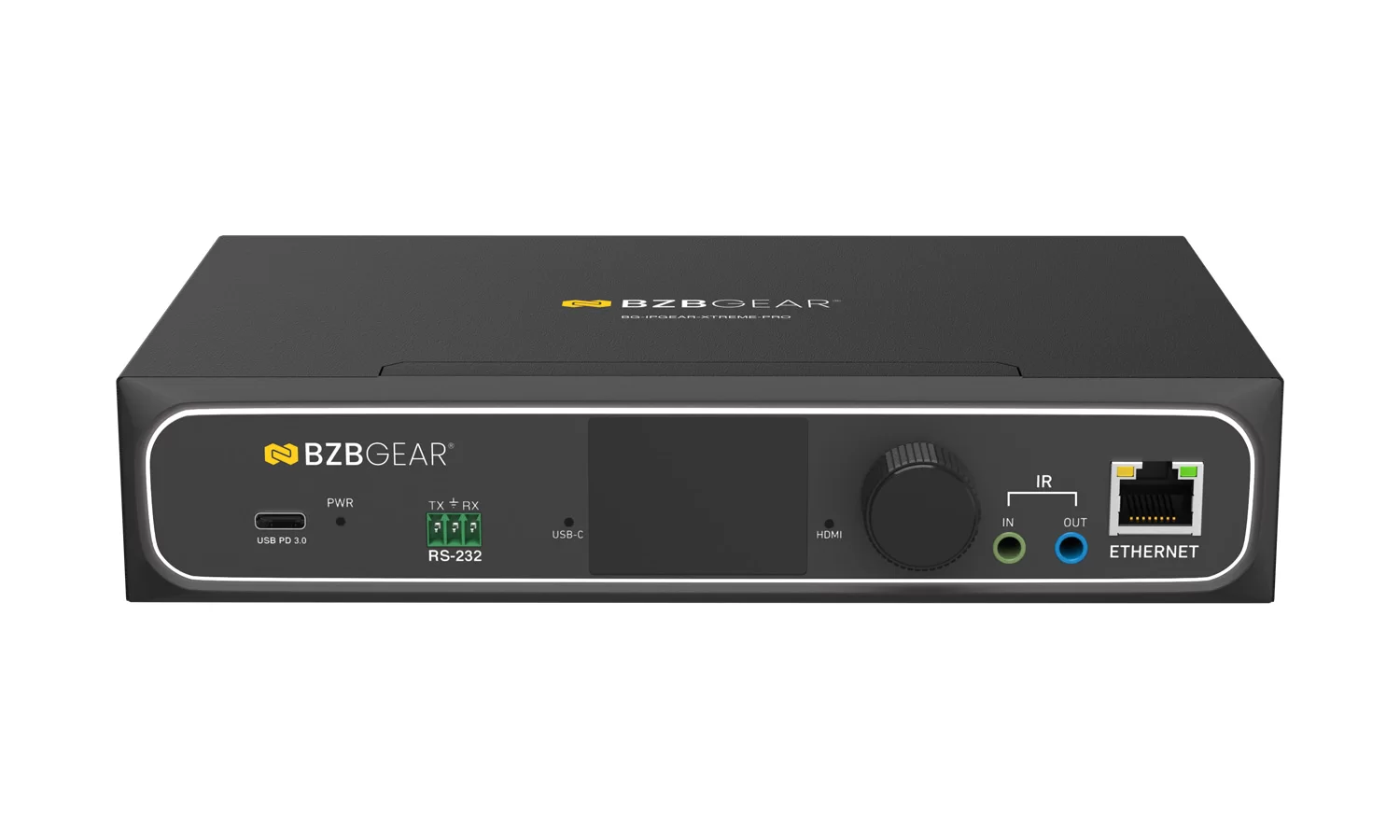

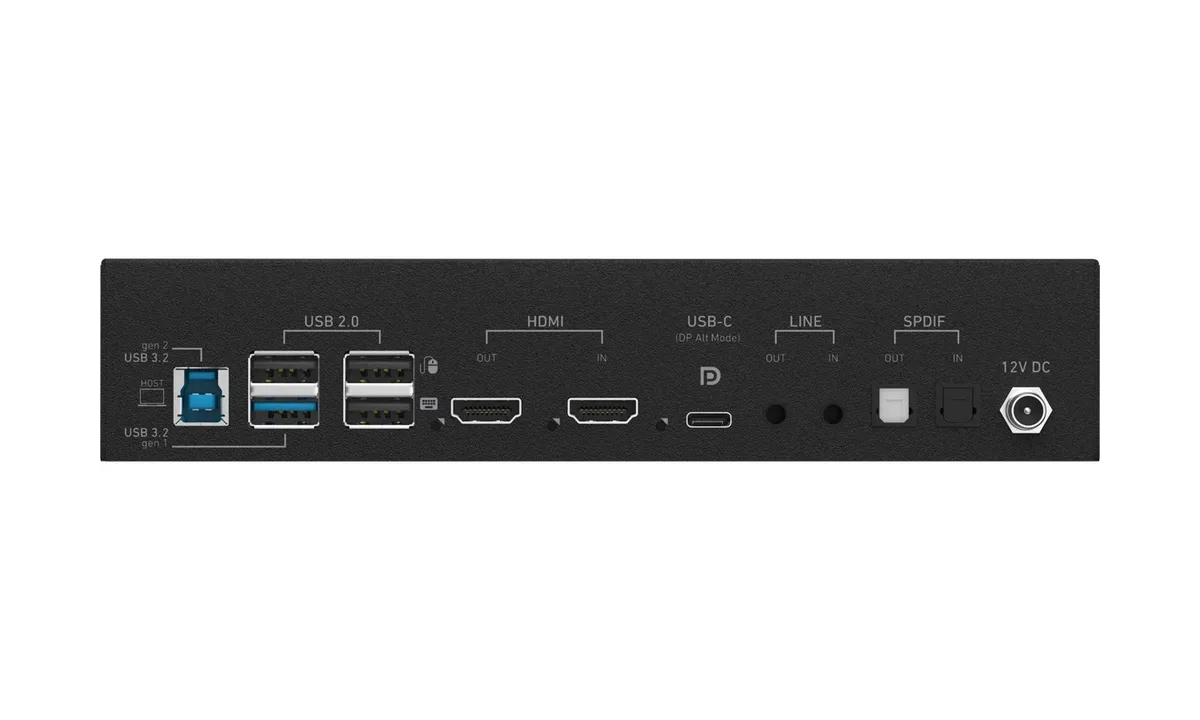

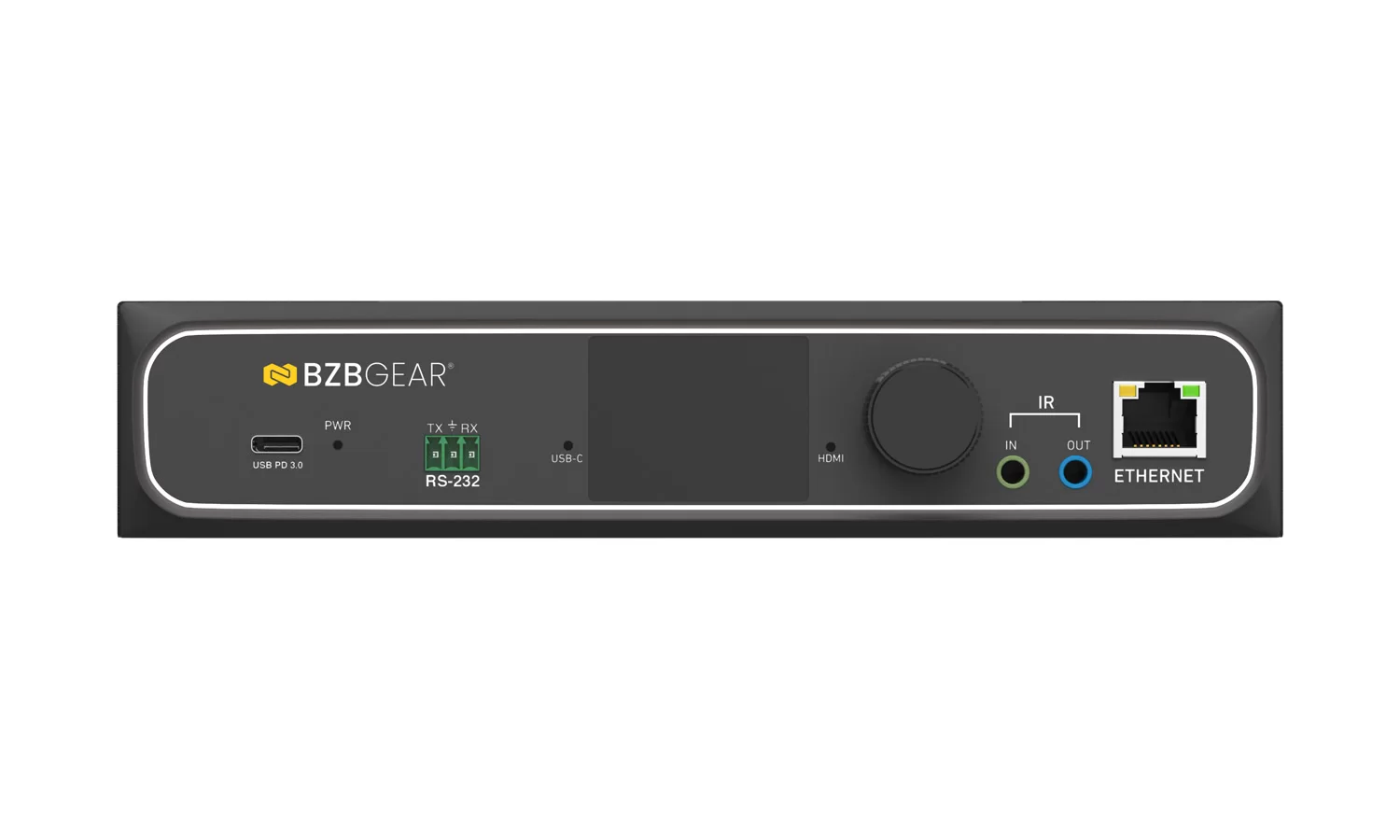

It works as an encoder or a decoder, supports video walls, image rotation, PiP, PbP and PoP windowing and custom output scaling, and passes ARC and eARC audio plus Dolby TrueHD and DTS-HD Master Audio. Two HDMI ports, two TOSLINK ports, USB Type-A, Type-B and USB-C with DisplayPort Alt Mode, RJ-45 and RS-232 are on the chassis. 802.1Q VLAN and IGMP snooping keep large deployments orderly.

Role	HDMI 2.1 over IP Transceiver
HDMI compliance	HDMI 2.1
HDCP compliance	HDCP 2.3
Video resolution	8K@30 4:4:4, 8K@60HZ 4:2:0 Uncompressed, 8K@60Hz 4:2:2 DSC, 4K@144Hz 4:4:4, 4K@120Hz 4:4:4
Video bandwidth	Up to FRL 6 (48Gbps)
Transmission distance	Up to 170m (560ft) over Cat.5e/6/6a/7 at 4K@144Hz 4:4:4 / 8K@60Hz 4:2:2 (DSC)
Latency	Less than 1 frame
HDMI ports	2 x HDMI Type-A (19-pin female)
USB ports	USB Type-A, Type-B, USB-C
Network port	Integrated 1GbE Ethernet port
Dimensions (L x W x H)	8.7 x 4.1 x 1.7in [220 x 105 x 44mm]
Weight	24 oz [680 g]
