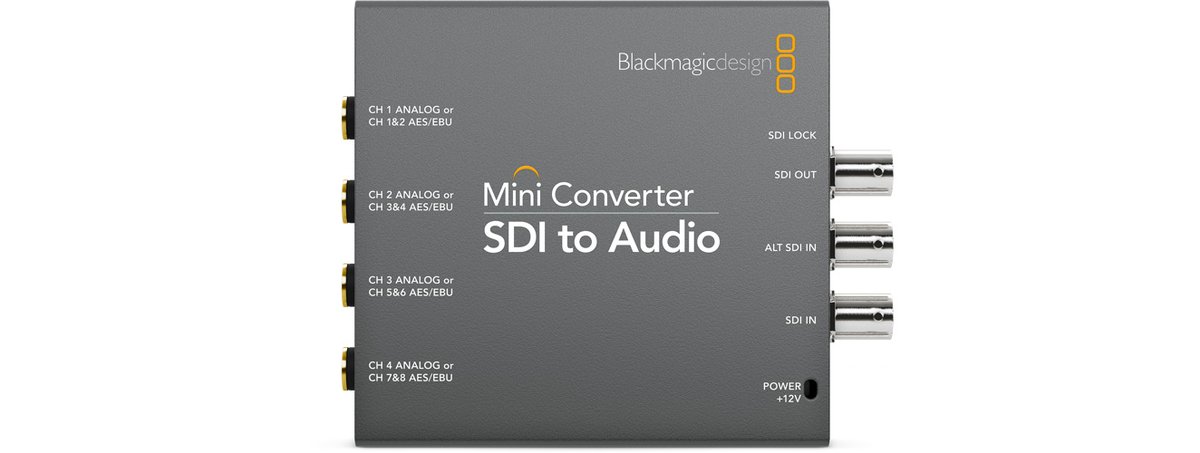

Blackmagic SDI to Audio Converter

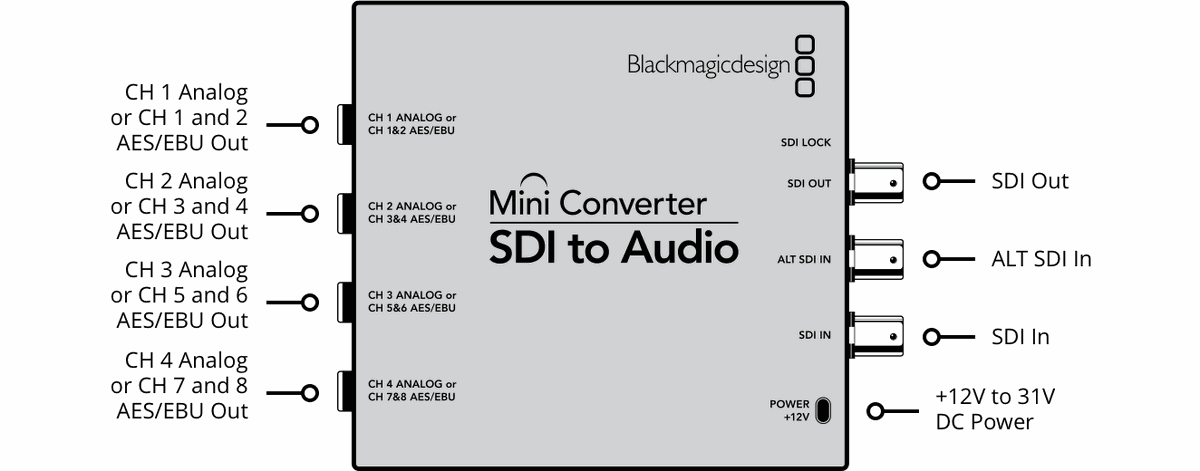

The Blackmagic SDI to Audio Mini Converter de-embeds audio from an SDI source in SD and HD formats up to 1080p60. It pulls the audio out of an SDI signal and delivers up to four channels of balanced analog audio or eight channels of AES/EBU digital audio to a mixer, recorder, or monitoring rack.

An ALT SDI input provides automatic switchover on a main-input failure, and an SDI loop output passes the video through to the next stage. The converter runs on an included +12V universal power supply.
