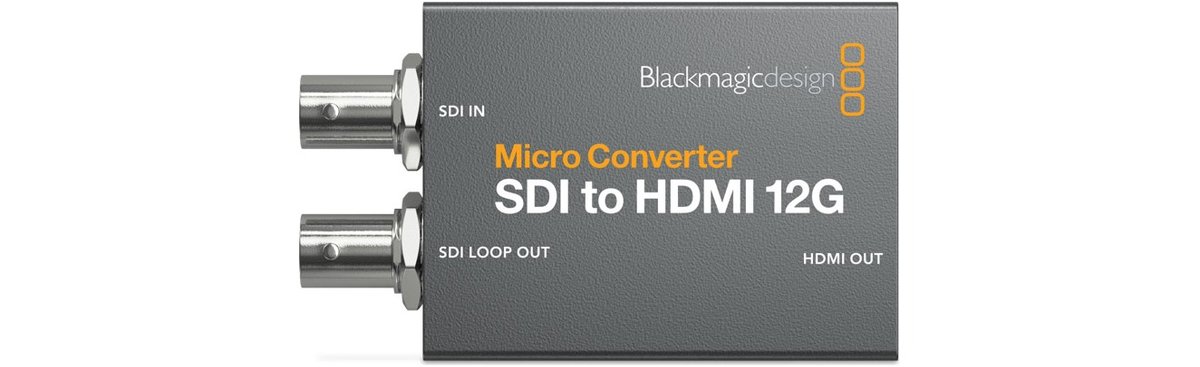

Blackmagic SDI to HDMI 12G Micro Converter

The Blackmagic SDI to HDMI 12G Micro Converter takes an SDI source at rates up to 12G and outputs HDMI, so an Ultra HD SDI signal drives a television, projector or computer monitor with an HDMI input. It is a compact way to put program or camera video onto an HDMI display without a larger rack converter.

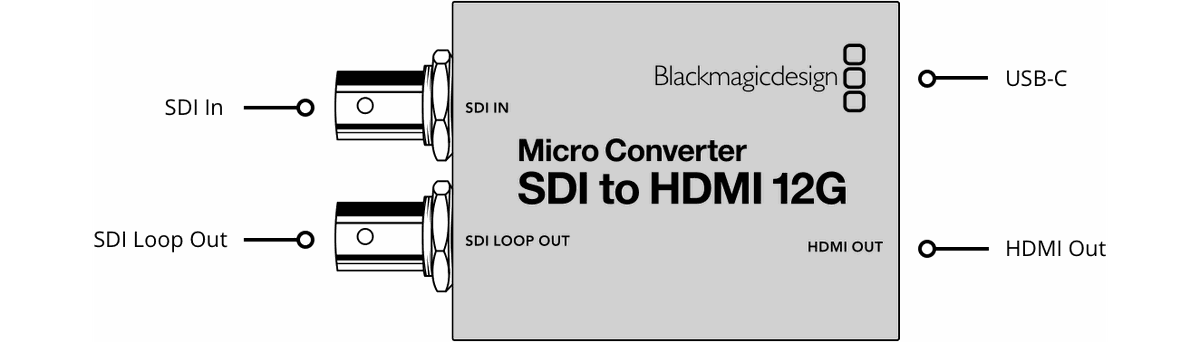

An SDI loop output passes the incoming signal through to the next device in the chain, and SDI runs at 270Mb, 1.5G, 3G, 6G and 12G rates for SD, HD and Ultra HD. The HDMI output is a full-size Type A connector, and the converter ships with its own power supply. Its machined shell mounts behind a monitor, on a rig or in a rack panel.
