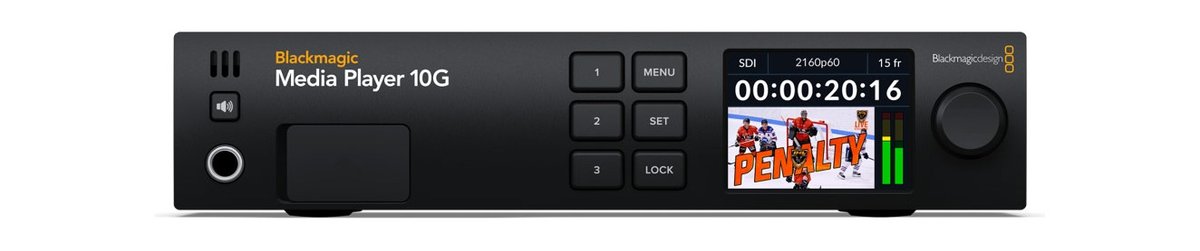

Blackmagic Media Player 10G

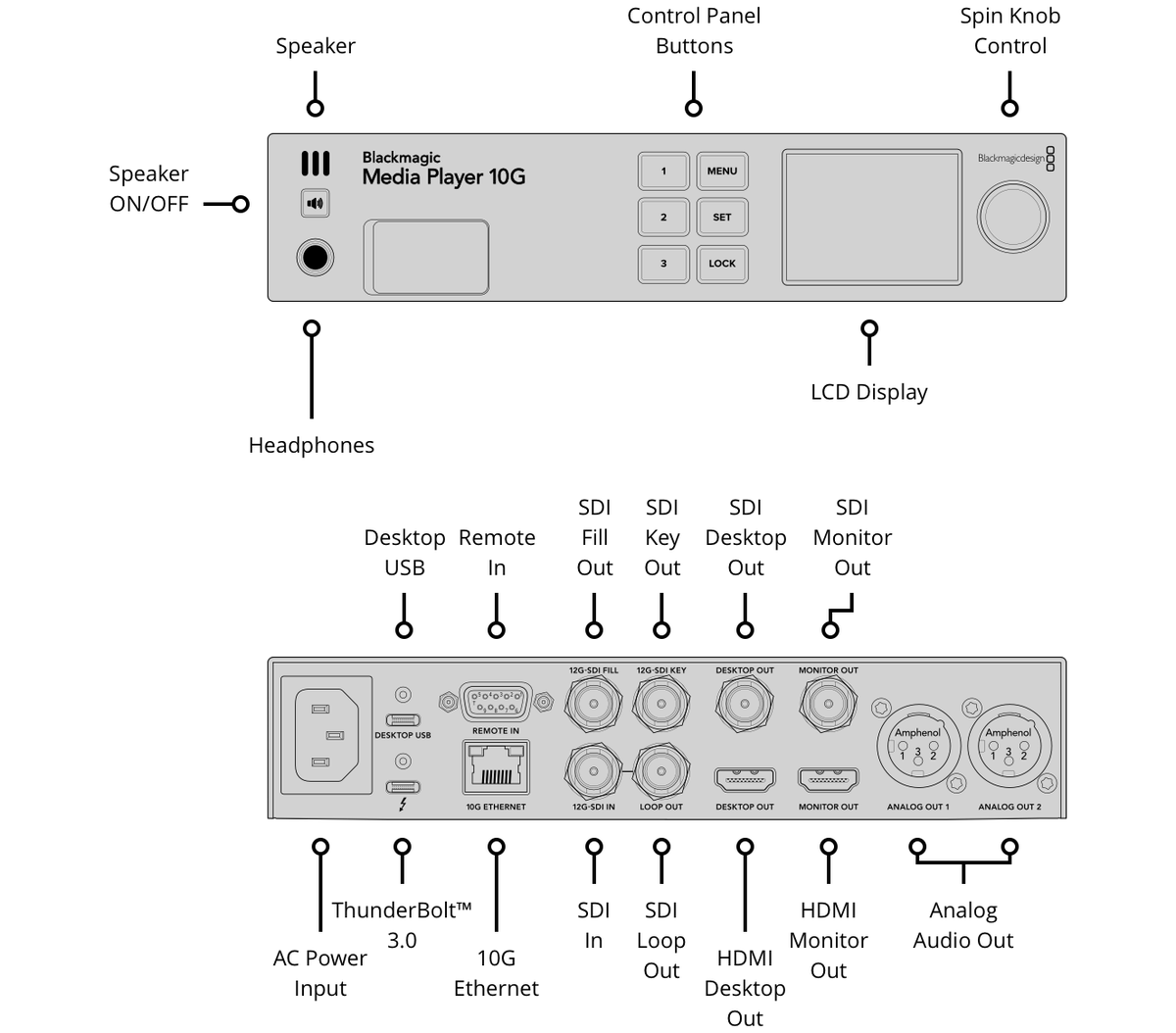

The Blackmagic Media Player 10G is a capture and playback device for live production and broadcast replay, connecting to a Mac, Windows or Linux computer over Thunderbolt. It captures 12G-SDI and plays back over dual 12G-SDI outputs configured for fill and key, so graphics and clips key cleanly into a program feed. A loop output and HDMI output round out the video connections, with 16 channels of embedded SDI audio in SD and HD.

Built-in 10G Ethernet lets an operator run DaVinci Resolve 19 as a media player and replay system for live and broadcast work, all over a single Thunderbolt link. XLR connectors provide analog audio out, and the box also carries USB-C and RJ-45. SDI runs at 270Mb, 1.5G, 3G, 6G and 12G rates, covering everything from legacy SD to Ultra HD.
