Blackmagic UltraStudio Mini Recorder 12G
UltraStudio Mini Recorder 12G brings a 12G-SDI or HDMI 2.0 source into a Thunderbolt 4 computer at up to 2160p60, covering SD and HD broadcast work as well as Ultra HD. The SDI loop output passes the incoming signal straight through, so a monitor or a second device can sit downstream of the capture without a separate distribution amplifier.
It runs on Apple silicon Macs, Windows and Linux, and takes its power from the Thunderbolt cable at 15 W. Sixteen channels of embedded audio come in on SDI and eight on HDMI, and the box ships with a welcome wallet carrying the QR code for the software download. Blackmagic part number BMD-BDLKULSDZMINREC12G.

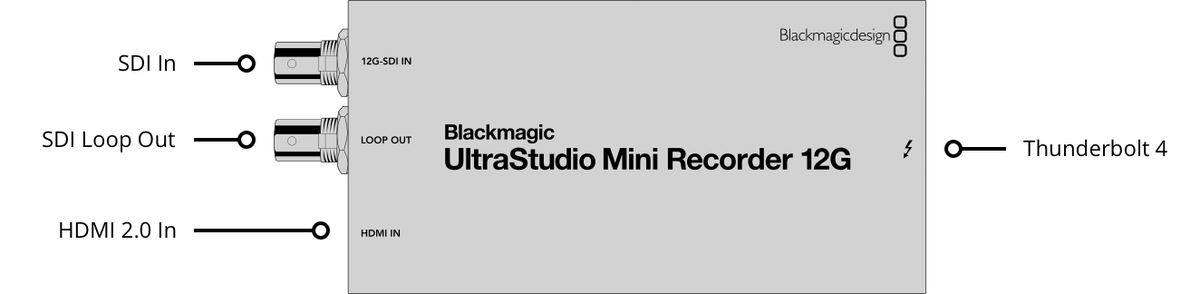

| Type | Thunderbolt capture device, input only |
|---|---|
| SDI Input | 1 x 12G-SDI video input |
| SDI Loop Output | 1 |
| HDMI Input | 1 x HDMI 2.0 |
| Maximum Format | 2160p60 |
| Computer Interface | Thunderbolt 4 (Apple silicon Macs, Windows and Linux) |
| Embedded Audio | 16 channels on SDI input, 8 channels on HDMI input |
| Power Usage | 15 W, powered via Thunderbolt cable |
| Included | UltraStudio Mini Recorder 12G, welcome wallet with QR code for software download |
| Part Number | BMD-BDLKULSDZMINREC12G |
