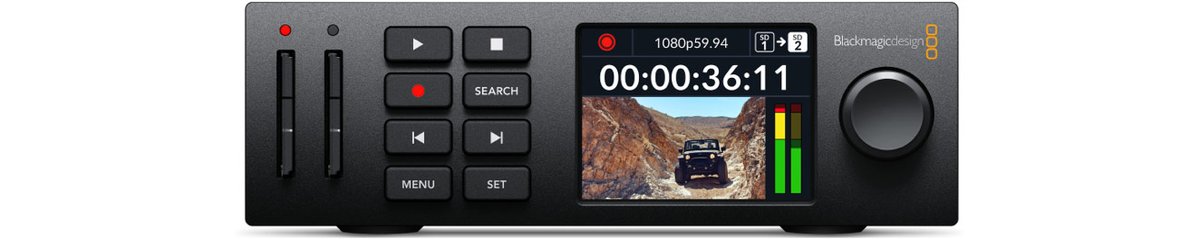

Blackmagic Hyperdeck Studio HD Mini

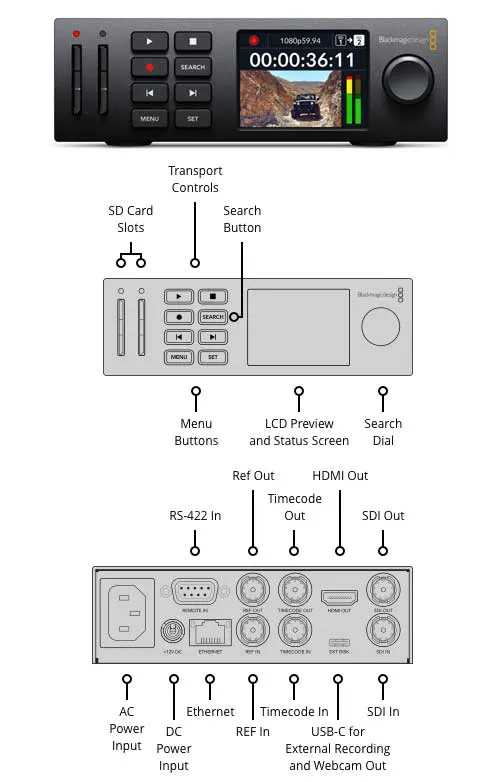

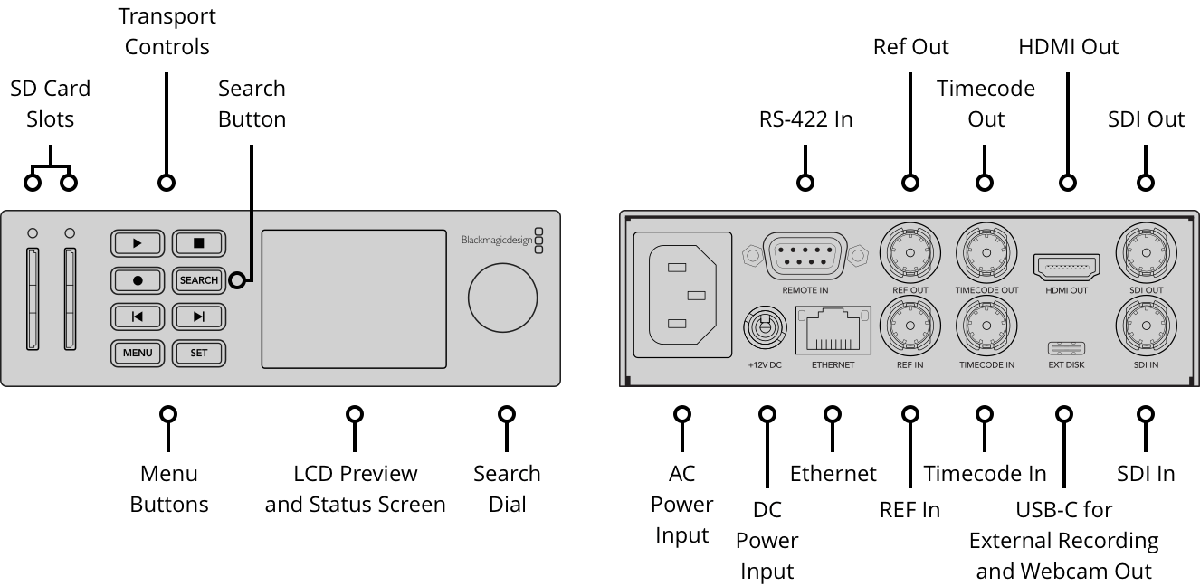

The HyperDeck Studio HD Mini is the smallest deck in the HyperDeck Studio range, built on the Teranex Mini form factor so three units rack across a single rack unit. It records H.264, ProRes or DNxHD files to SD/UHS-II cards or an external USB disk across SD and HD standards up to 1080p60. A single 3G-SDI input and output plus an HDMI output handle the video, and built-in sync and timecode generators keep it locked to the rest of a facility.

Two SD card slots allow continuous recording by rolling from one card to the next, and a 2.2-inch LCD shows status and thumbnails. Both AC and DC power inputs make it usable in a rack or on battery in the field. At one-third rack width and 1 RU high, it packs broadcast deck control into a very small footprint.
