Blackmagic UltraStudio Mini Monitor 12G

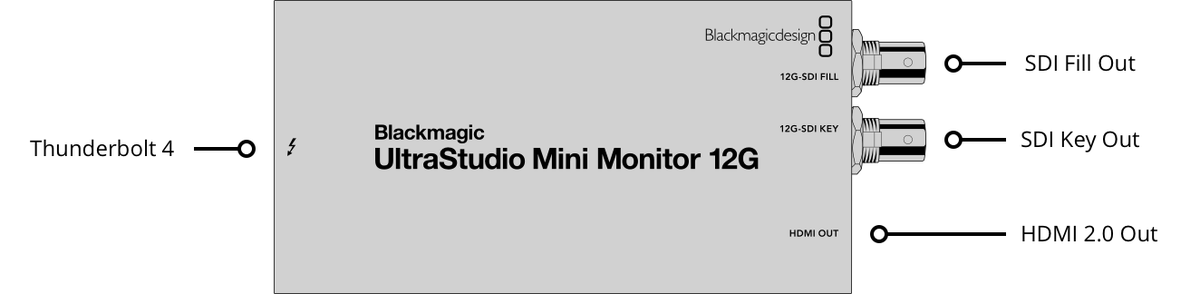

UltraStudio Mini Monitor 12G is the playback half of the Mini 12G range, driving broadcast displays from DaVinci Resolve or a graphics application at up to 2160p60. The two 12G-SDI outputs work as a fill and key pair, so an alpha channel coming out of graphics software becomes a real key signal for a downstream switcher rather than a flattened image.

An HDMI 2.0 output runs alongside for a television or projector, and everything travels over one Thunderbolt 4 connection on Apple silicon Macs, Windows and Linux. Power comes from the same cable at 15 W. Blackmagic part number BMD-BDLKULSDZMINMON12G.
