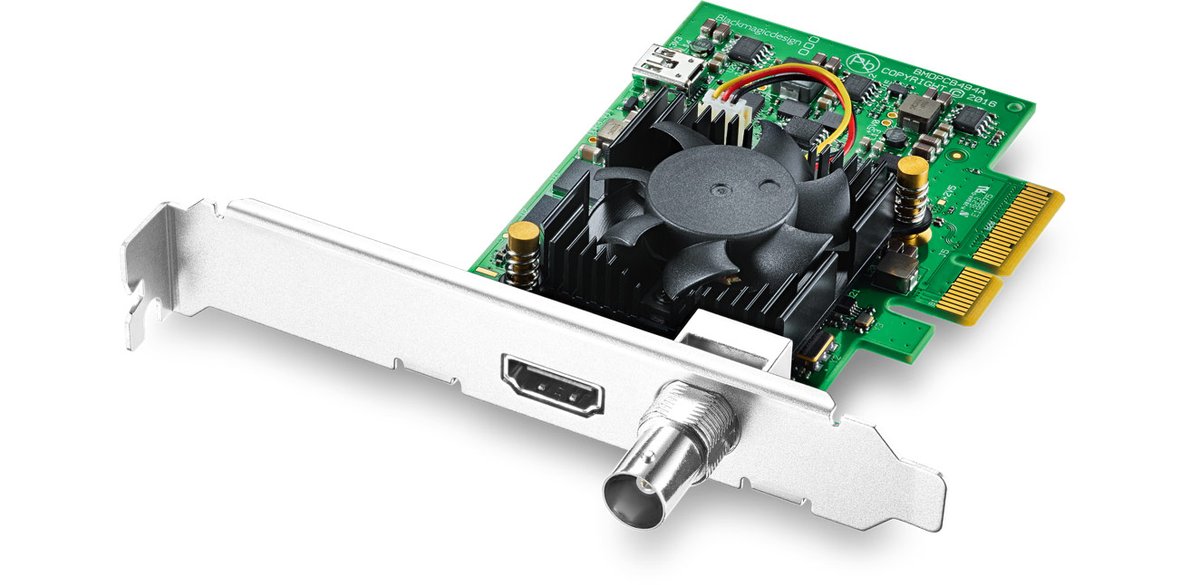

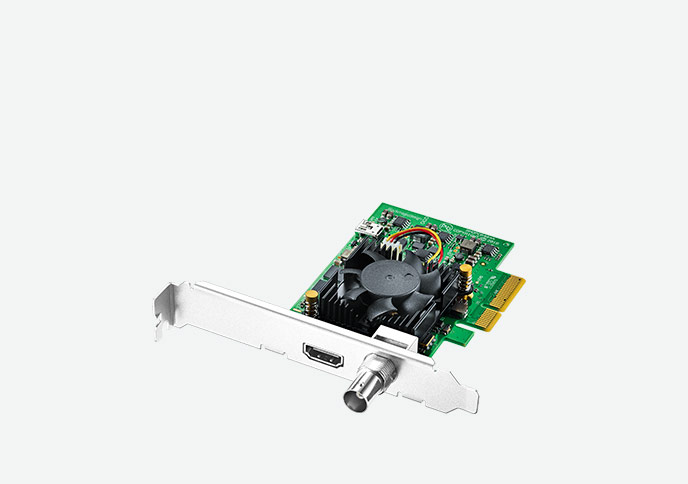

Blackmagic DeckLink Mini Monitor 4K

The DeckLink Mini Monitor 4K takes the same low profile playback idea up to Ultra HD. A single 10-bit SDI output switches across SD, HD and Ultra HD, and the HDMI 2.0a output carries the same picture to a consumer or reference display, so an Ultra HD grading suite can be driven from a half height slot in a workstation that has no room for a full length card.

Ultra HD runs to 2160p30 and 4K DCI to 25p, with HDR static metadata packing plus HLG and PQ transfer characteristics on both outputs. Sixteen channels of audio embed on SDI and eight on HDMI. The card needs a four lane generation 2 PCI Express slot and drops into 4, 8 and 16 lane slots on Mac, Windows and Linux, with the driver bundle and in-driver firmware updates that the rest of the DeckLink range uses.
