Blackmagic HyperDeck Extreme 4K HDR

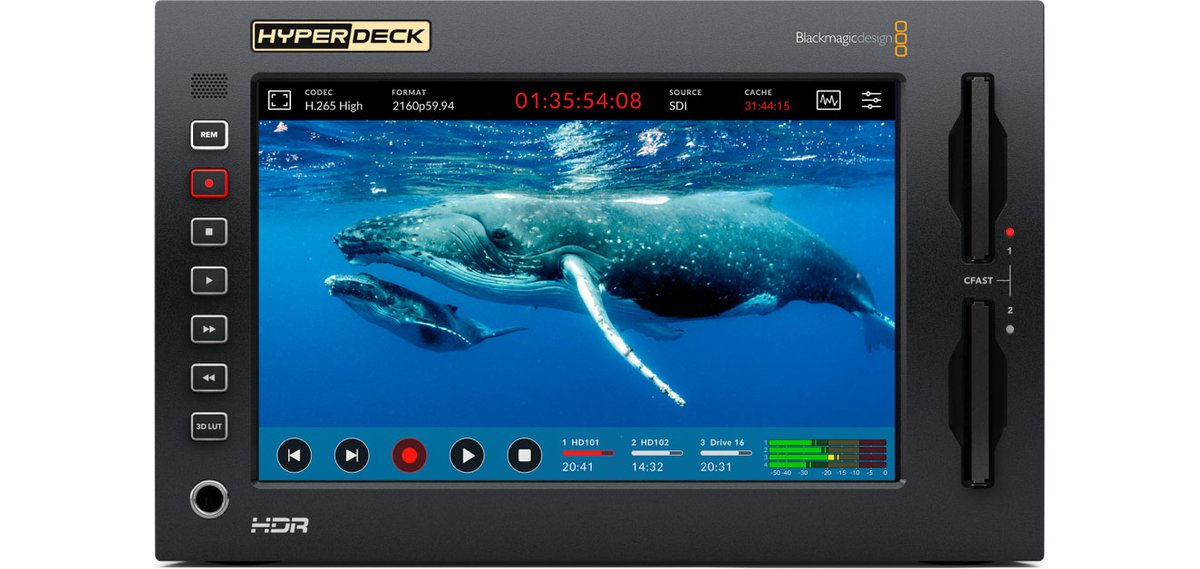

The HyperDeck Extreme 4K HDR is an Ultra HD broadcast deck built around a large 7 inch touchscreen. It records and plays H.265 and ProRes files across every SD, HD, and Ultra HD standard up to 2160p60, and the bright 2000-nit HDR display doubles as a monitor with scopes for waveform, vectorscope, and histogram so you can judge signal quality right on the unit. An upgradable cache and deep codec support make it equally at home as a master recorder or a playout deck.

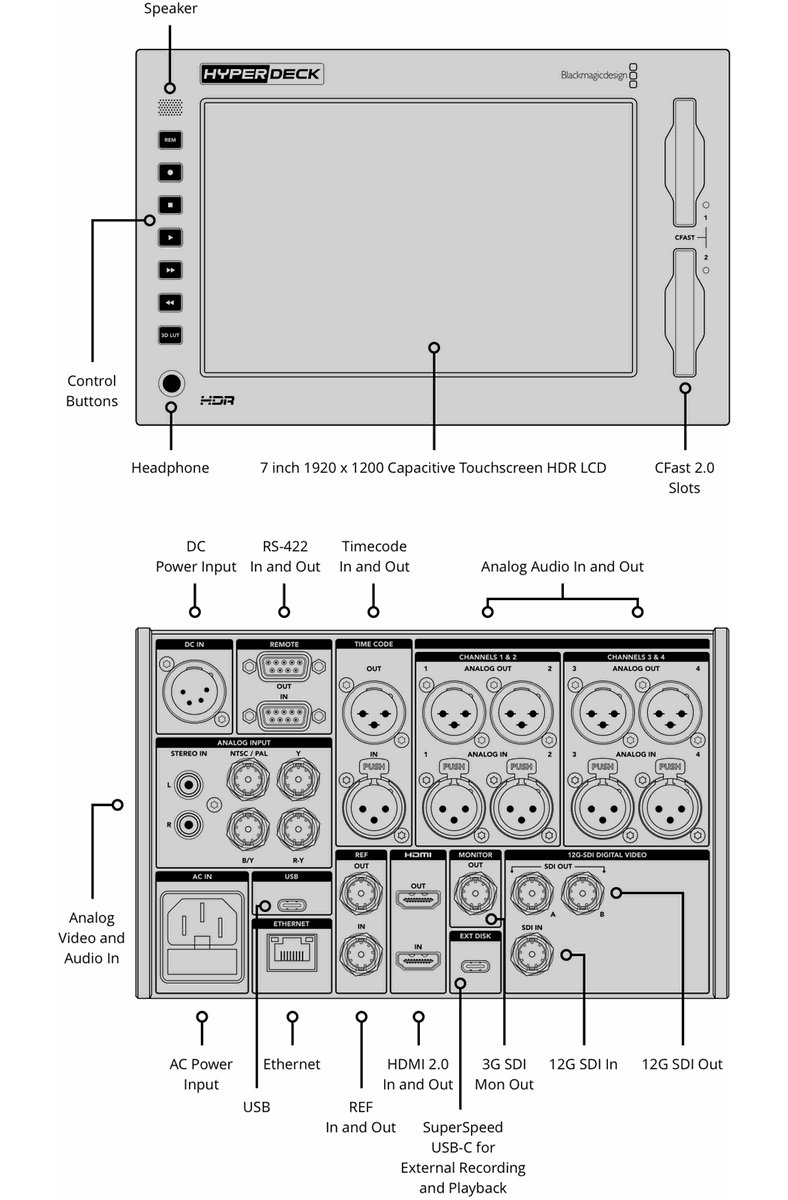

Connections span SDI, HDMI, and analog video, with 12G-SDI on the SDI side and component and composite analog inputs for bringing in older sources. Audio runs on four channels of balanced XLR plus two channels of unbalanced RCA. A USB-C 3.1 Gen 2 port up to 10Gb/s records to external drives. Supported codecs include ProRes, DNxHD and DNxHR, H.265, and H.264. Blackmagic part number BMD-HYPERD/RSTEX4KHDR.

  • Storage Temperature-20° to 60° C (-4° to 140° F)
  • SDI Video Inputs1
  • SDI Video Outputs3 (12G-SDI A and B plus 3G-SDI Monitor Out)
  • Analog Video OutputsNone
  • Timecode Connections1 x XLR in and 1 x XLR out.
Part NumberBMD-HYPERD/RSTEX4KHDR
Video Inputs1
SDI Video Outputs3 ( A and B plus 3G-SDI Monitor Out)
SDI Rates270Mb, 1.5G, 3G, 6G, 12G.
2.0 Video Inputs1
HDMI 2.0 Video Outputs1
Analog Video Inputs1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
Analog Video OutputsNone
Analog Audio Inputs4 Channels of professional balanced analog audio via connectors and 2 channels of consumer unbalanced via RCA connectors.
Built in SpeakerMono
Screen7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
Timecode Connections1 x XLR in and 1 x XLR out.
Reference InputTri-Sync or Black Burst.
SDI Audio Inputs64 channels embedded audio.
SDI Audio Outputs64 channels embedded audio.
HDMI Audio Inputs8 channels embedded audio.
HDMI Audio Outputs8 channels embedded audio.
Remote Control1 x RS-422 In, 1 x RS-422 Out.
Recorder ConfigurationVia user interface or Blackmagic HyperDeck Ethernet Protocol.
Ethernet10Gb/s
External Recording1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
Computer Interface1 x USB-C for software updates.
SD Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K DCI Video Standards1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI; 1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
Ultra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
SDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
SDI Metadata SupportHD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Audio SamplingTelevision standard 24-bit, 48 kHz sample rate.
Video Sampling YUV
Color Precision
Color SpaceREC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
Multi Rate SupportAuto detection of SD, HD, 6G-SDI, and 12G-SDI.
Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Cache or Internal RecordingSlot for optional M.2 PCIe NVMe card for cache recording or internal recording. Slot supports 60mm 80mm and 110mm cards up to 16Gb/s.
Media2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, and Ultra HD.
Media TypeCFast card and external USB-C flash drives.
Media FormatCan format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Video CodecsProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10-bit, H.265 Medium 4:2:0 10-bit, H.265 Low 4:2:0 10-bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10-bit, H.264 High 4:2:0 8-bit, H.264 Medium 4:2:0 8-bit, H.264 Low 4:2:0 8-bit for all formats up to 1080p60.
Audio CodecsAAC 2 Channels. PCM 2, 4, 8, 16, 32 or 64 Channels.
ScopesWaveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
Viewing ModesPicture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
Computer CaptureNone
Built in Control PanelIntegrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
External ControlRS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Software IncludedBlackmagic OS; Blackmagic HyperDeck Setup
Internal Software UpgradeLoaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating SystemsMac 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows 11
DisplaysBuilt in LCD for video, audio and timecode monitoring and menu settings.
Power Supply1 x Internal 100 - 240V AC. 1 x 4 pin XLR 12V DC IN for external power or battery use.
Power Usage190W max.
Physical Installation3 rack units height, half rack width.
Operating Temperature0° to 40° C (32°to 104° F)
Storage Temperature-20° to 60° C (-4° to 140° F)
Relative Humidity0% to 90% non-condensing
SourceFull specifications on blackmagicdesign.com
InfoComm 2022: Blackmagic Design Intros the HyperDeck Extreme 4K HDR
HyperDeck Extreme 4K HDR Announced at NAB 2022
2items in the box
  • HyperDeck Extreme 4K HDR
  • Welcome wallet with QR code for software download
