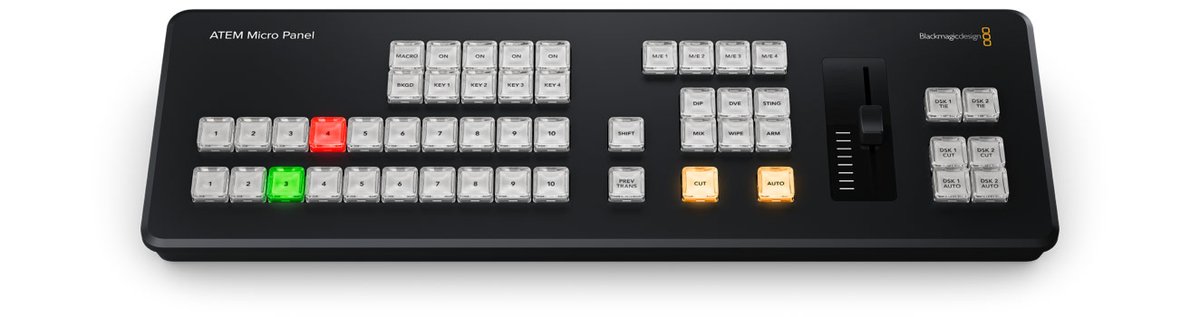

Blackmagic ATEM Micro Panel
The ATEM Micro Panel gives ATEM Software Control a real hardware surface without the bulk of a broadcast desk. It carries the same panel design as Blackmagic's ATEM Advanced Panels, with high-end backlit buttons and a low-profile manual transition fader, in a shape small enough to travel. Two rows of ten tri-color buttons handle program and preview, and a shift button reaches up to 20 sources, while dedicated upstream and downstream keyer buttons, transition buttons, macros and four M/E select buttons let it drive anything from an ATEM Mini to a Constellation.

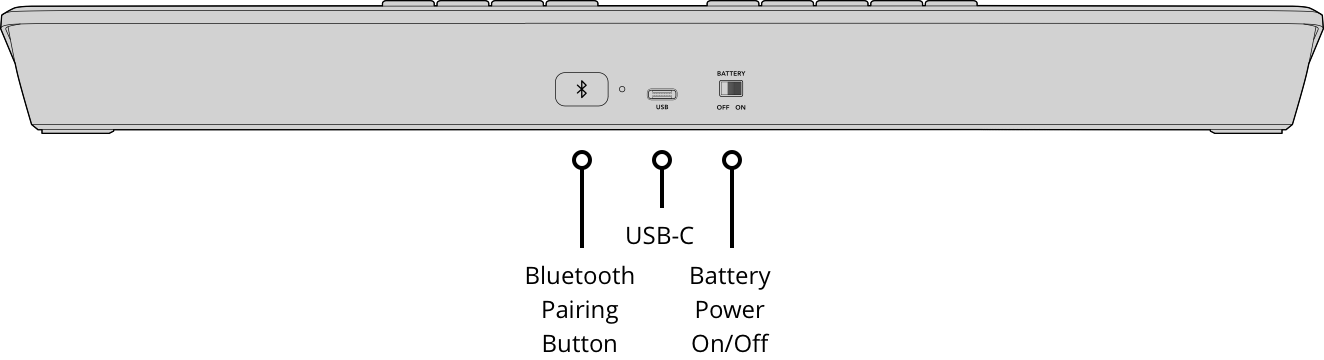

Connect it to the computer running ATEM Software Control over USB-C, or cut the cable and work wireless over Bluetooth 5.1 LE, where the internal battery runs at least six hours of normal use. The same USB-C port charges the battery and can supply external power. It draws only 3W and ships with a welcome wallet holding the software download code.
| Function | Hardware control panel for ATEM Software Control |
|---|---|
| Compatibility | Works with all ATEM switcher models |
| Connection | USB-C or Bluetooth 5.1 LE |
| Crosspoints | 2 rows of 10, shift to 20 sources, tri-color LED |
| Transitions | CUT, AUTO, DIP, DVE, STINGER, MIX, WIPE, manual fader |
| Keyers | 4 upstream, 2 downstream, 4 M/E select buttons |
| Power | Internal battery (min 6 hours), USB-C charging, 3W max |
| Dimensions | 16.14 x 5.35 x 1.63 in |
| Included | Micro Panel, welcome wallet with software download code |
