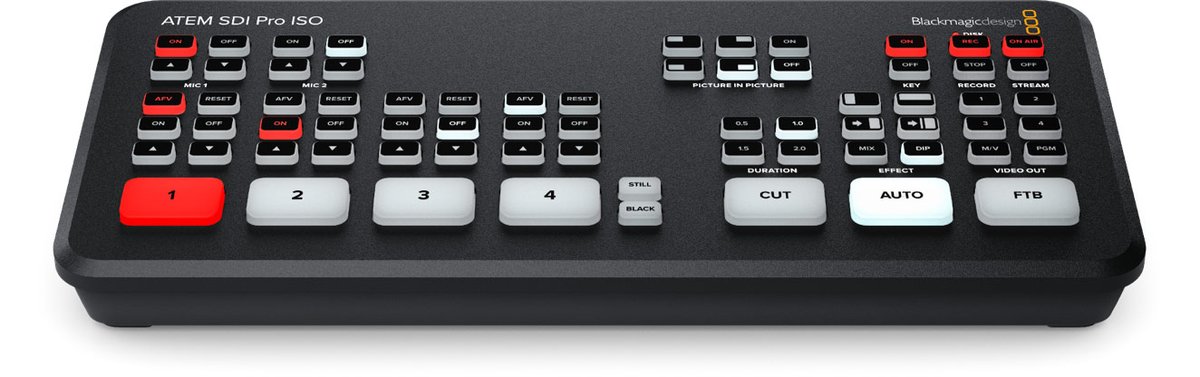

Blackmagic ATEM SDI Pro ISO

The ATEM SDI Pro ISO is a compact SDI live production switcher with four SDI inputs and two SDI outputs, and every input carries a standards converter and re-sync so cameras and playback sources lock in cleanly. Like the rest of the Pro ISO line it records five separate H.264 streams in real time, capturing each source plus the program, and saves a DaVinci Resolve project file so the finished show can be reopened and re-edited later.

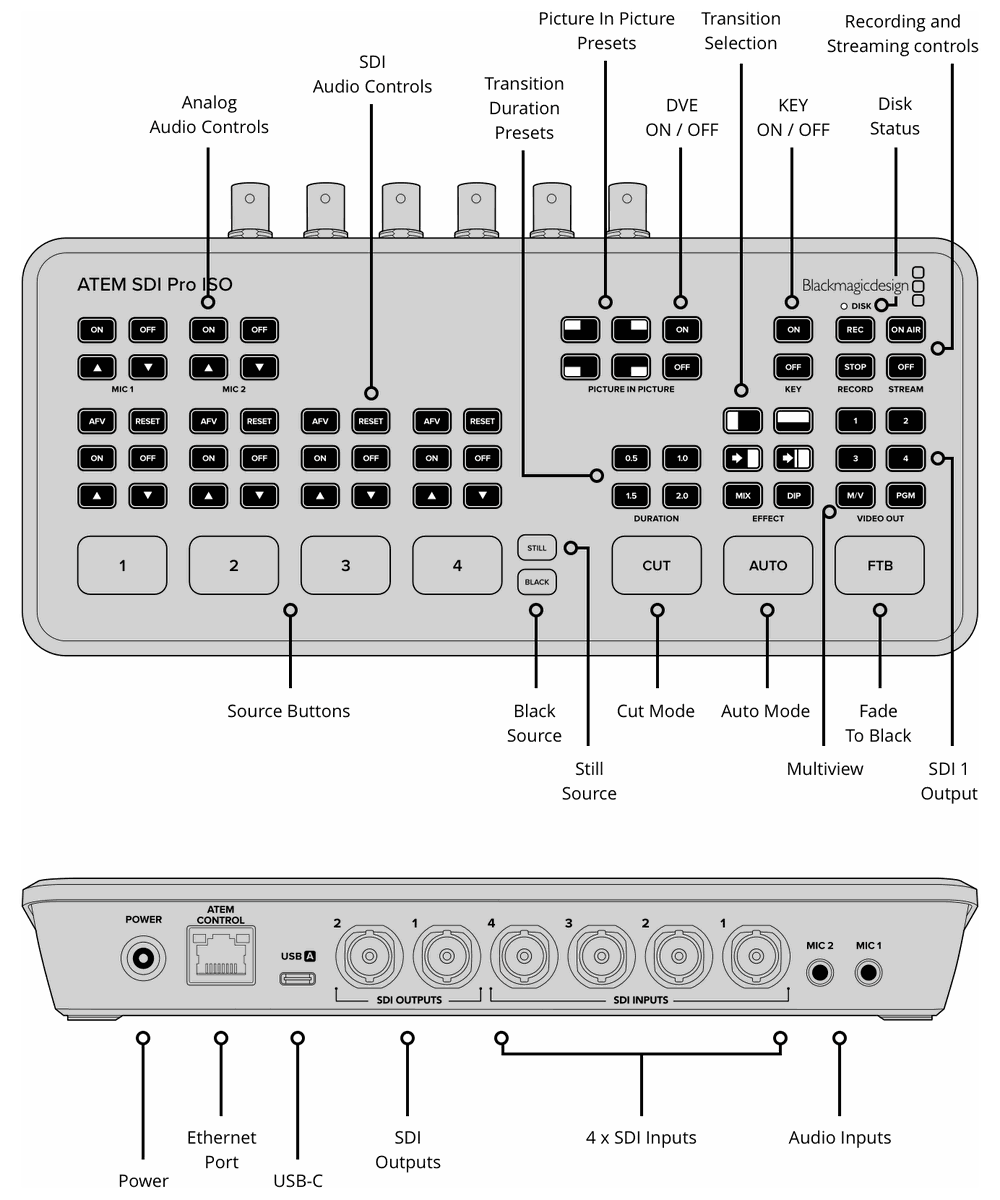

The switcher adds transitions, a DVE for picture-in-picture, and green-screen chroma key, along with a 20-still media pool for titles and a full 1080 HD USB webcam output. Audio is recorded as six 2-channel pairs to separate 24-bit 48kHz WAV files, drawn from two analog stereo inputs and four SDI embedded pairs. Front panel control, USB-C 3.1 and 10/100/1000 Ethernet round it out, and it ships as Blackmagic part number BMD-SWATEMMXEPBPRISO.
