Blackmagic ATEM Monitoring Rack Panel 20

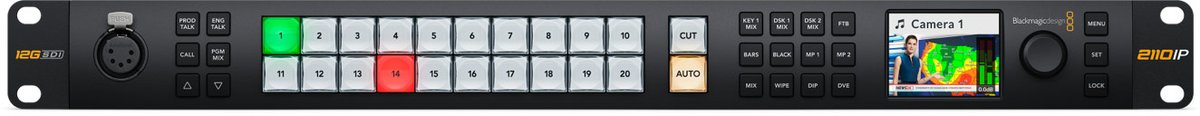

The ATEM Monitoring Rack Panel 20 is two tools in one 1RU box: a hardware ATEM control panel and a SMPTE ST-2110 IP to SDI and HDMI monitoring converter. Twenty buttons drive a local ATEM switcher, a front-panel 5-pin XLR handles talkback, and the built-in HD LCD shows the selected feed so you can confirm a signal without a separate monitor. Two redundant 10G Ethernet connections pull ST-2110 IP video off the network, with SMPTE ST 2022-7 redundant stream delivery, and convert it out to two 12G-SDI outputs and an HDMI output.

The rear carries the two 10G RJ-45 2110 ports plus a separate 1G control port for the switcher and NMOS, an HDMI 2.0 input, the two 12G-SDI outputs that handle HD and Ultra HD up to 2160p60 at 10-bit 4:2:2, and the HDMI output. Redundant power comes from two internal 100-240V AC supplies on IEC C14 inlets, so a dropped cord does not take the rack offline. It installs in a single rack unit and ships with a welcome wallet holding the software download code.
