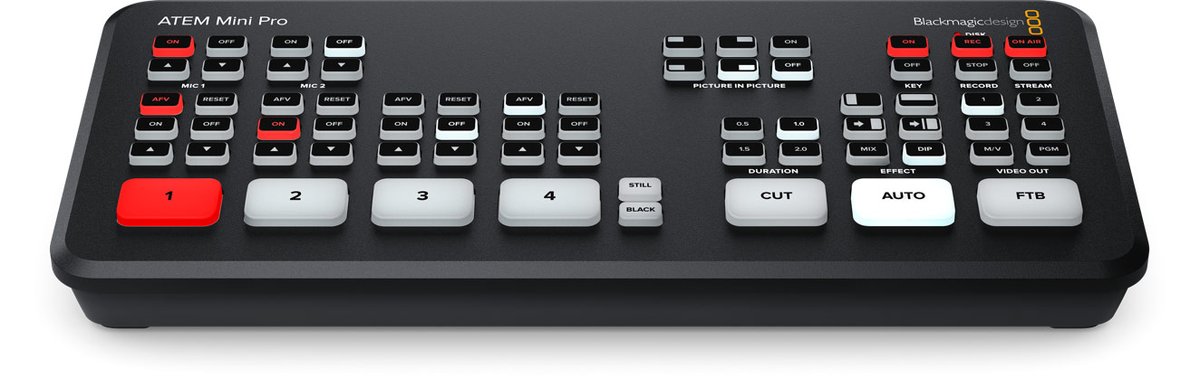

Blackmagic ATEM Mini PRO Switcher

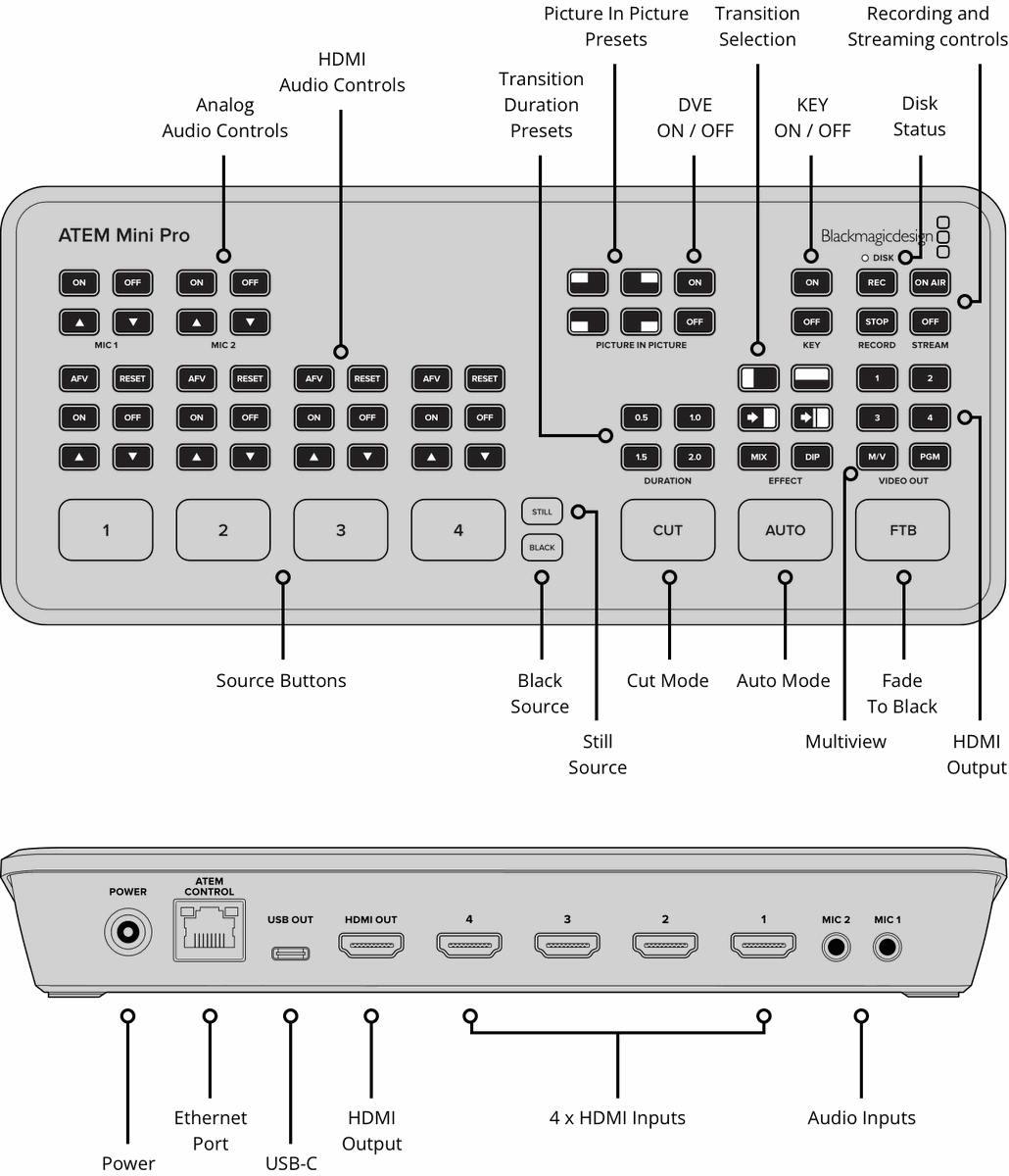

The ATEM Mini Pro is a compact HDMI live production switcher for multi-camera streams, presentations, and events. Four HDMI inputs feed a switcher with an audio mixer, 2D DVE, transitions, and green screen chroma key, and each input has its own converter so you can mix and match 720p, 1080i, and 1080p sources at 24, 30, or 60 frames. A media pool holds 20 stills for titles and graphics, and a built in multiview shows all four cameras plus media, preview, and program at once.

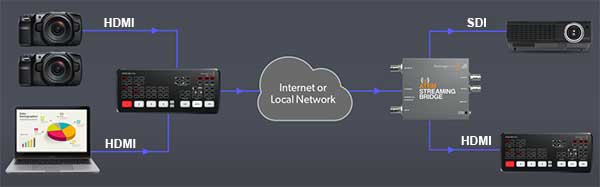

The Pro model adds a hardware streaming engine that pushes directly to YouTube Live, Facebook, Twitch, and more over Ethernet using RTMP or SRT, with on-screen status for streaming, recording, and audio. It records the program as H.264 straight to a USB flash disk, and the USB-C port also serves webcam out, software control, and updates. The unit runs on 12V DC. Blackmagic part number BMD-SWATEMMINIBPR.
- Media Pool Still Image Capacity20 with fill and key.
- Storage Temperature-10° to 60° C (14° to 140° F)
- Total Video Inputs4
- Total Outputs2
- Total Aux Outputs1
| Part Number | BMD-SWATEMMINIBPR |
|---|---|
| Total Video Inputs | 4 |
| Total Outputs | 2 |
| Total Aux Outputs | 1 |
| Total Audio Inputs | 2 x 3.5mm stereo mini jack. |
| Total Audio Outputs | None, embedded audio only. |
| Timecode Connection | None |
| HDMI Video Inputs | 4 x type A, HD switchable. 2 channel embedded audio. |
| Video Input Re-Sync | On all 4 HDMI inputs. |
| Frame Rate and Format Converters | On all 4 HDMI inputs. |
| HDMI Program Outputs | 1 |
| Ethernet | Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection. |
| Computer Interface | 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. |
| HD Video Input Standards | 720p50, 720p59.94, 720p60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080i50, 1080i59.94, 1080i60 |
| HD Video Output Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Video Streaming Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | None |
| Video Sampling | YUV |
| Color Precision | 10-bit |
| Color Space | Rec 709 |
| HDMI Input Resolutions from Computers | 1280 x 720p 50Hz, 59.94Hz and 60Hz; 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz; 1920 x 1080i 50, 59.94Hz and 60Hz |
| Colorspace Conversion | Hardware based real time. |
| Upstream Keyers | 1 |
| Downstream Keyers | 1 |
| Advanced Chroma Keyers | 1 |
| Linear/Luma Keyers | 2 |
| Transition Keyer | DVE only. |
| Total Number of Layers | 5 |
| Pattern Generators | 1 |
| Color Generators | 2 |
| DVE with Borders and Drop Shadow | 1 |
| Interface | Minimum monitor resolution of 1366 x 768. |
| Audio Mixer | 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
| Analog Input | Unbalanced stereo |
| Analog Input Delay | Up to 8 frames |
| Input Impedance | 1.8k |
| Max Input Level | +6dBV |
| Mic Plug In Power | Available on both 3.5mm mini jack connections. |
| Direct Streaming | Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB-C. |
| Blackmagic Cloud Stream Router | Supports streaming to Stream Router application in Blackmagic Cloud. |
| Direct Recording | 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. |
| Media Format | Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system. |
| Multi View Monitoring | 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters. |
| Multi View Video Standard | HD |
| Media Players | 1 |
| Channels | Fill and key for each Media Player. |
| Media Pool Still Image Capacity | 20 with fill and key. |
| Media Pool Still Image Format | PNG, TGA, BMP, GIF, JPEG and TIFF. |
| Control Panel | Built in control panel. Supports optional hardware panel. ATEM Software Control Panel for Mac and Windows included for free. |
| Control Panel Compatibility | Compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panels, ATEM 2 M/E Advanced Panels, ATEM 4 M/E Advanced Panels plus ATEM Camera Control Panel and ATEM Micro Camera Panel. ATEM can also be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. |
| Control Panel Connection | Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software. |
| Control Panel Included | ATEM Software Control panel included free for Mac and Windows. |
| Software Updates | Using USB or Ethernet connection directly connected to Mac or Windows computers. Includes ATEM Setup Utility |
| Configuration | Most switcher configurations are set in ATEM Software Control. To set an ATEM switcher IP address, use the ATEM Setup Utility with a direct USB connection to the switcher. |
| Operating Systems | Mac 14.0 Sonoma, Mac 15.0 Sequoia or later. Windows 10 and 11. |
| Power Supply | 1 x External 12V power supply. |
| Power Usage | 30W |
| Operating Temperature | 5° C to 40° C (41° - 104° F) |
| Storage Temperature | -10° to 60° C (14° to 140° F) |
| Relative Humidity | 0% to 90% non-condensing |
| Source | Full specifications on blackmagicdesign.com |

- ATEM Mini Pro
- External 12V DC power supply with international socket adapters
