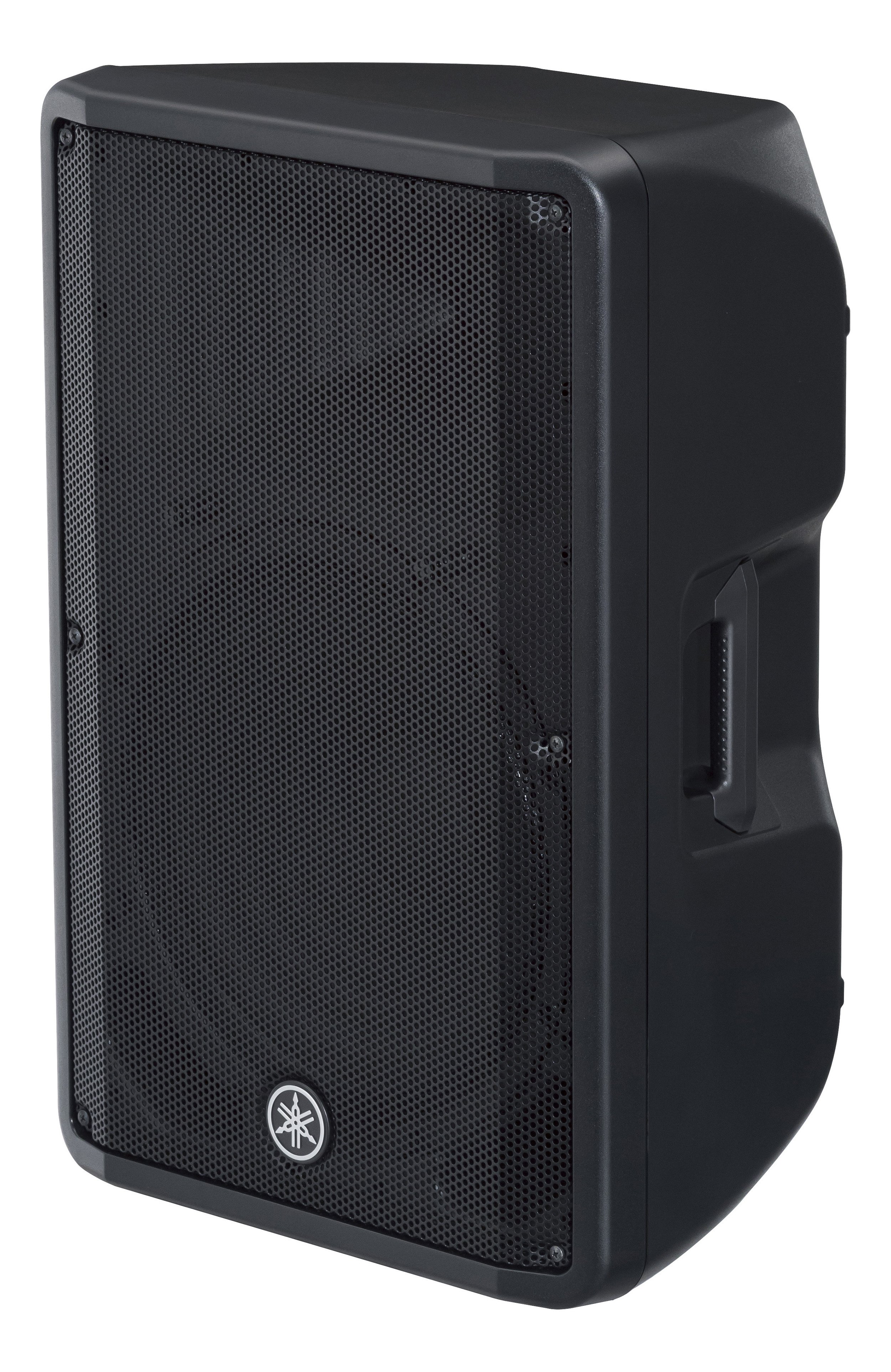

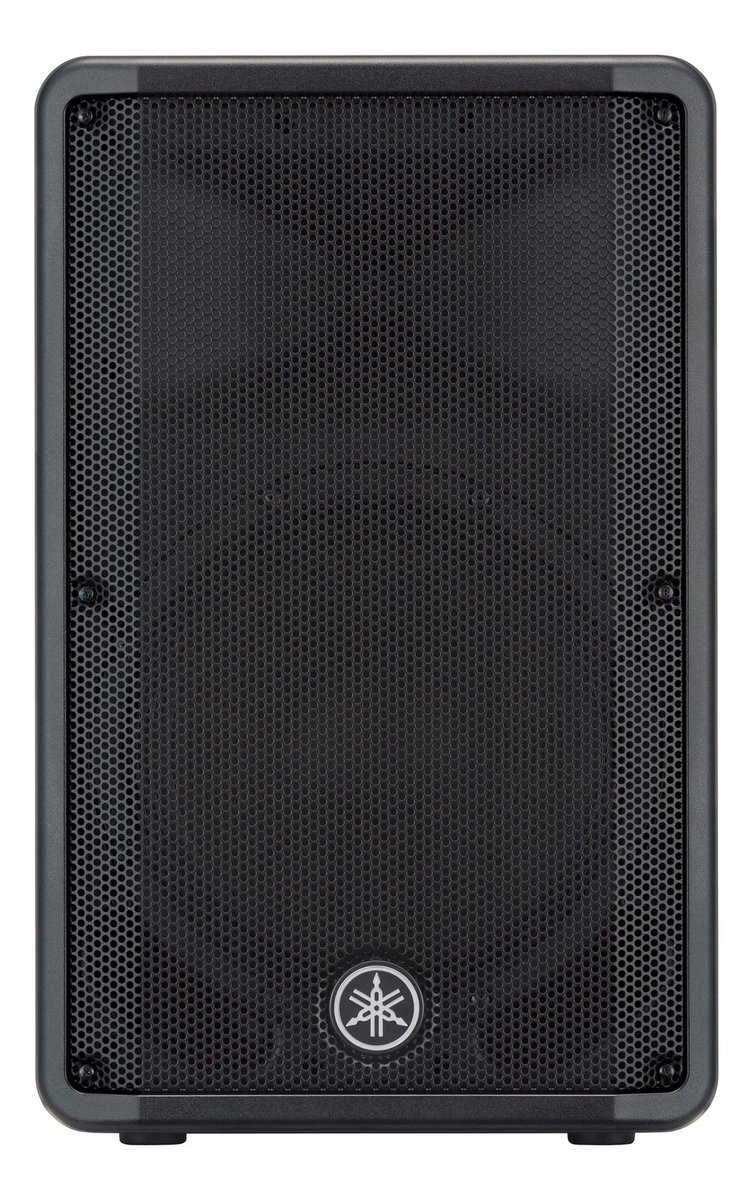

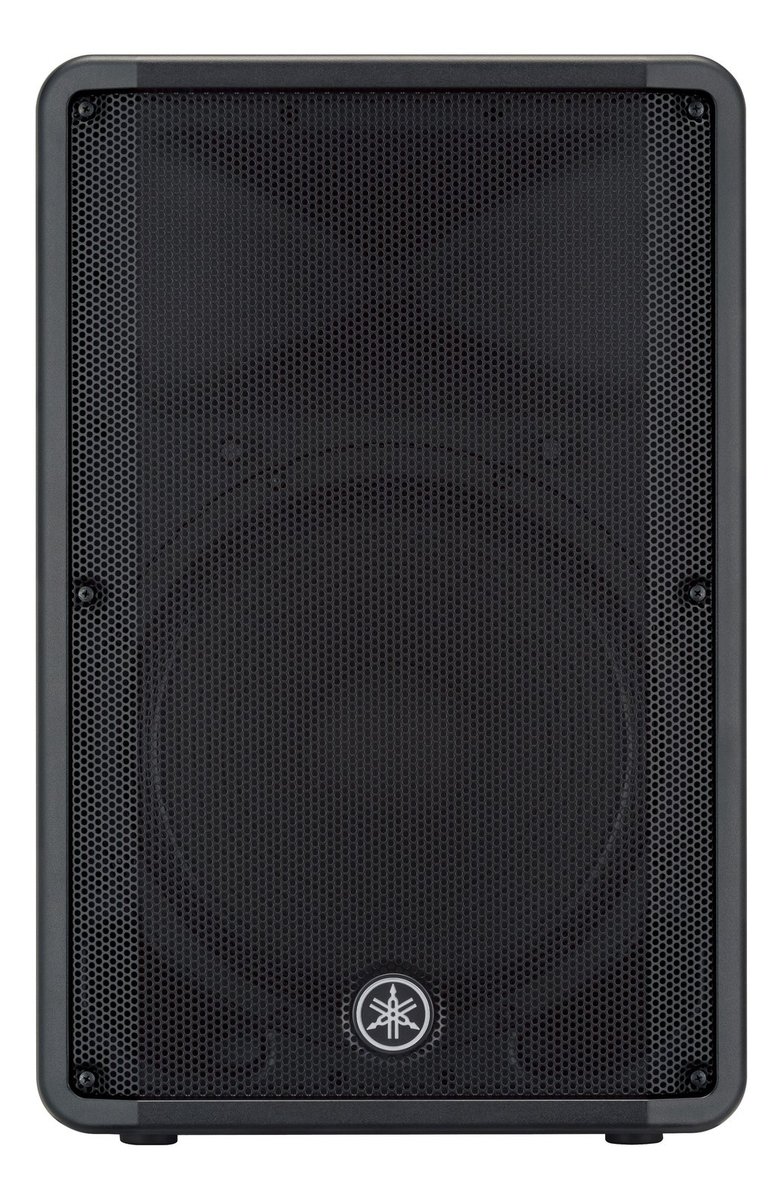

Yamaha DBR Series Powered Loudspeaker

The Yamaha DBR series brings the DSP, amplifier, and transducer technology of the higher-end DSR and DXR lines into a lighter, more affordable powered PA speaker. Each cabinet is a two-way bi-amplified design with a bass-reflex enclosure and a FIR-X crossover, driven by an efficient Class-D amplifier, so a small band or a portable system gets clean, loud coverage from a box one person can lift onto a pole.

Three sizes cover most jobs: the DBR10 (10-inch, 465 W, 129 dB SPL) for monitors and tight rooms, the DBR12 (12-inch, 700 W, 131 dB SPL) as an all-round main, and the DBR15 (15-inch, 1000 W, 132 dB SPL) for larger rooms and more low end. All three share the same integrated mixer with two combo inputs, level and high-pass controls, pole-mount and floor-monitor angles, and rigging points for flying.
