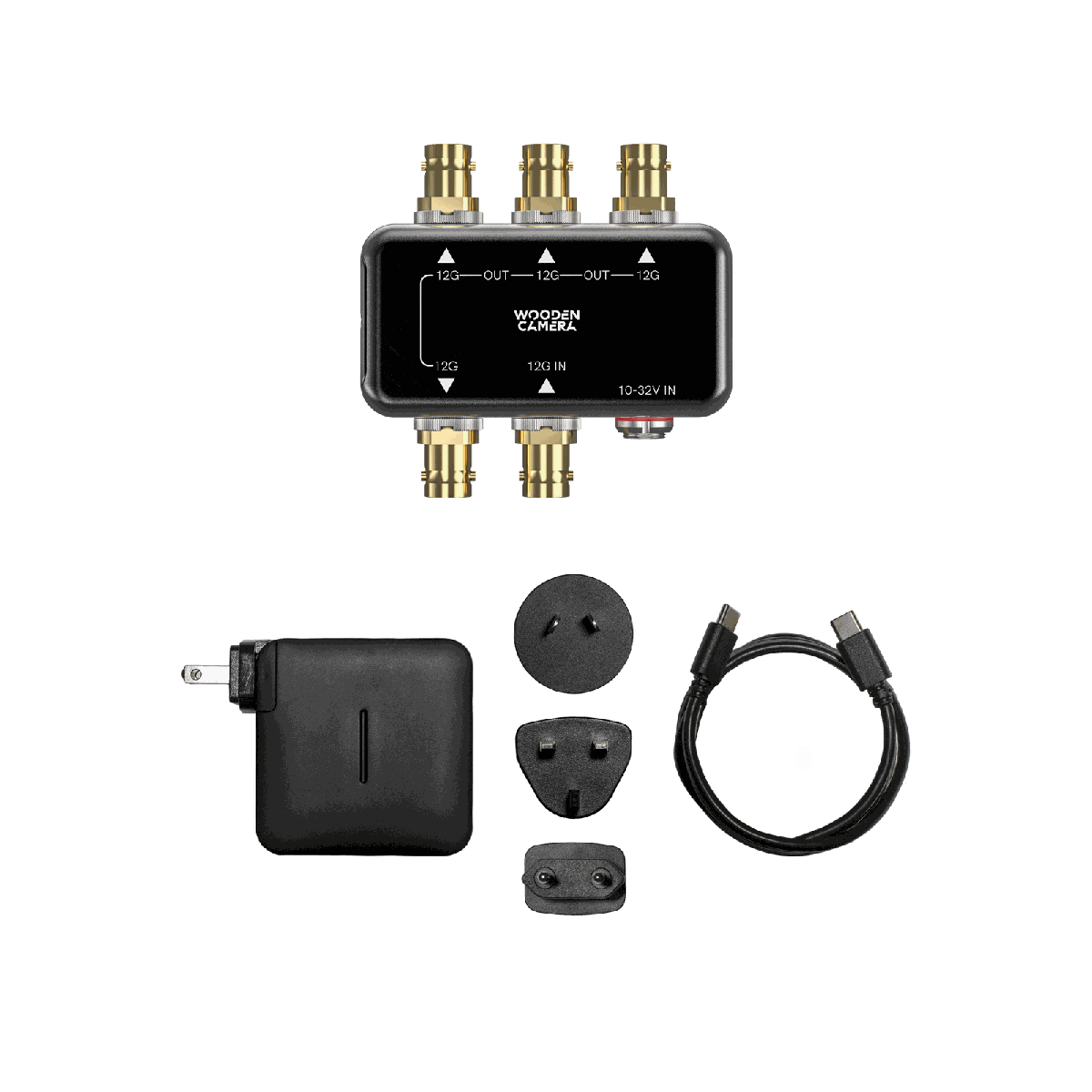

Wooden Camera 4K 12G-SDI Distribution Amplifier

The 4K 12G-SDI Distribution Amplifier is a high-performance signal distribution device designed for broadcast, live production, and professional video environments. It accepts a single 12G-SDI input - electrically isolated from the outputs - and distributes the signal to two or four independent 12G-SDI outputs with no signal loss or degradation. Built-in reclocking and equalization ensure stable, low-jitter transmission over long cable runs.

G&G stocks it in 3 versions: 1x4, 1x4 Kit, 1x2 Kit. The 12G-SDI Splitter (1x4) Kit weighs 321.14 g (0.708 lbs) and measures 80 x 71.3 x 27 mm (3.15 x 2.81 x 1.06 in). It mounts via 1/4"-20, 3/8"-16, M2.5, NATO rail.

Type	Utility
Weight (1x4 Kit)	321.14 g (0.708 lbs)
Dimensions (1x4 Kit)	80 x 71.3 x 27 mm (3.15 x 2.81 x 1.06 in)
Weight (1x4)	95.71 g (0.211 lbs)
Dimensions (1x4)	75 x 71.3 x 23 mm (2.95 x 2.81 x 0.91 in)
Weight (1x2 Kit)	278.5 g (0.61 lbs)
Dimensions (1x2 Kit)	59 x 60.6 x 30.3 mm (2.3 x 2.4 x 1.2 in)
Weight (1x2)	53.07 g (0.12 lbs)
Dimensions (1x2)	54 x 71.7 x 23 mm (2.13 x 2.82 x 2.82 in)
Mounting / Interface	1/4"-20, 3/8"-16, M2.5, NATO rail
Available Versions	1x4, 1x4 Kit, 1x2 Kit
Manufacturer Part Number	A00953, 50-K10052, K10043
