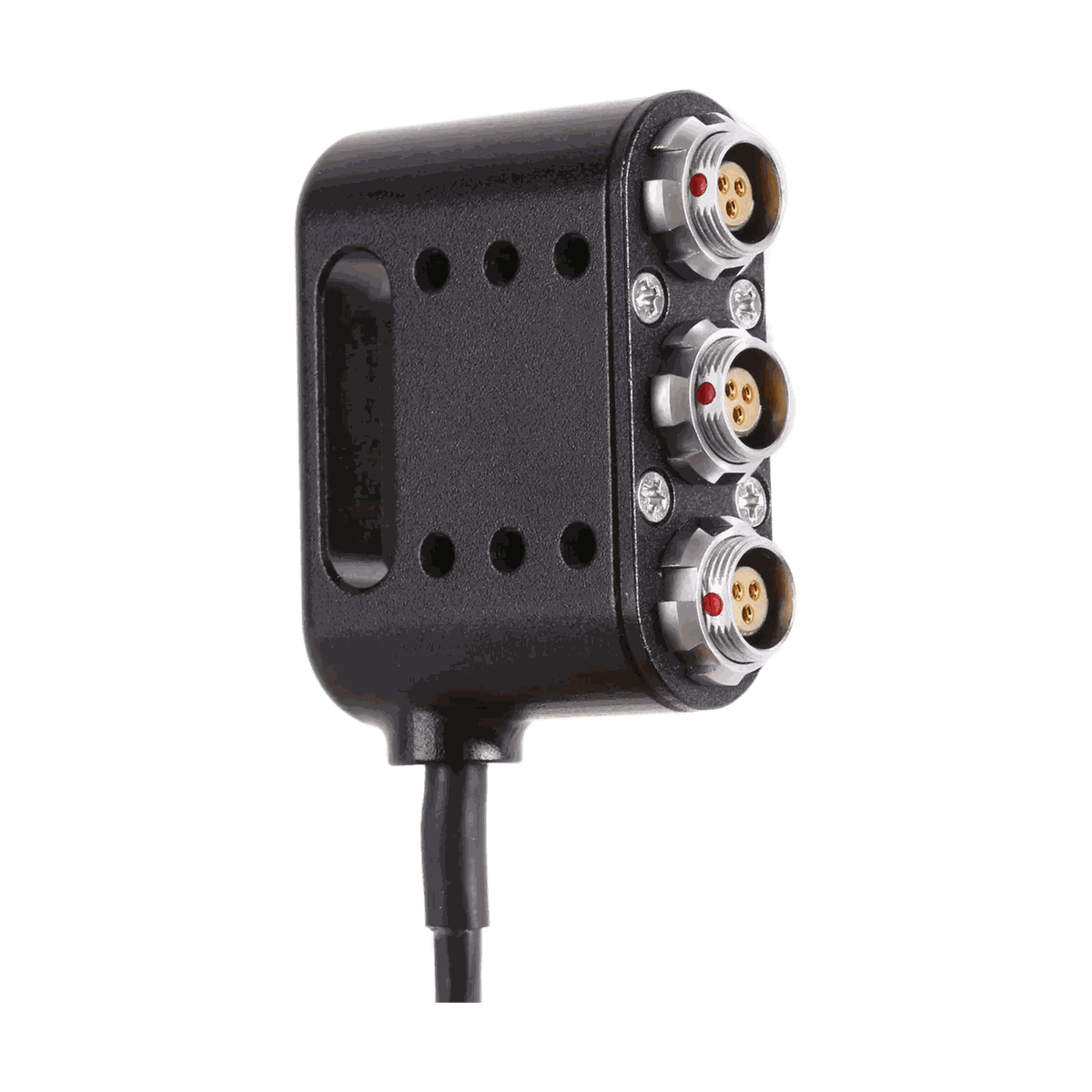

Wooden Camera 1 to 3 Mini Power Splitter (3pin Fischer)

This is the 3pin Fischer version of Wooden Camera's 1 to 3 Mini Power Splitter, converting one male 3pin Fischer connection into three female 3pin Fischer outputs for 24V accessories running off a single camera or block-battery feed. It is passive, with no fuse and no regulation, and carries a recommended maximum load of 5A at 24V.

The connectors in this assembly are not made by Fischer, but are built to the same specifications and are Fischer compatible. Two 1/4"-20 socket cap screws are included for mounting to a camera or accessory, and the M3 hole pattern on the back fits the V-Lock Base Station and Wedge Kit. Cable length is 12 inches.
