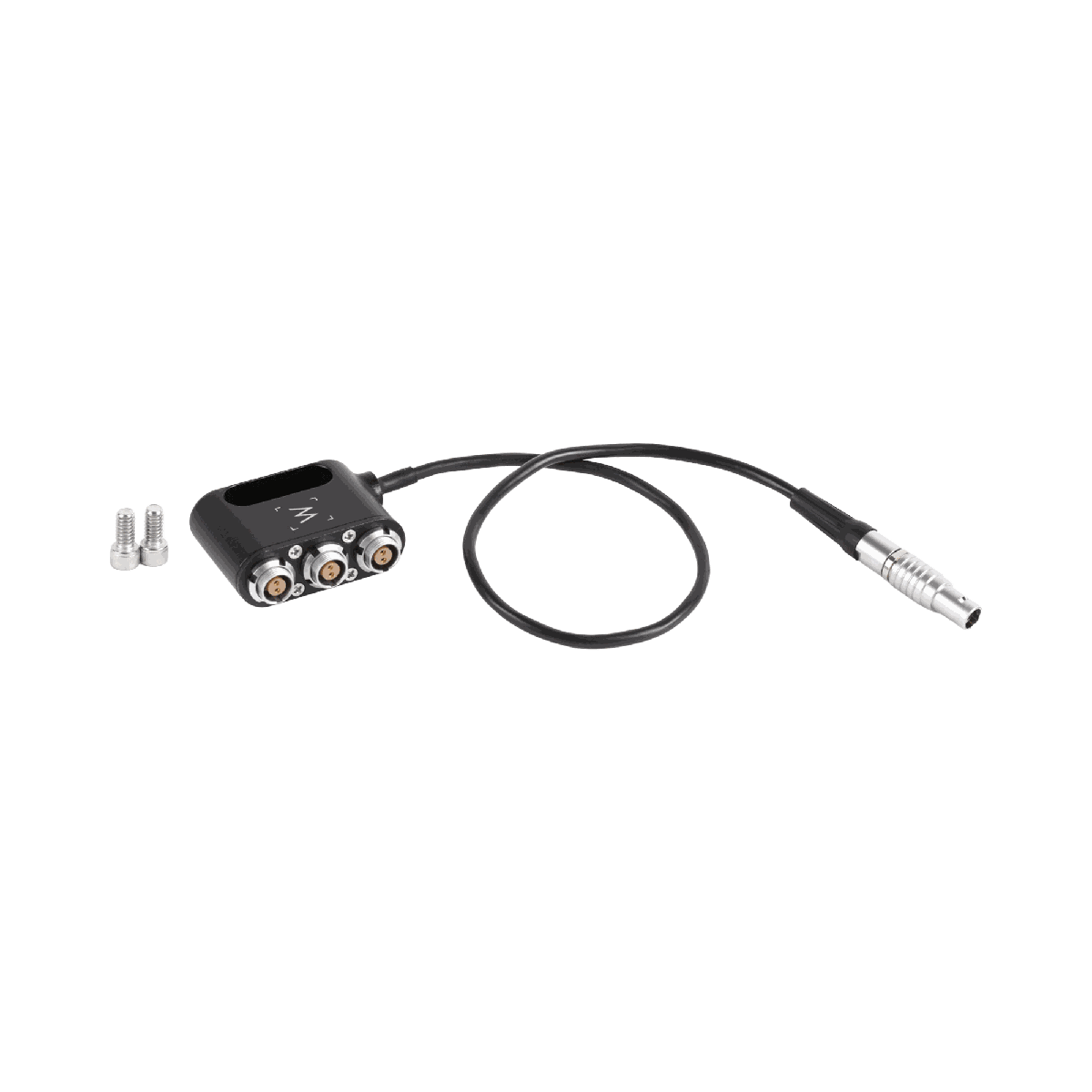

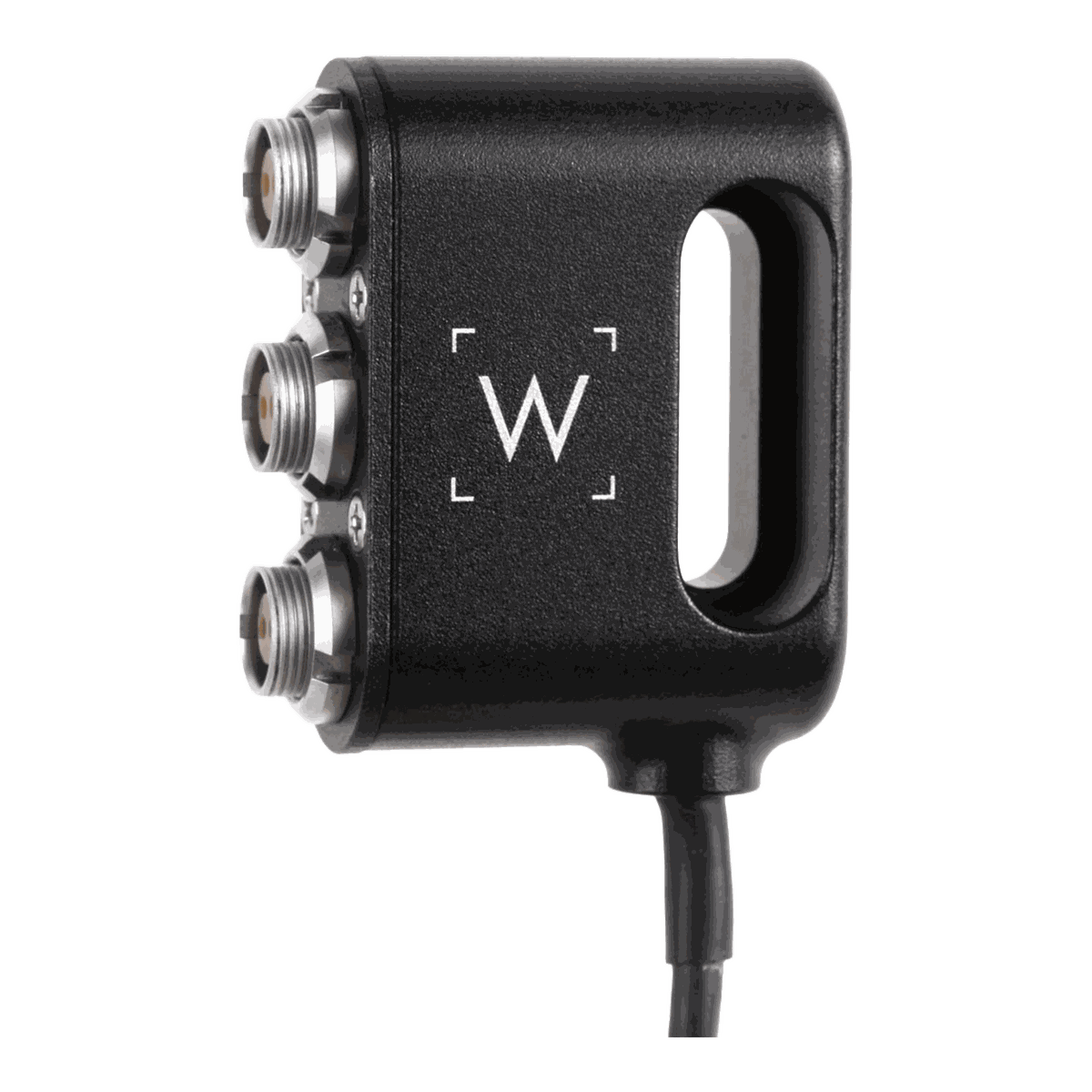

Wooden Camera 1 to 3 Mini Power Splitter (2-pin)

The 1 to 3 Mini Power Splitter takes one male 2-pin 0B connection and breaks it out to three female 2-pin 0B outputs, so a single 12V source on the rig can feed a monitor, a wireless transmitter and a motor without stacking adapters. It is a passive assembly with no fuse and no regulation, rated for a recommended maximum load of 10A at 12V.

Two 1/4"-20 socket cap screws ship in the box for bolting the splitter to a camera or an accessory, and the M3 hole pattern on the back mates with Wooden Camera's V-Lock Base Station and Wedge Kit. Cable length is 12 inches.
