VigilLink VLEX-U2CT100-TR USB 2.0 Extender over CAT, 100m

The VLEX-U2CT100-TR extends USB 2.0 up to 328 feet (100 meters) over a single Cat5e/6 cable, connecting a PC to peripherals that sit well outside a normal USB run. No software or driver installation is required at either end.

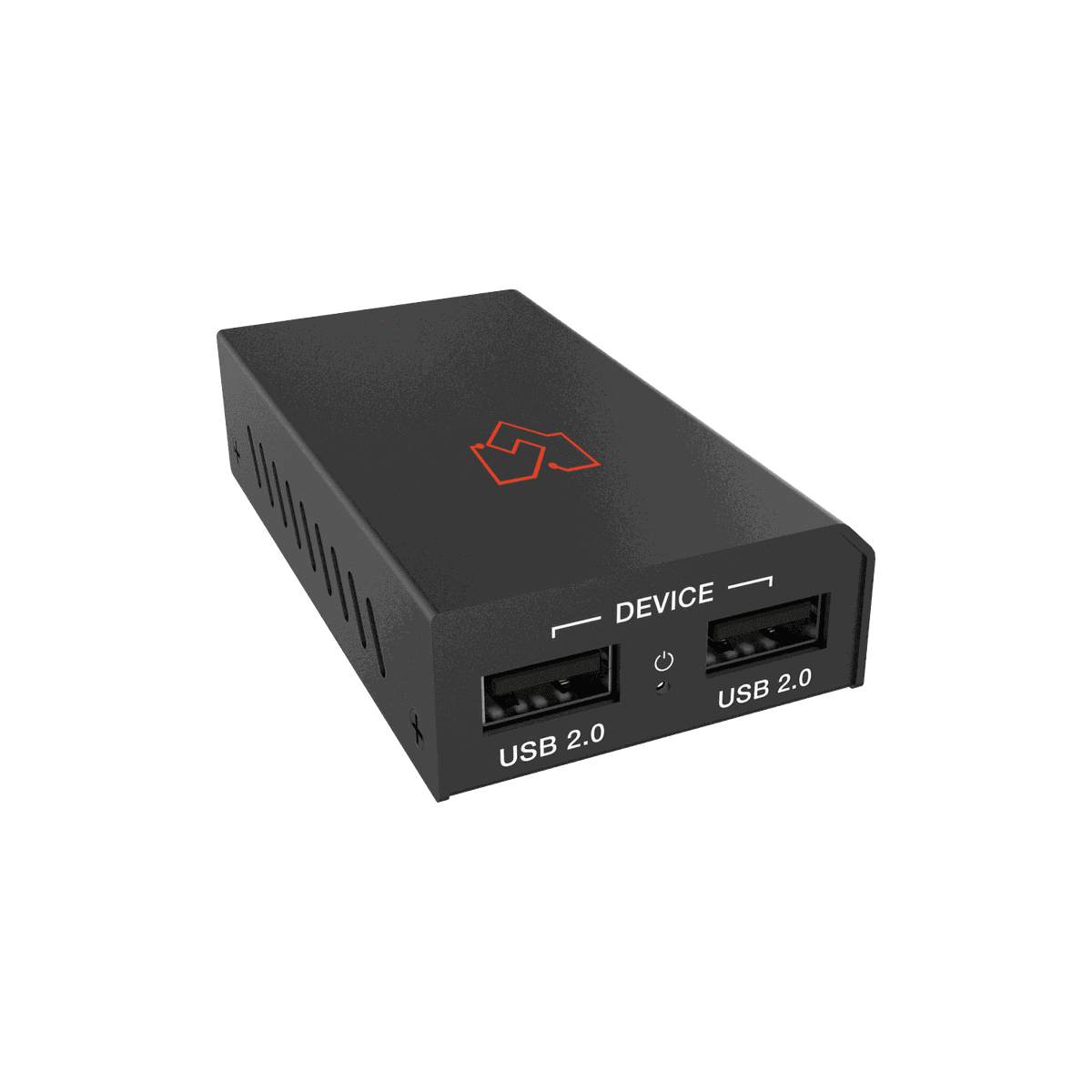

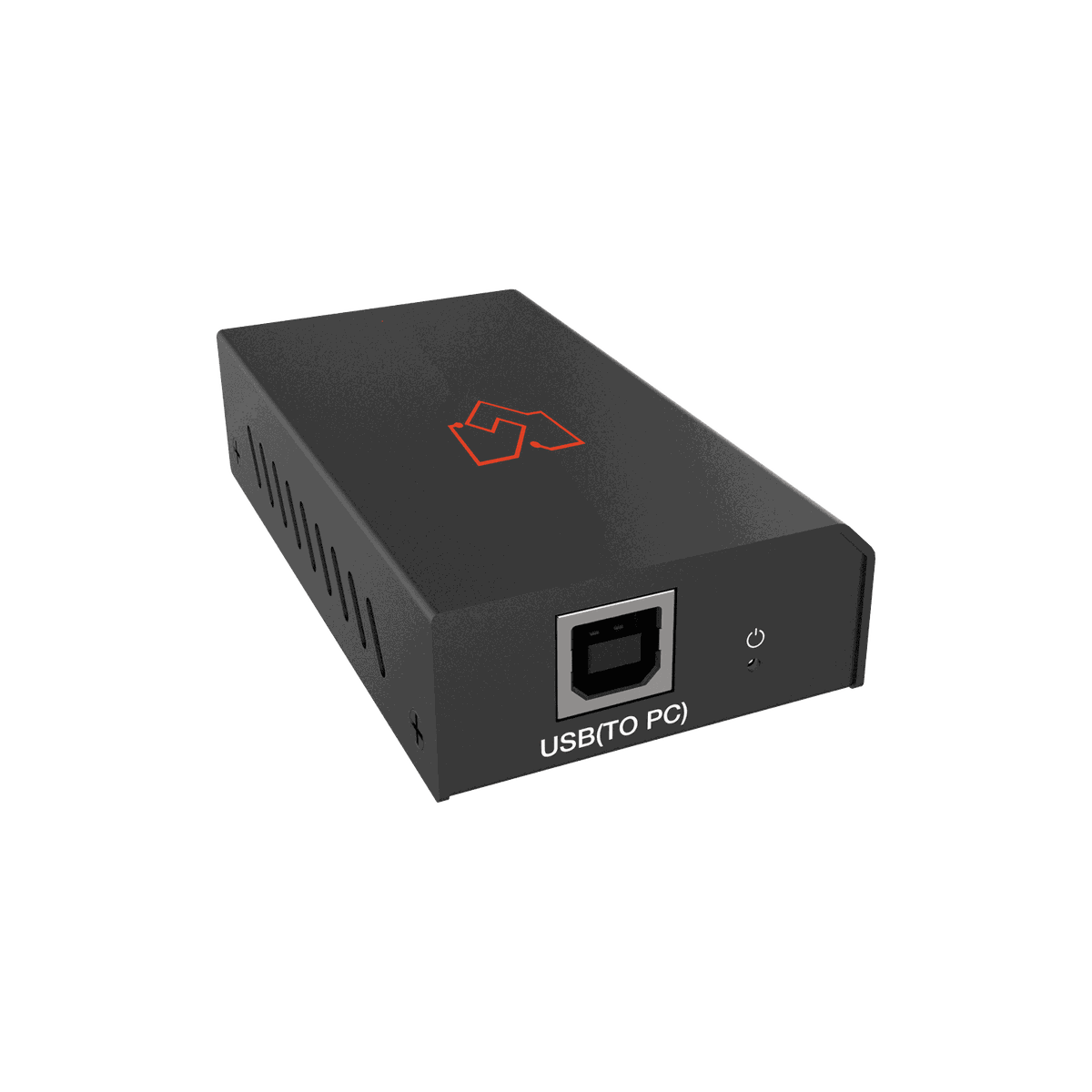

The transmitter uses a USB-B port to the host and the receiver provides two USB 2.0 ports for flash drives, printers, or webcams. Power over Cable means one adapter runs both units, which keeps a ceiling or lectern installation to a single cable.

ReceiverInputs: 1xCAT [RJ45, female] Outputs: 2xUSB [USB-A, female]
Transmission Distance100M (328ft)
HousingMetal Enclosure
DimensionsTransmitter / Receiver: 82mm (W)x49mm (D)x20mm (H)
WeightTransmitter / Receiver: 100g
Power SupplyInput: AC100~240V 50/60Hz Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)Receiver: 5V USB power supply
Power ConsumptionTransmitter: 1.3W, Receiver: 2.3W
USB ProtocolUSB 2.0
