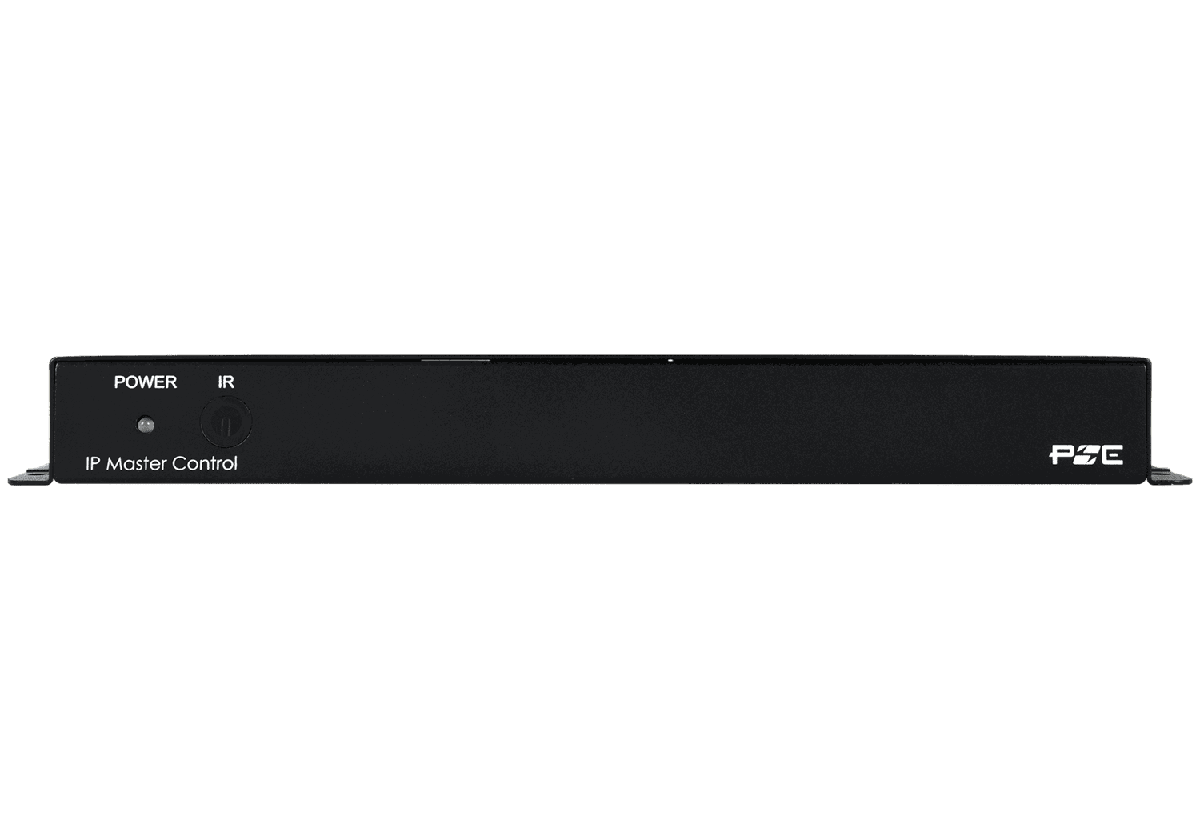

VigilLink VLIP-CTRL-MST AV over IP Master Controller

The VLIP-CTRL-MST centralizes routing, matrix switching, and video wall control for VigilLink AVoIP extenders through a single web GUI. Transmitter and receiver pairs that were configured individually become a managed system with unicast and multicast routing, display groups, and recallable presets.

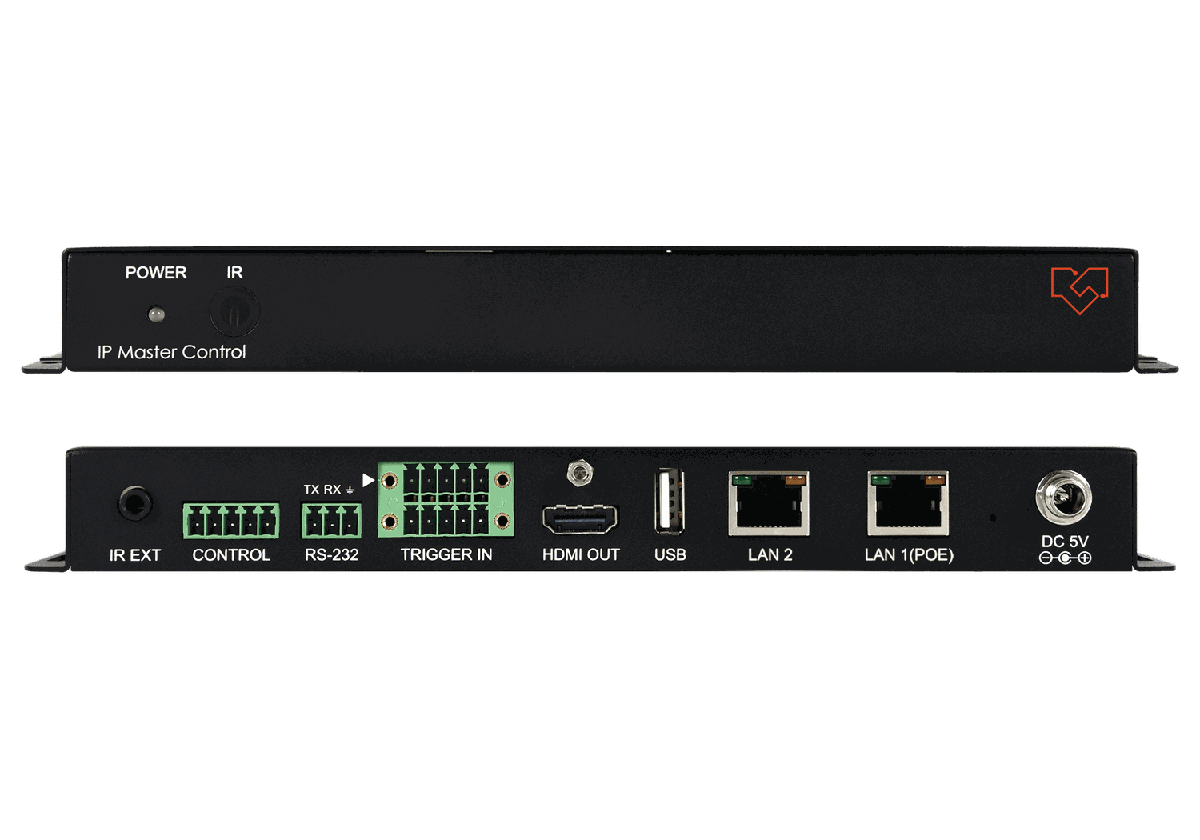

Dual LAN ports keep control traffic on a separate network from video. Eight trigger inputs drive keypads and macros, and an HDMI status output at 1080p60 puts system state on a local monitor. Control comes over the web GUI, RS-232, Telnet, or IR remote, with USB keyboard and mouse support, powered by PoE (802.3af) or 5V DC.
