VigilLink VLIP-H5HD 1G H.265 1080p AVoIP Transmitter and Receiver

The VLIP-H5HD pair puts HD sources on a standard network and pulls them off again at any number of displays, reaching 328 feet (100 meters) per hop over a 100M or 1G switch. Encoding is configurable low-bandwidth H.265 or H.264 up to 1920x1200@60Hz 4:4:4, which is what makes it practical on a shared network rather than a dedicated 10G fabric.

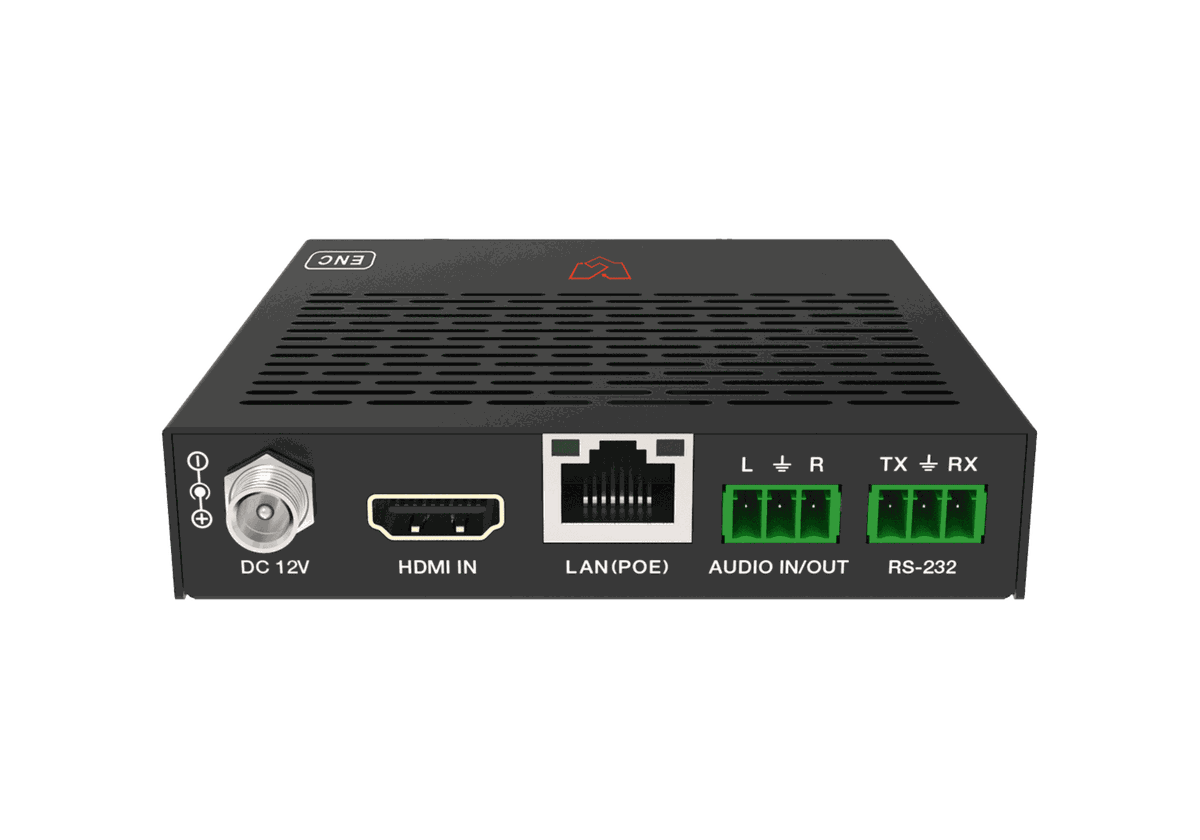

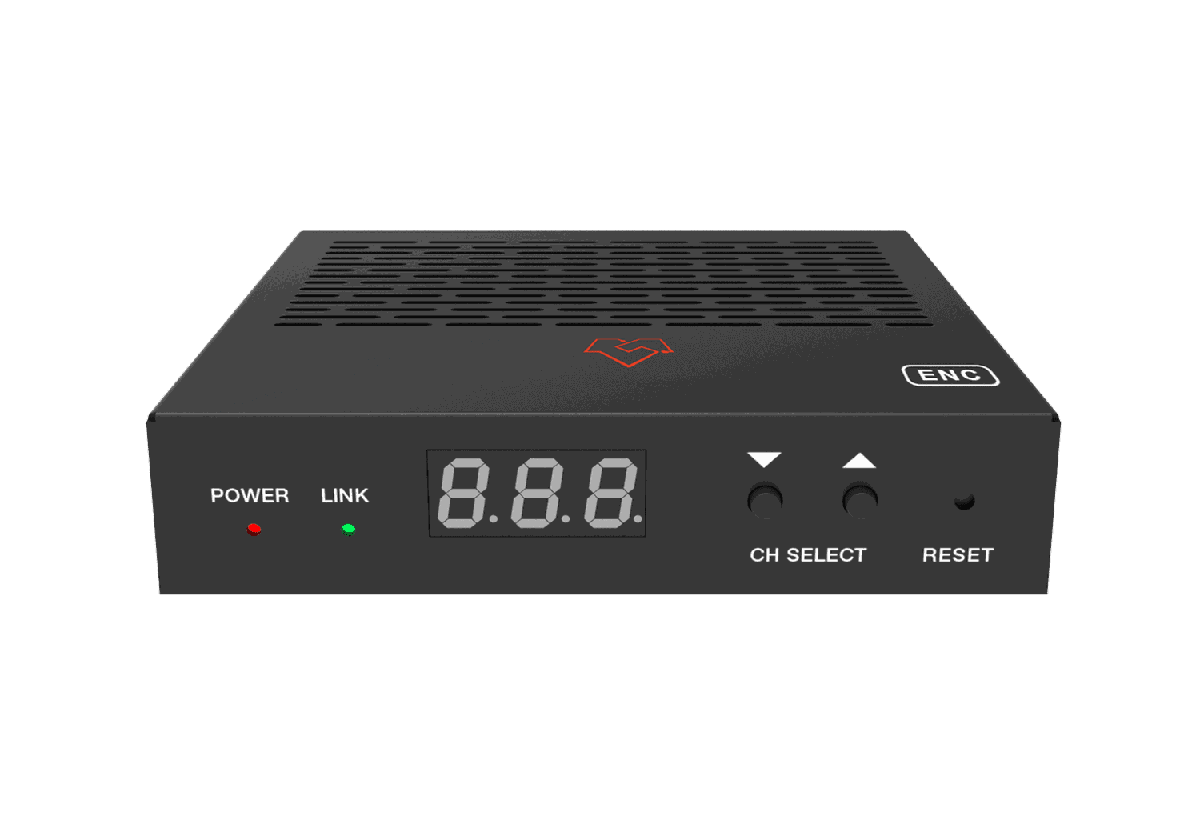

Deployment covers point-to-point, multicast, matrix, and video wall up to 9x9. The units are HDMI 1.3 (HDCP 1.4) with analog audio embedding and de-embedding at LPCM 2.0CH and both mainstream and substream encoding. RS-232 pass-through and guest control are supported, power is PoE (802.3af), and matrix switching works from the front panel buttons or RS-232 with no controller in the system.
