VigilLink VLIP-H54G-CTRL AVoIP Controller for 4K H.265 Transceiver Networks

The VLIP-H54G-CTRL runs an H.264/H.265 video-over-IP system built on VLIP-H54KC-TRX transceivers. An ARM Cortex-A55 CPU drives a drag-and-drop web GUI that handles video wall layout with window roaming and marquee text, seamless switching, and KVM mouse roaming so one operator moves between several PCs.

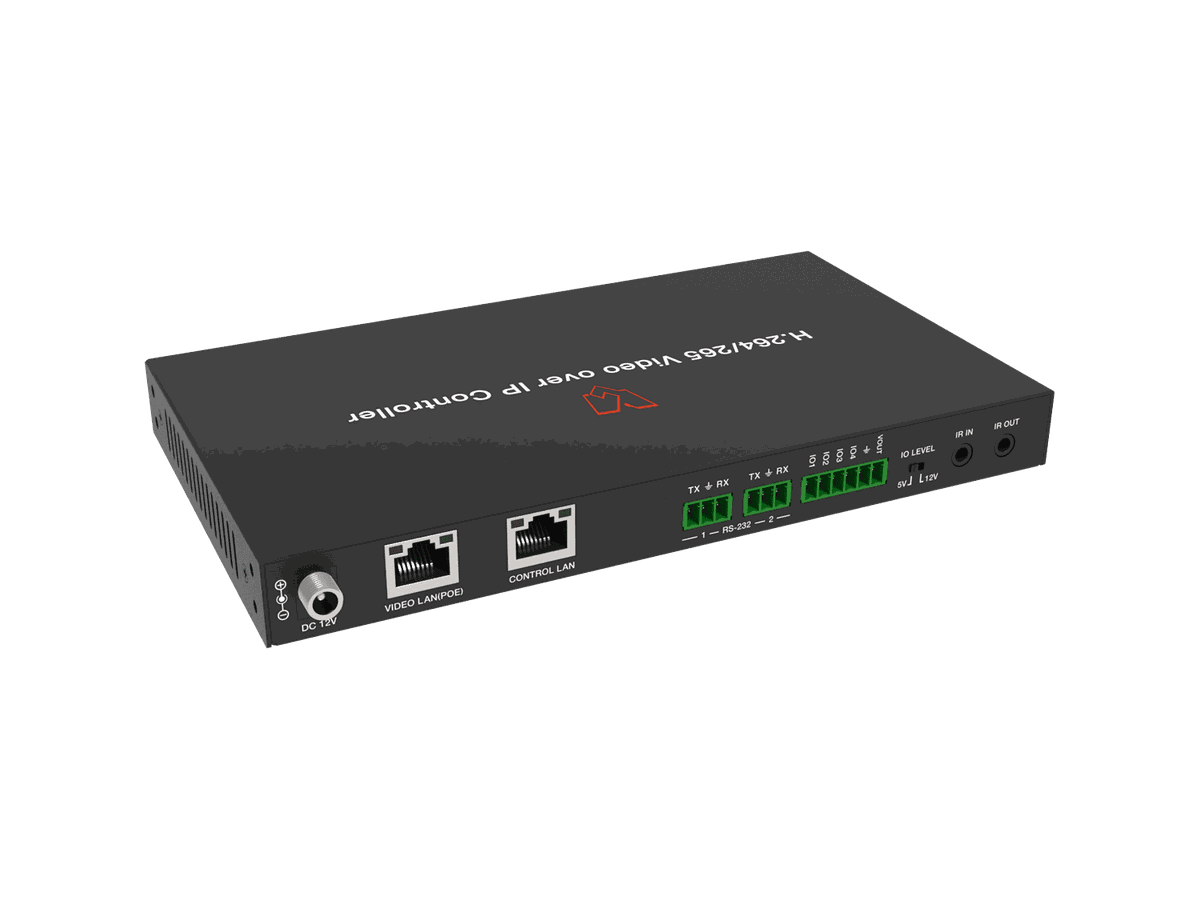

Dual 1G network ports isolate control from video, with PoE on the video LAN. Two RS-232 ports, IR in and out, and four GPIO ports at 5V or 12V connect it to third-party control. Power comes from PoE or a 12V supply, and the chassis mounts in 1U or a 6U frame.
