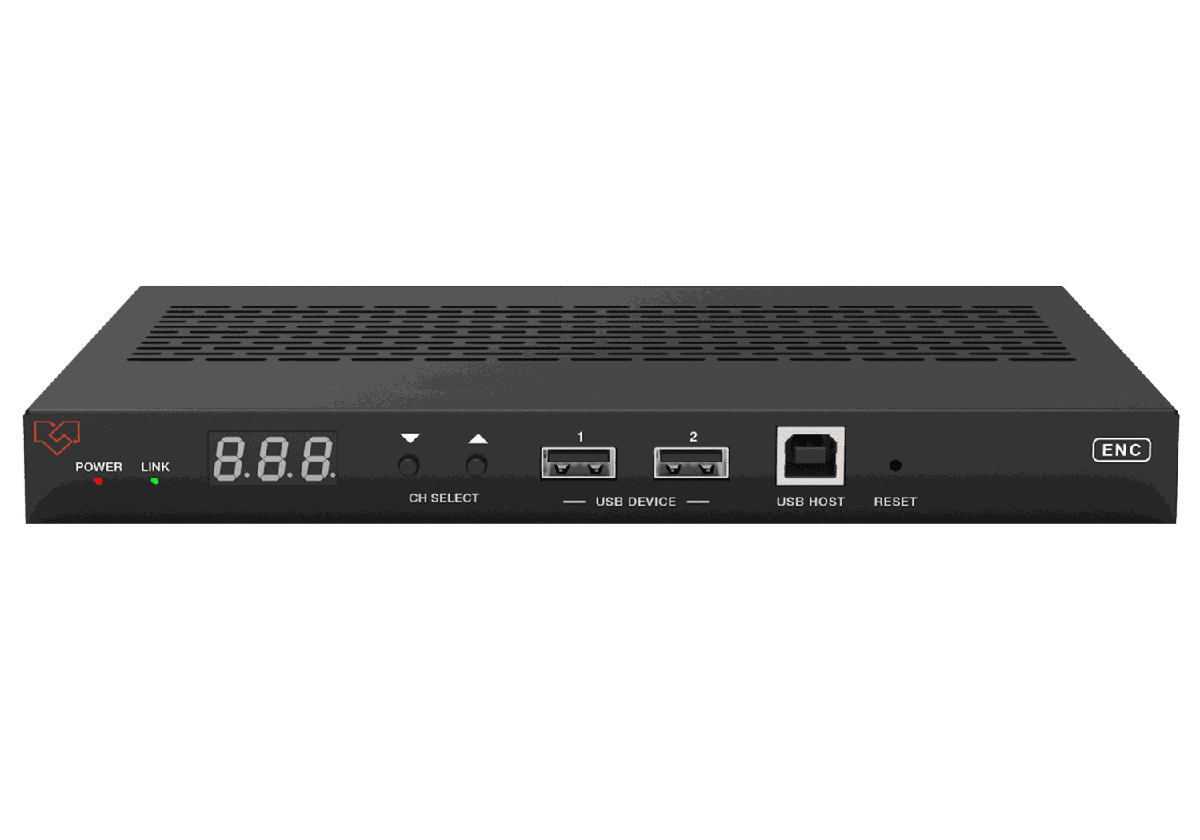

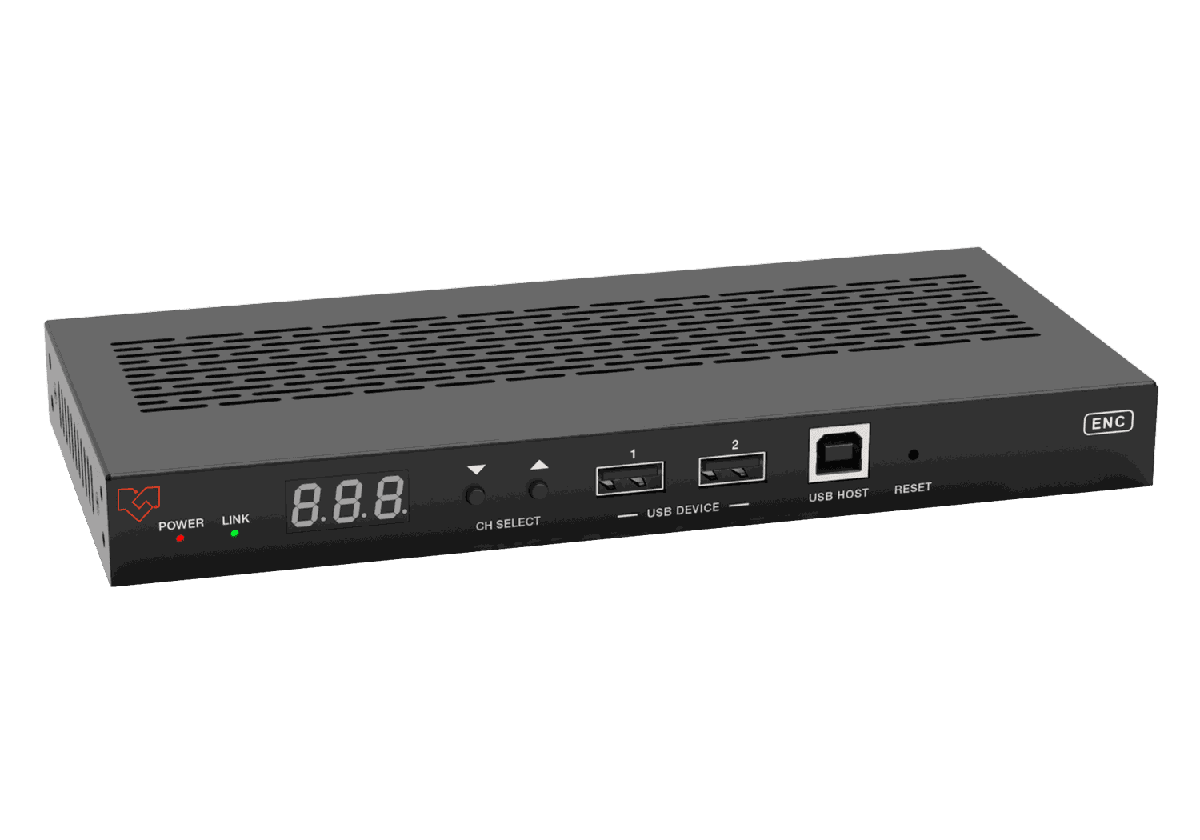

VigilLink VLIP-H5HDK 1G H.265 1080p AVoIP Transmitter and Receiver with KVM

The VLIP-H5HDK pair sends 1080p@60Hz to any number of displays over a 100M or 1G managed switch, up to 328 feet (100 meters) per hop. It is the KVM version of the H5HD line, adding USB and two-way IR to the same low-bandwidth H.265/H.264 transport.

The encoder is HDMI 1.4b (HDCP 1.4) up to 1080p@60Hz 4:4:4 and 1920x1200@60Hz, with a local loop-out and a built-in H.264 preview stream. Seamless matrix switching and video wall run without a central controller, RS-232 passes through, analog audio can be embedded and extracted, and power is PoE (802.3af). Control comes from panel buttons, IR, RS-232, TCP/IP, or the web GUI.
