Vaddio OneLINK Bridge Codec Kit for Cisco Cameras

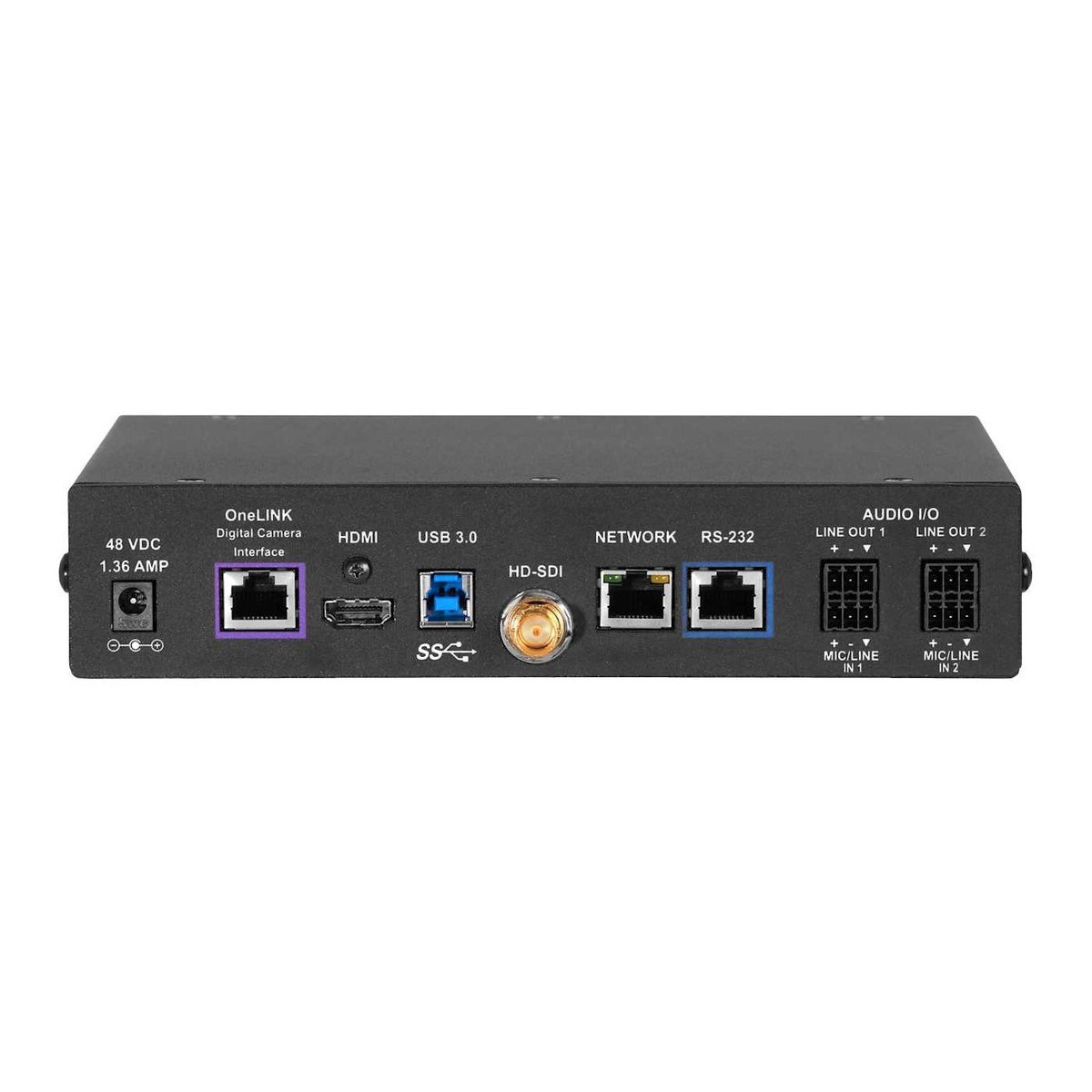

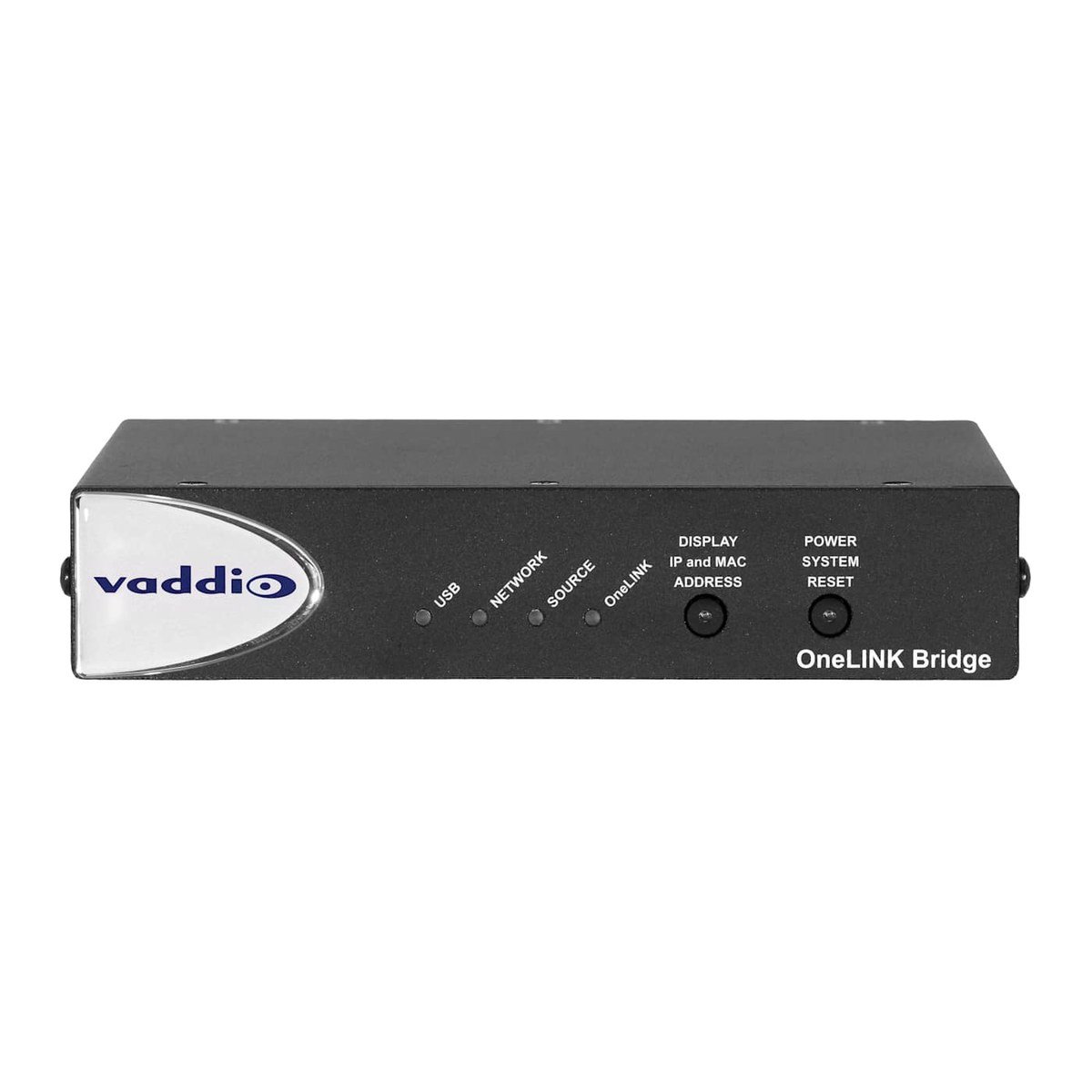

This is the OneLINK Bridge configured for Cisco cameras and codecs. The camera end takes a single Cat-6 cable that carries power, uncompressed video, network and control, and the Bridge at the rack end presents uncompressed USB 3.0, HDMI 1.4b and 3Gb/s HD-SDI simultaneously. For a Cisco room that also has to run soft conferencing, that USB output is the whole reason the kit exists.

Distance is up to 328 ft (100 m) on Cat-6, or 230 ft (70 m) on Cat-5e. The Bridge passes the source IP stream through when one is available and passes web, Telnet and RS-232 control down to the camera, with two balanced audio inputs available for embedding. The kit ships with the EZCamera Interface Module that HDMI cameras need.

Camera Compatibility	Cisco cameras with a Cisco codec
Simultaneous Outputs	Uncompressed USB 3.0, HDMI 1.4b, 3Gb/s HD-SDI
Cable Distance	Up to 328 ft (100 m) on Cat-6; 230 ft (70 m) on Cat-5e
Carried on One Cable	Camera power, video, network and control
Audio	Two balanced audio inputs, embedded in the outputs
Control Passthrough	Web interface, Telnet and RS-232

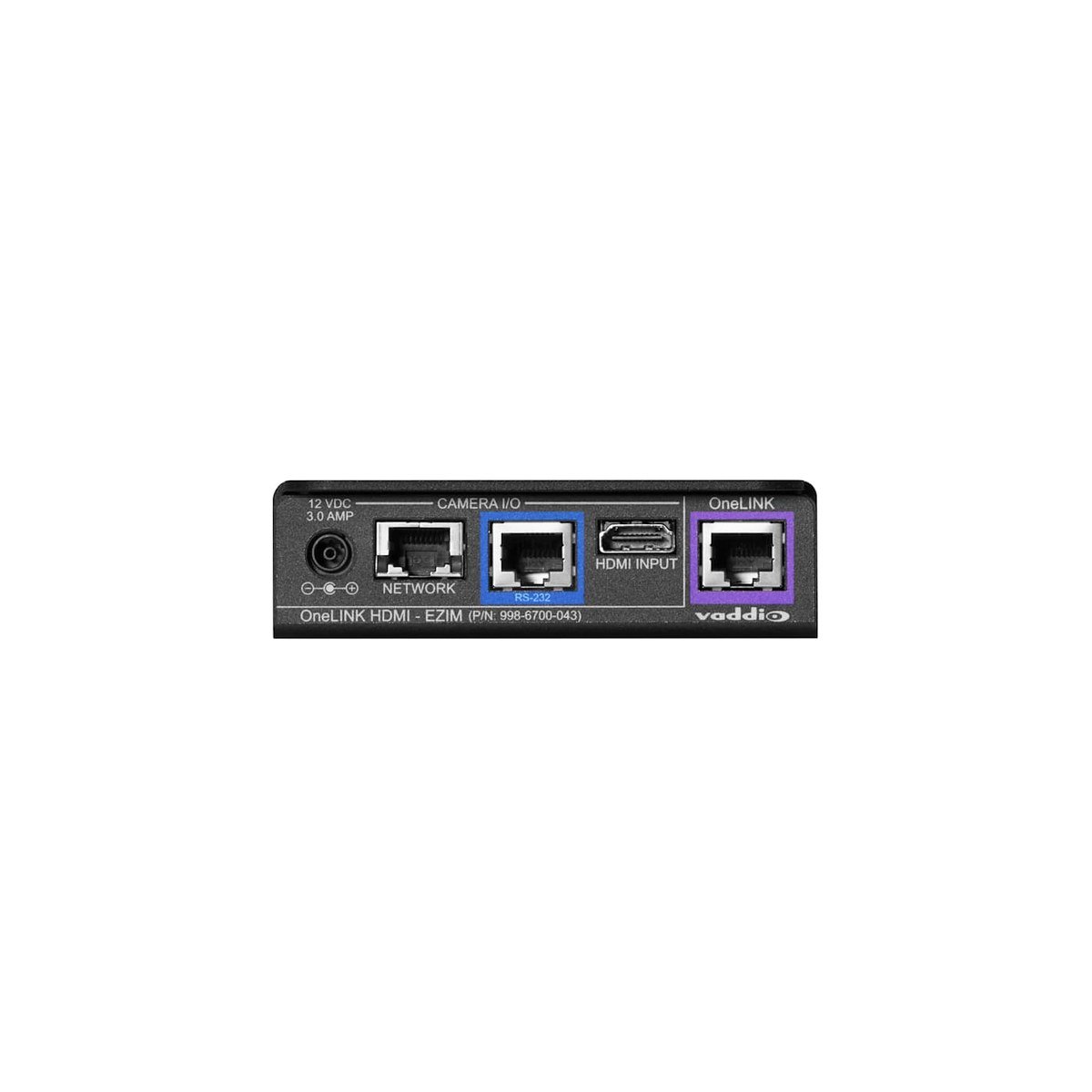

Included	OneLINK Bridge, camera-side unit, EZCamera Interface Module (EZIM)
Warranty	3 years
