Vaddio OneLINK Bridge Kit for Sony and Panasonic HE-Series Cameras

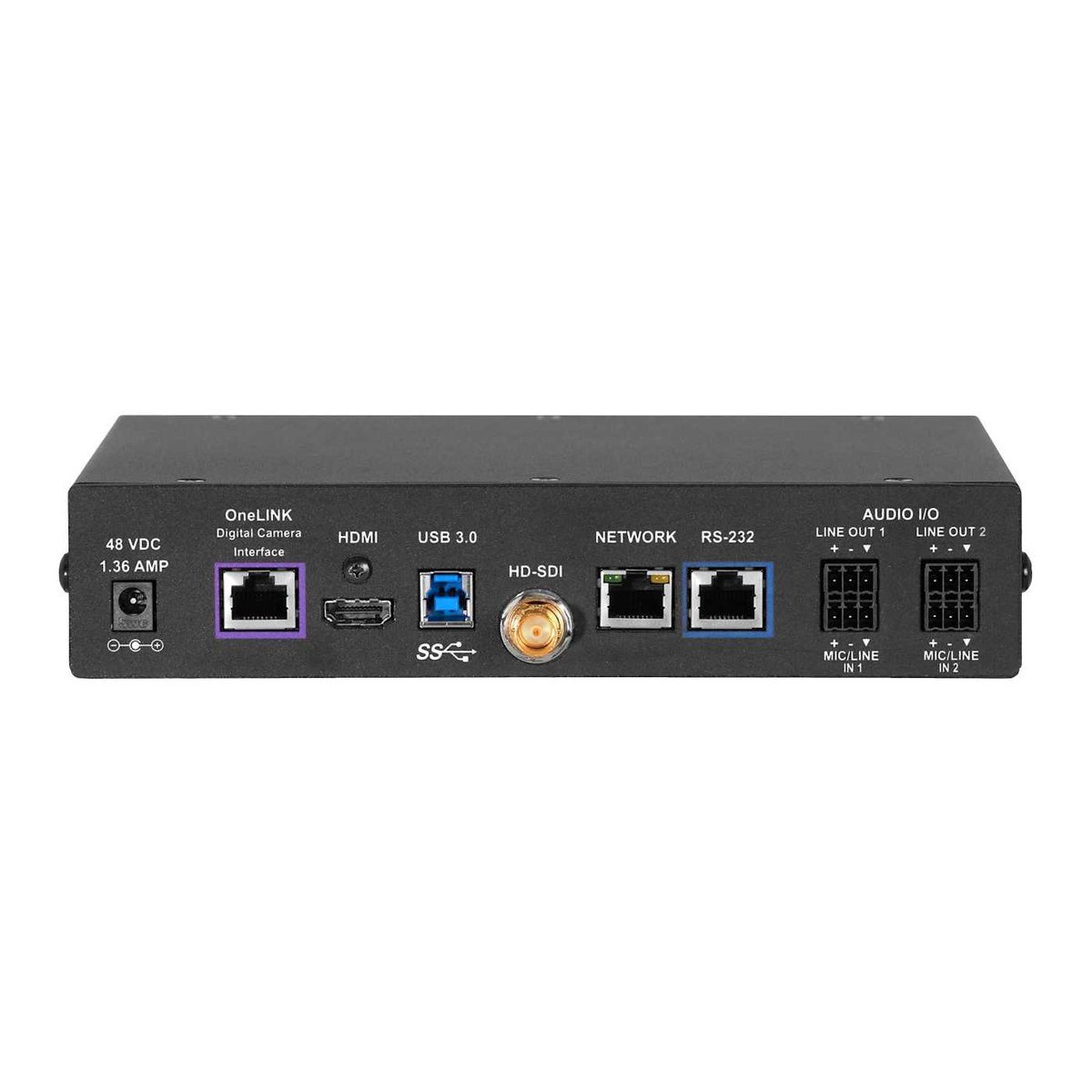

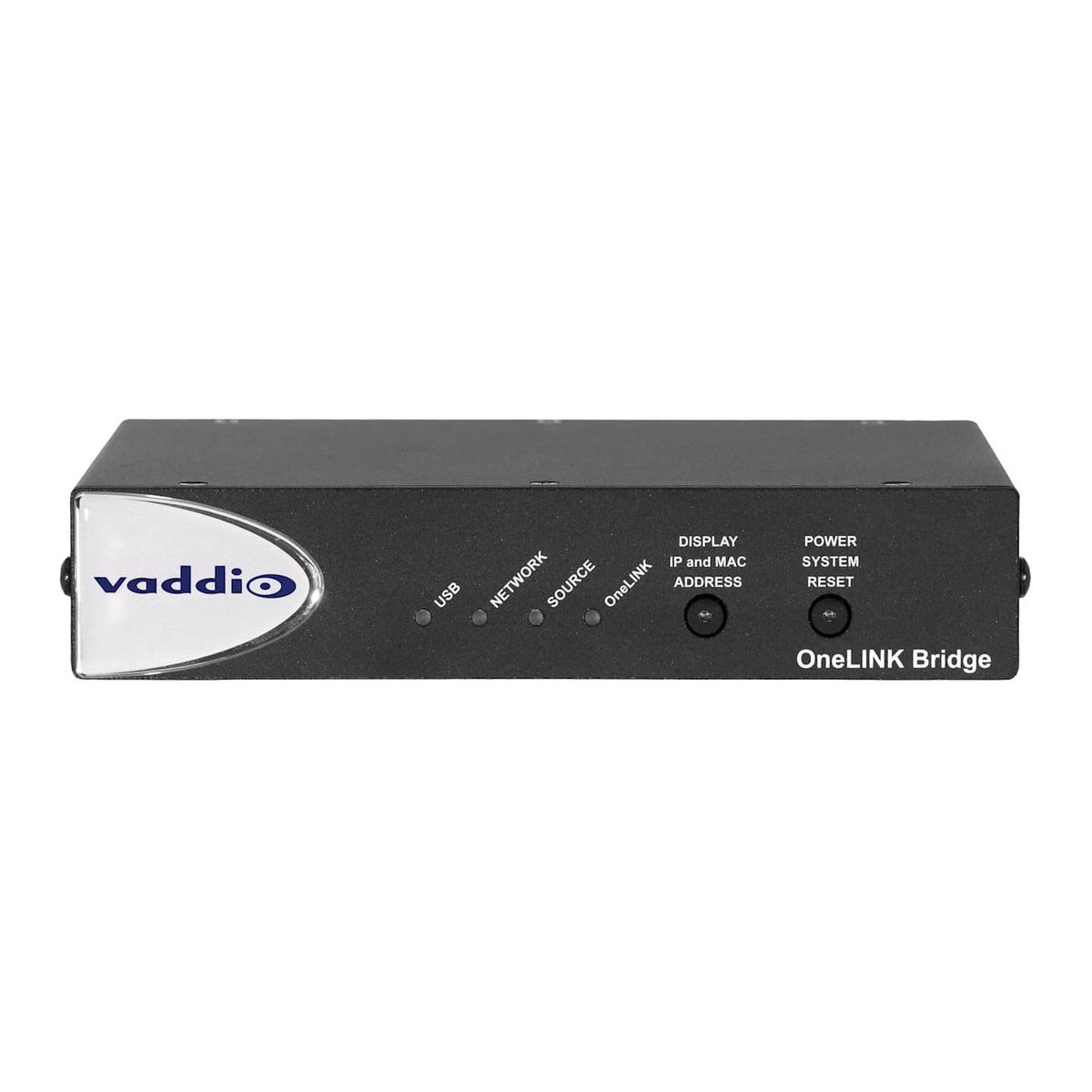

This kit pairs the OneLINK Bridge with Sony and Panasonic HE-series cameras. The camera runs on a single Cat-6 cable that carries its power, uncompressed video, network and RS-232 control, and the Bridge at the rack end outputs uncompressed USB 3.0, HDMI 1.4b and 3Gb/s HD-SDI at the same time. A room built around a third-party camera therefore gains a soft-codec USB feed without adding a capture device.

Reach is up to 328 ft (100 m) on Cat-6 or 230 ft (70 m) on Cat-5e. The Bridge passes through the camera's IP stream where it has one, takes two balanced audio inputs for embedding, and is administered from its own web interface. The EZCamera Interface Module required by HDMI cameras is included.

Camera Compatibility	Sony and Panasonic HE-series HDMI cameras
Simultaneous Outputs	Uncompressed USB 3.0, HDMI 1.4b, 3Gb/s HD-SDI
Cable Distance	Up to 328 ft (100 m) on Cat-6; 230 ft (70 m) on Cat-5e
Carried on One Cable	Camera power, video, network and control
Audio	Two balanced audio inputs, embedded in the outputs
Control Passthrough	Web interface, Telnet and RS-232

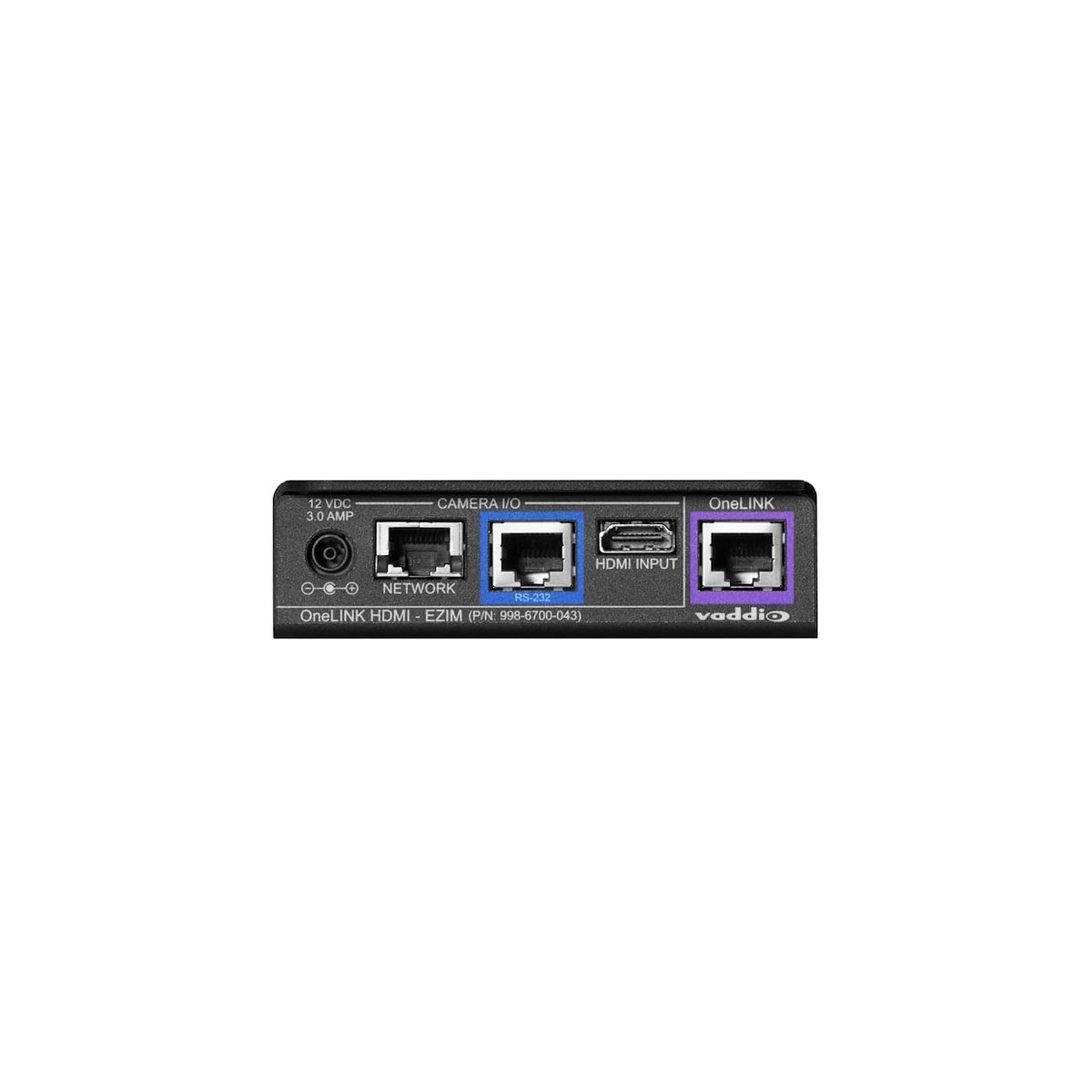

Included	OneLINK Bridge, camera-side unit, EZCamera Interface Module (EZIM)
Warranty	3 years
