Vaddio OneLINK HDMI Extension for Sony and Panasonic HE-Series Cameras

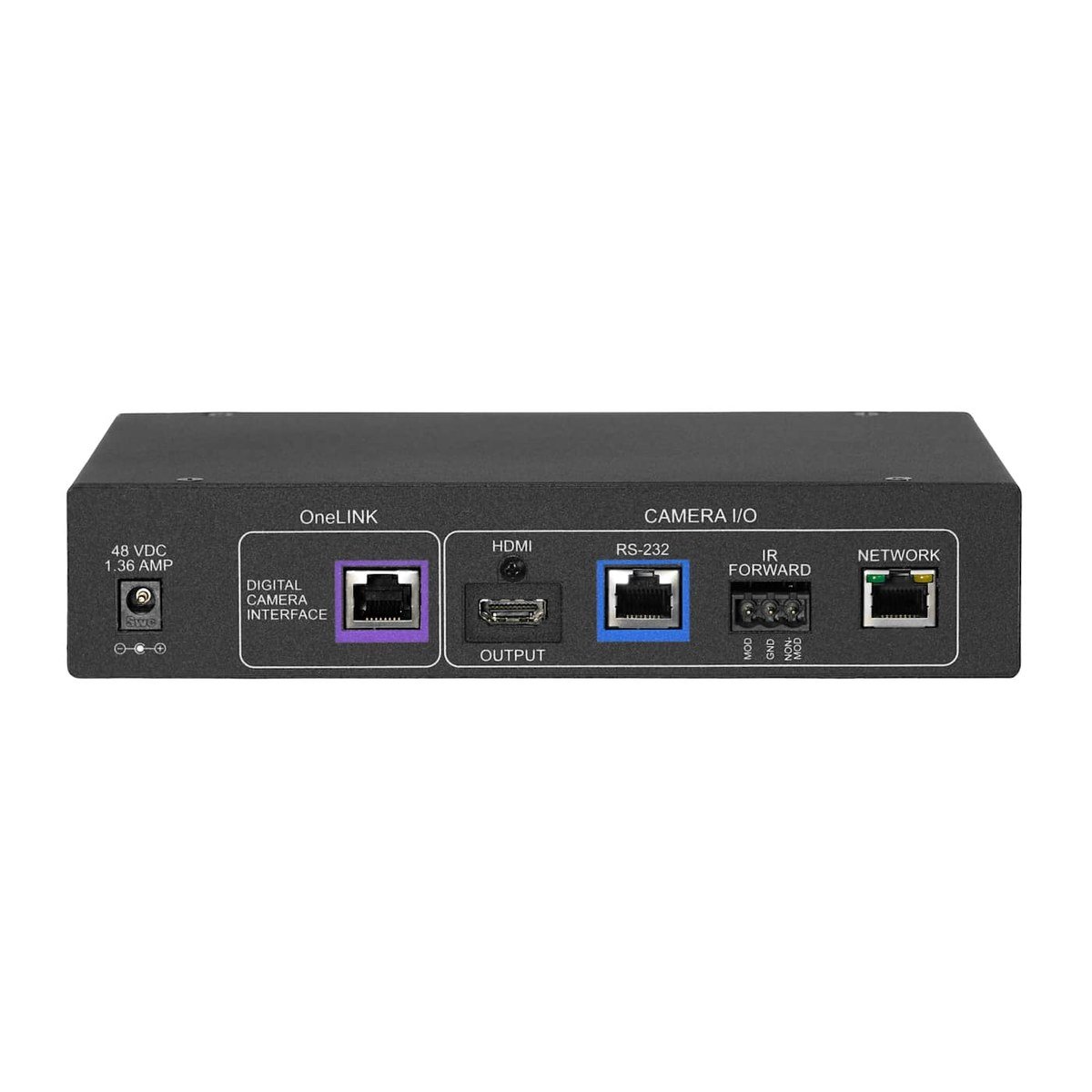

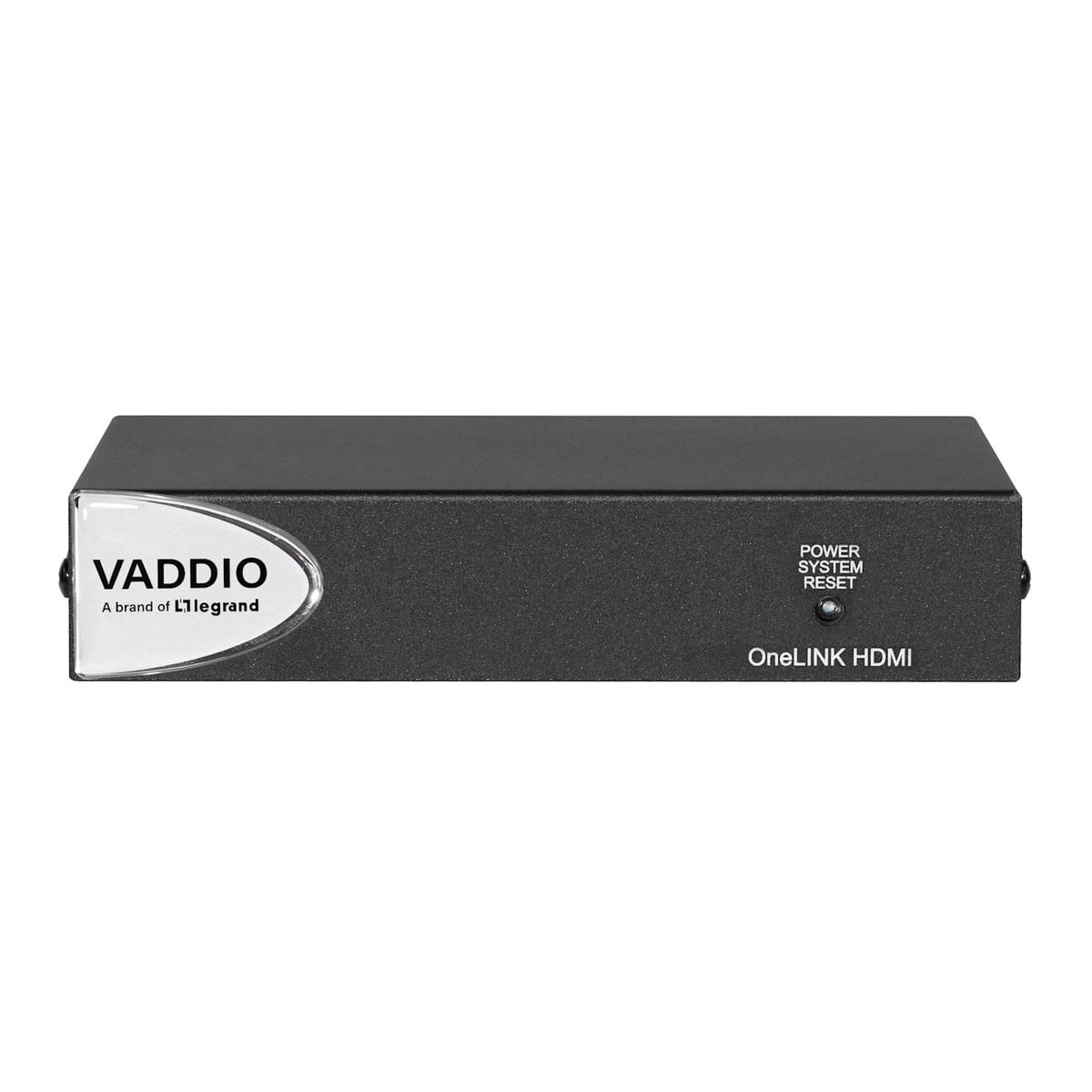

This is the OneLINK HDMI extension built for Sony and Panasonic HE-series cameras. One Cat-6 run between the receiver and the camera position carries the camera's power, its uncompressed HDMI video, its network connection and its RS-232 control, which removes the outlet, the video run and the control run that a third-party camera would otherwise need at the far end.

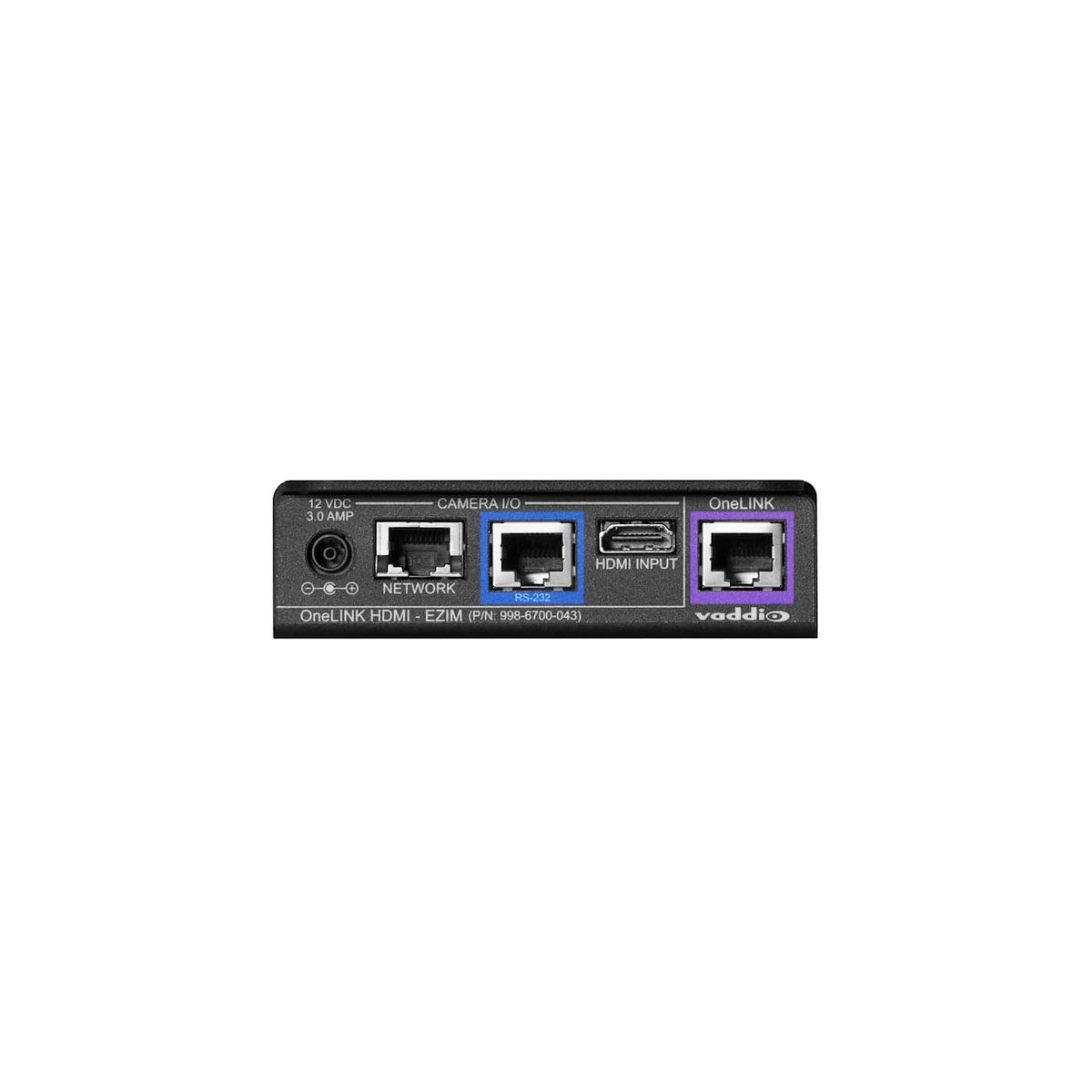

Reach is up to 328 ft (100 m) on Cat-6 or 230 ft (70 m) on Cat-5e, and the link passes uncompressed HDMI up to 2160p/29.97 plus the camera's own IP stream where it has one. Administration is through the OneLINK device's web interface, and web, Telnet and RS-232 control pass through to the camera. The EZCamera Interface Module needed for HDMI cameras is part of the kit.
