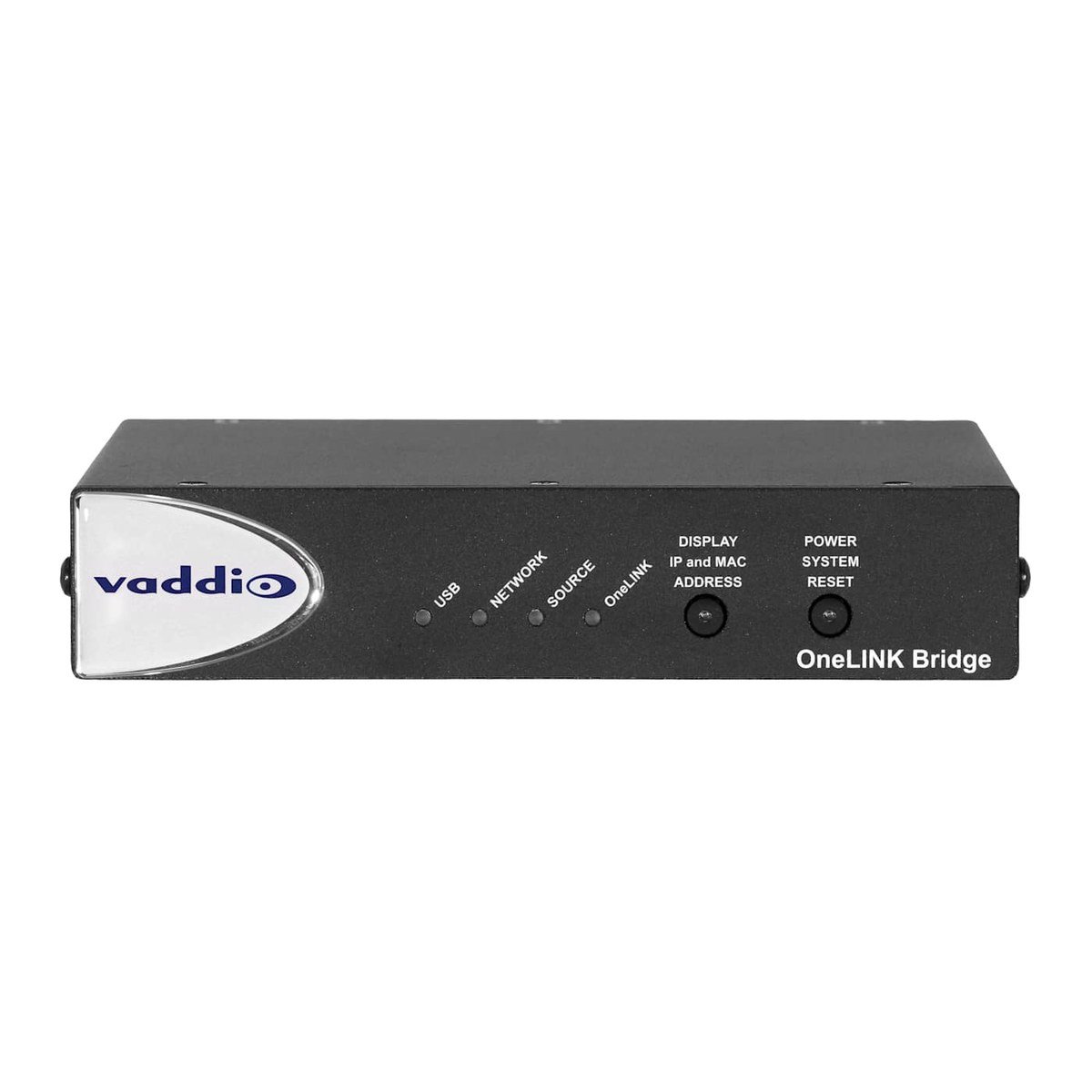

Vaddio OneLINK Bridge Codec Kit for Polycom EagleEye IV Cameras

The OneLINK Bridge does what the OneLINK HDMI does, and then gives the room a USB output as well. A Polycom EagleEye IV camera runs on one Cat-6 cable for power, video, network and control, and at the rack end the Bridge presents uncompressed USB 3.0, HDMI 1.4b and 3Gb/s HD-SDI simultaneously. That USB stream is what turns a codec-based room into a bring-your-own-device room without re-cabling it.

Distance is up to 328 ft (100 m) on Cat-6 or 230 ft (70 m) on Cat-5e. The Bridge passes an IP stream through from the source if one is available, and passes web, Telnet and RS-232 control to the camera. It also carries balanced audio, so far-end and room audio can be embedded in the outputs. The kit includes the EZCamera Interface Module that HDMI cameras require.

Camera Compatibility	Polycom EagleEye IV with a Polycom codec

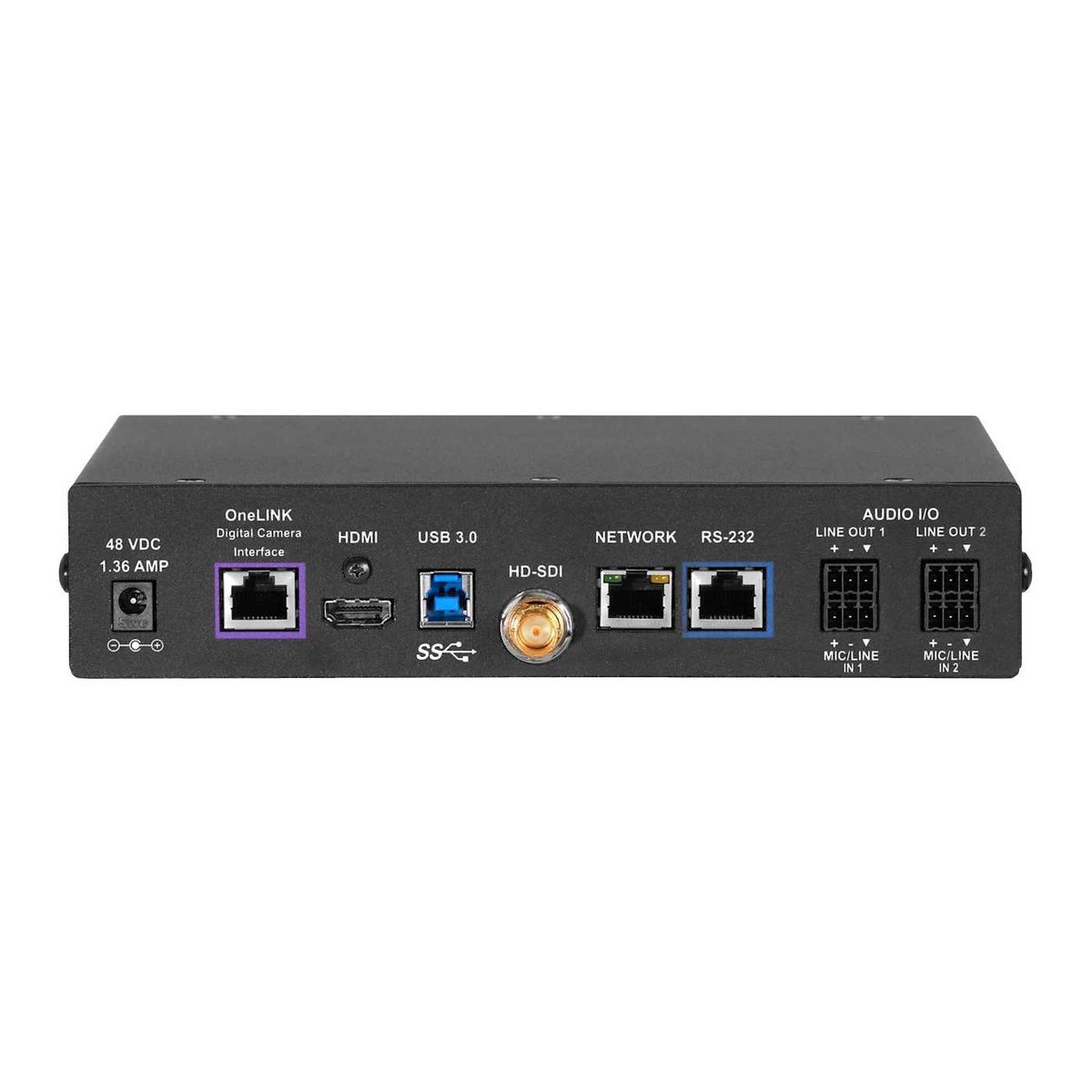

Simultaneous Outputs	Uncompressed USB 3.0, HDMI 1.4b, 3Gb/s HD-SDI
Cable Distance	Up to 328 ft (100 m) on Cat-6; 230 ft (70 m) on Cat-5e
Carried on One Cable	Camera power, video, network and control
Audio	Two balanced audio inputs, embedded in the outputs
Control Passthrough	Web interface, Telnet and RS-232

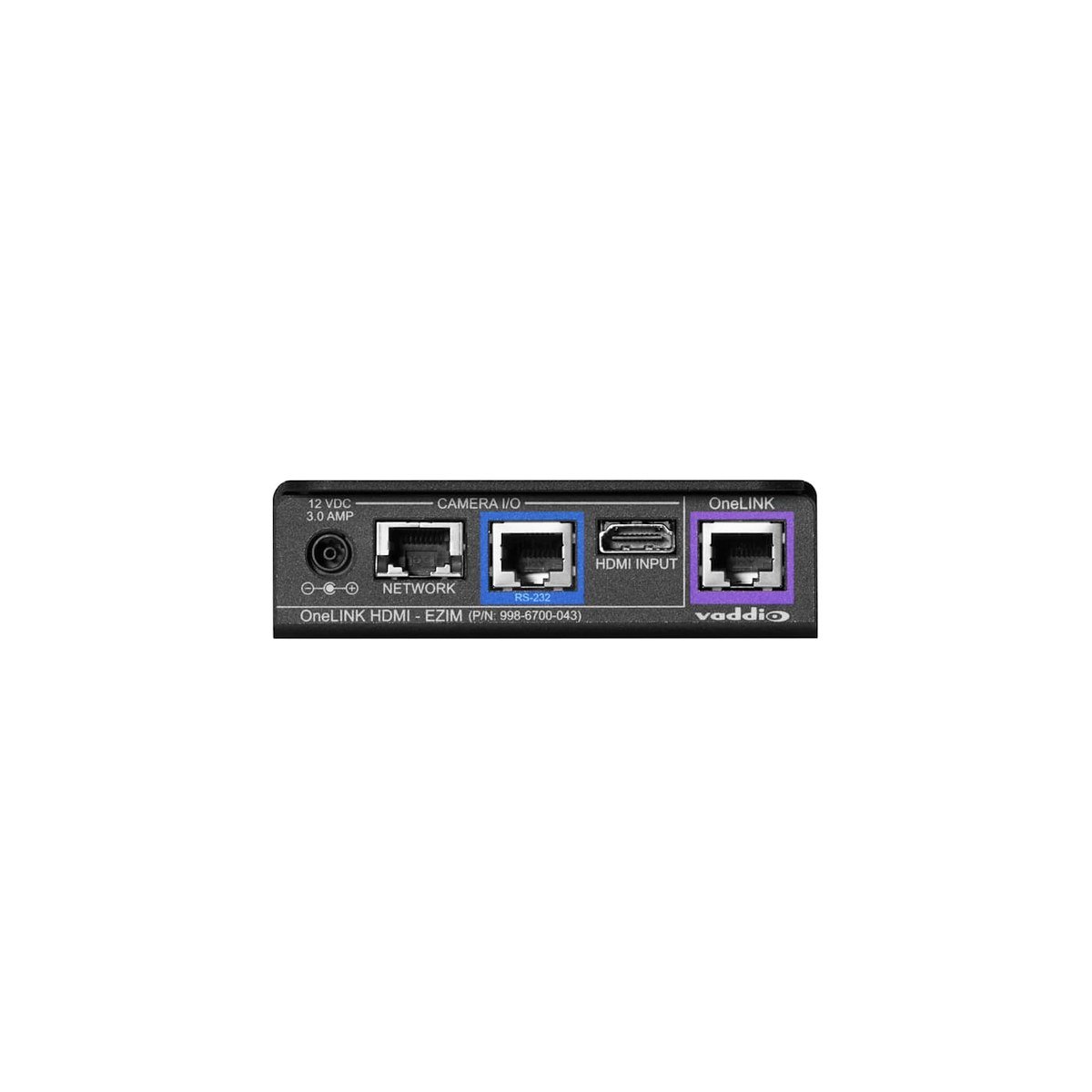

Included	OneLINK Bridge, camera-side unit, EZCamera Interface Module (EZIM)
Warranty	3 years
