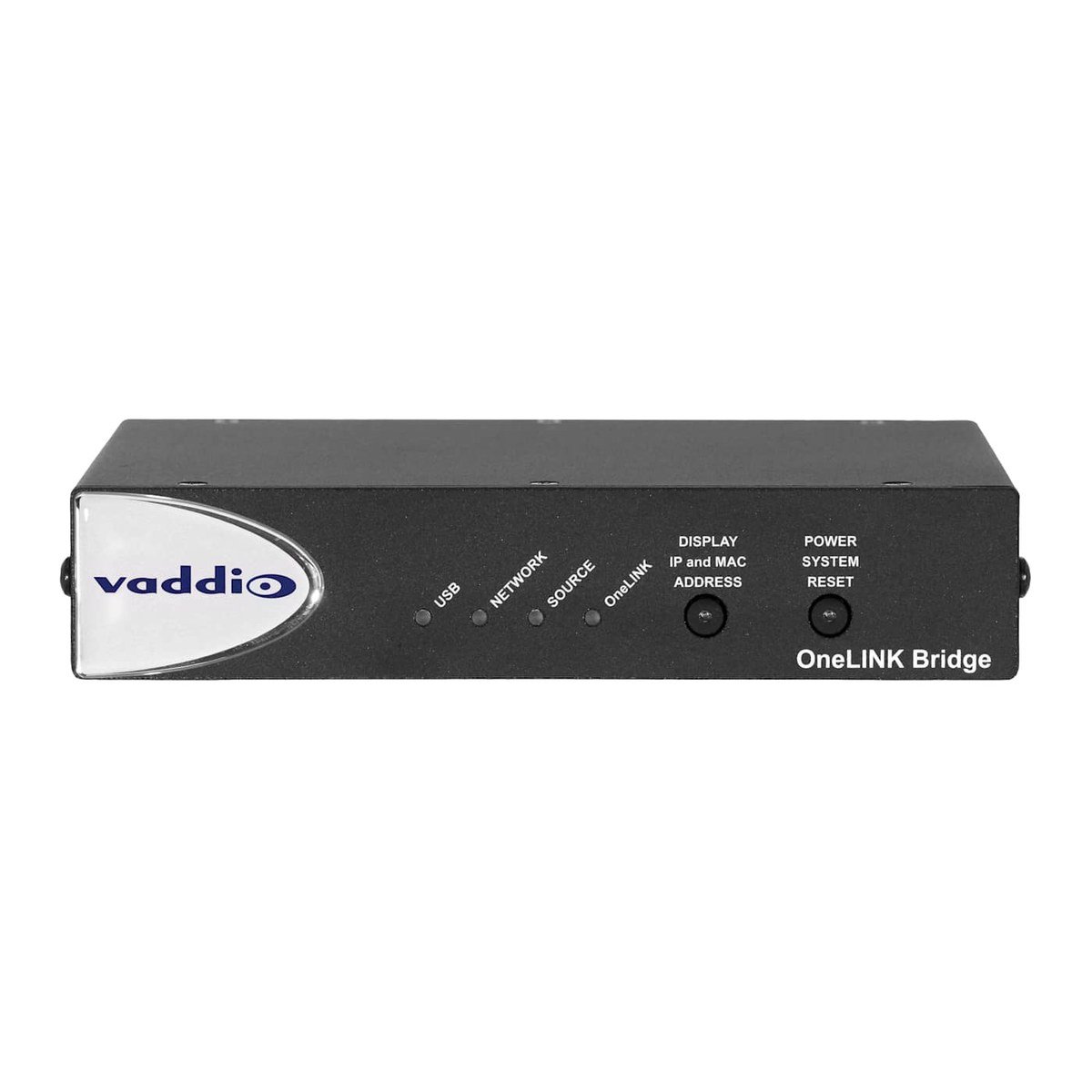

Vaddio OneLINK Bridge Polycom Codec Kit

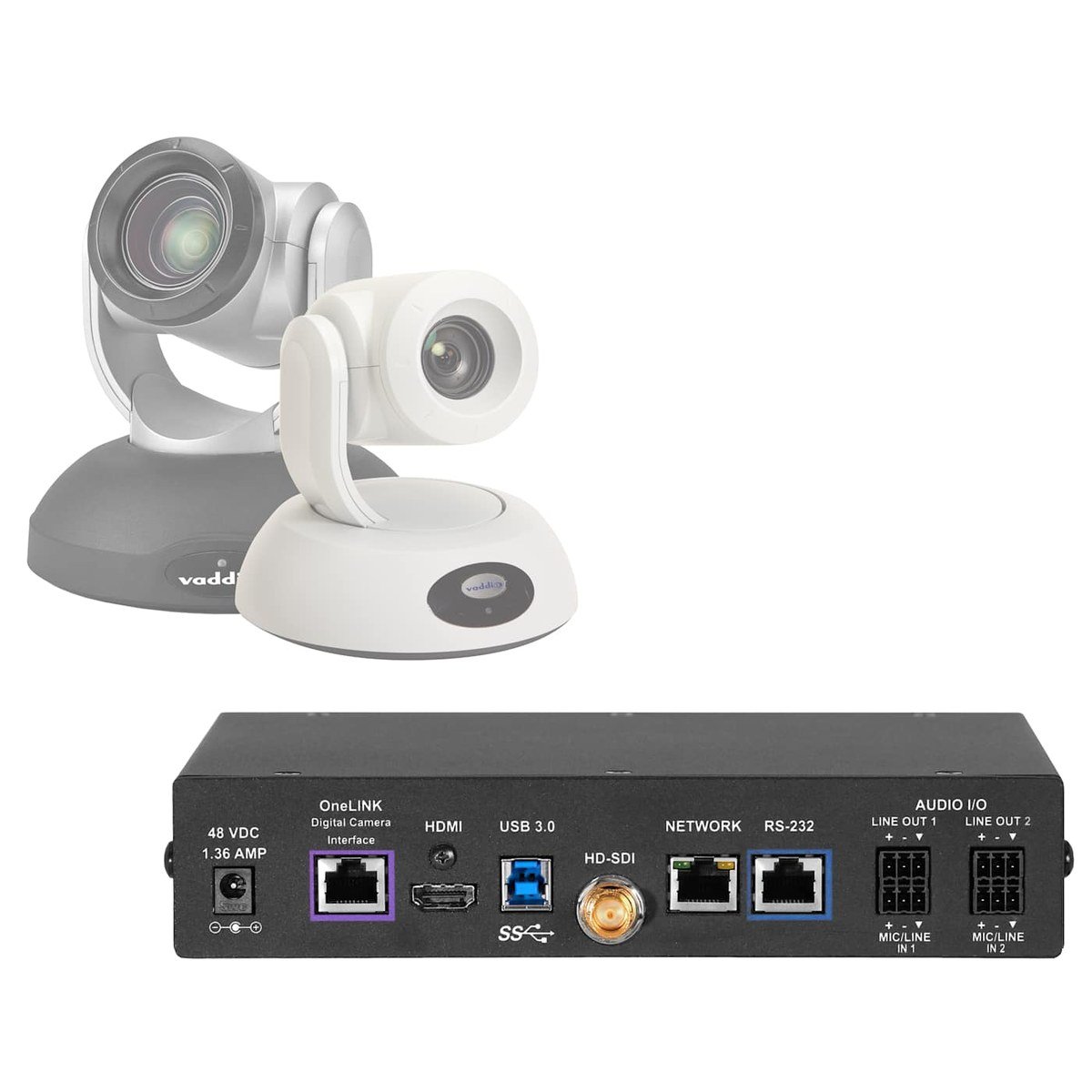

The OneLINK Bridge is Vaddio's AV interface for HDBaseT cameras, and this kit is configured for Polycom RealPresence Group 300, 310, 500 and 700 rooms. A single Cat-5e run carries power, control and video between the camera and the interface at distances up to 328 feet, while the Bridge folds in Vaddio's AV Bridge functionality so the same camera can also feed a soft conferencing client. It works with the RoboSHOT 12 and 30 HDBT, RoboSHOT 20 UHD and RoboSHOT IW cameras.

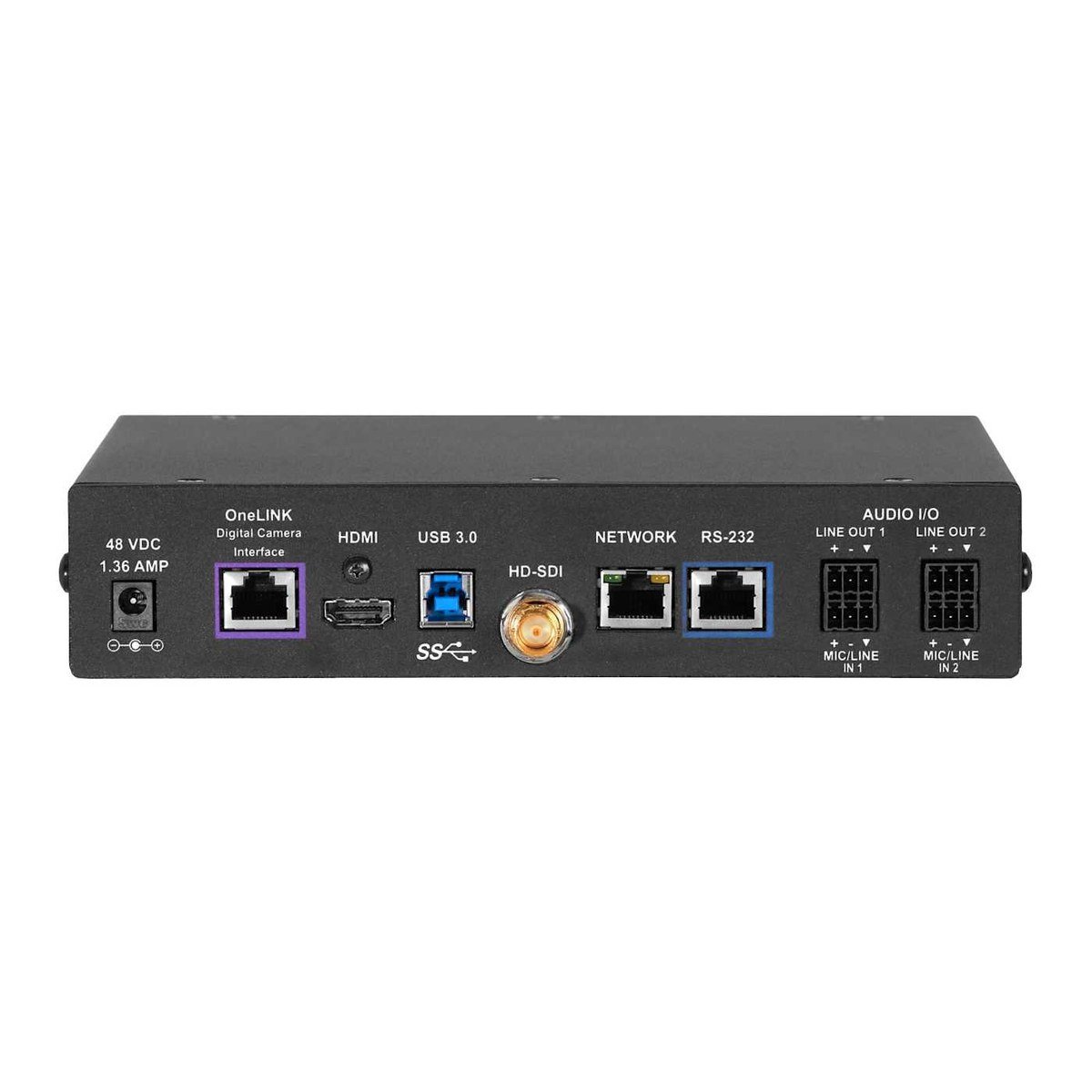

On the output side it provides simultaneous, uncompressed HDMI, USB 3.0 and HD-SDI, passes an IP stream when the source offers one, and adds two mic/line audio inputs and two balanced line outputs through a 6 x 10 mixer with echo cancellation. In the box: the OneLINK Bridge interface, a 48V power supply with cord set, four 3-position phoenix connectors, a 2 ft codec-side fan-out cable for Polycom, a 6 ft USB 3.0 cable, an EZCamera RS-232 control adapter, and a quick-start guide.
