Vaddio PCC Premier Precision Camera Controller

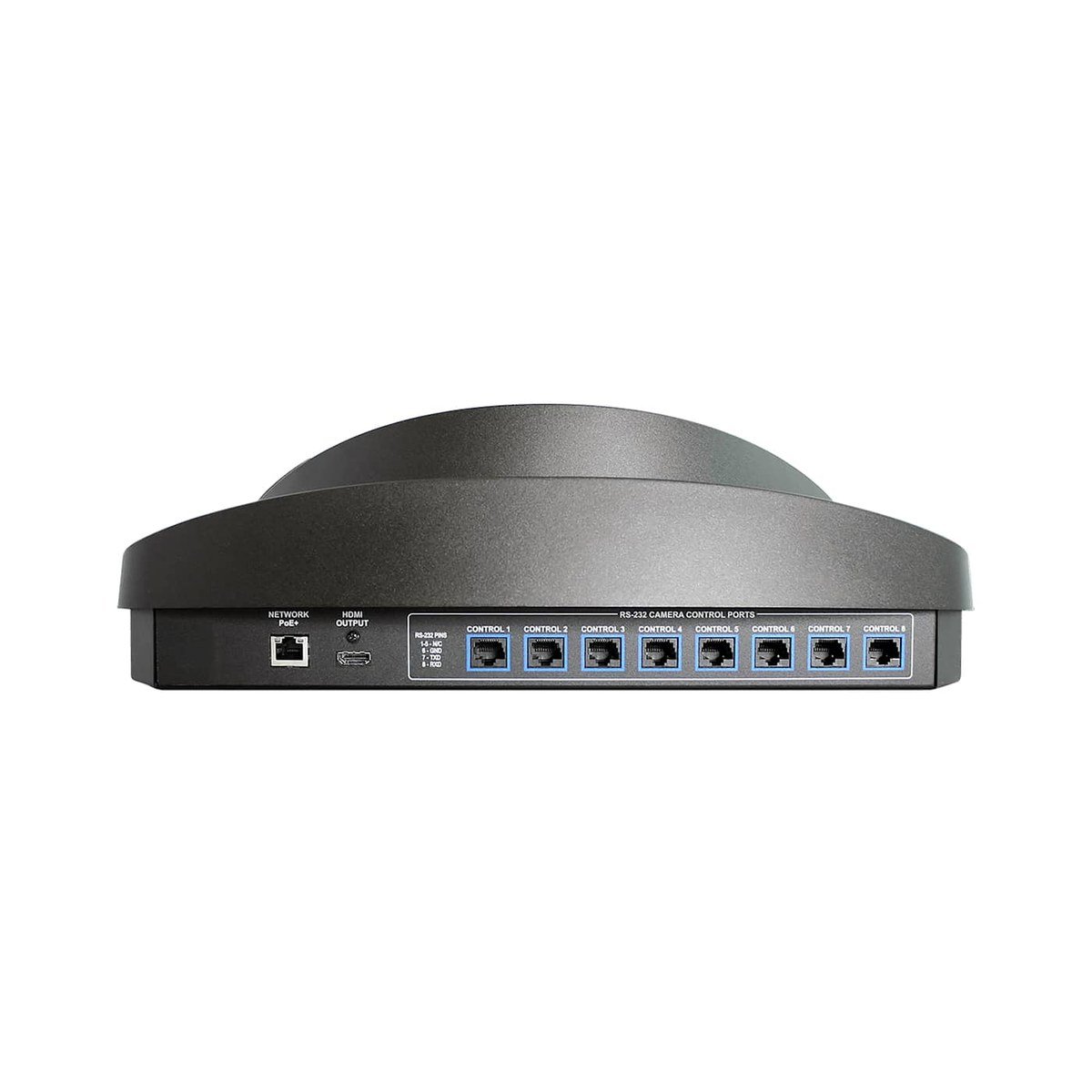

The PCC Premier is the desk a camera operator actually works from. It controls up to 16 PTZ cameras at a time in two groups of eight: eight over wired RS-232, and up to 16 RoboSHOT or ClearSHOT cameras addressed anywhere on the IP network. Image controls, CCU scene macros and preset store and recall are all on the unit rather than buried in a browser tab.

The controls are built for long shifts: a three-axis Hall effect joystick, separate pan, tilt and zoom speed knobs, illuminated pushbuttons for camera selection, and large knobs for fine focus and menu navigation with push to select. A 7 in touch panel carries the image controls, and an internal H.264 decoder with a courtesy HDMI output puts the selected remote camera's IP stream on a monitor without a separate decoder. An Address Book stores up to 11 camera groups, ten IP or RS-232 plus one predefined RS-232 group.
