TurtleAV Chazy Control Controller for Chazy 4K Systems
The Chazy Control box is the system controller for TurtleAV's Chazy 4K family. It embeds Dante Controller directly in hardware, so routing and management happen from any web browser on the network rather than from a laptop running desktop software that has to be present whenever the system is reconfigured.

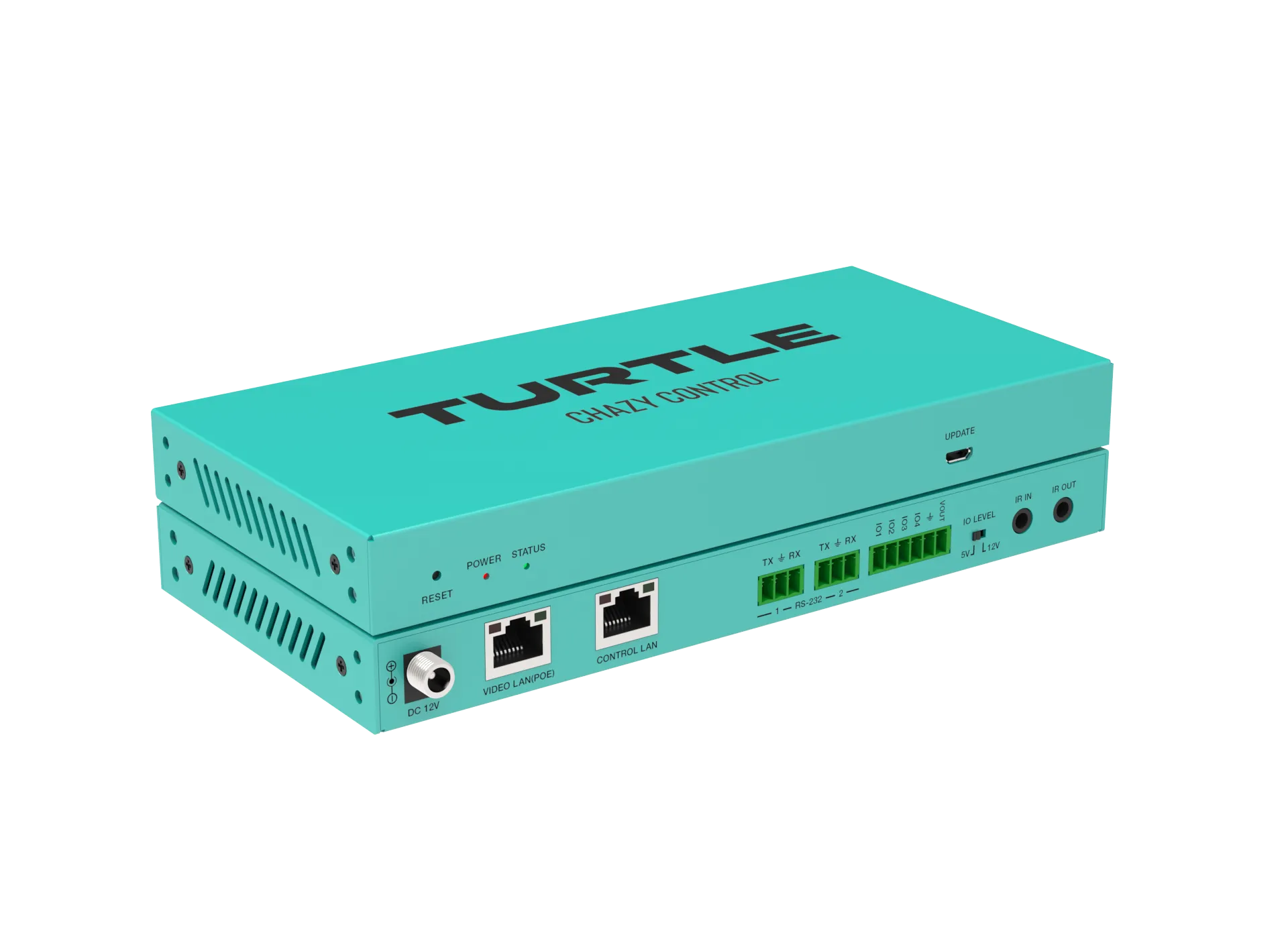

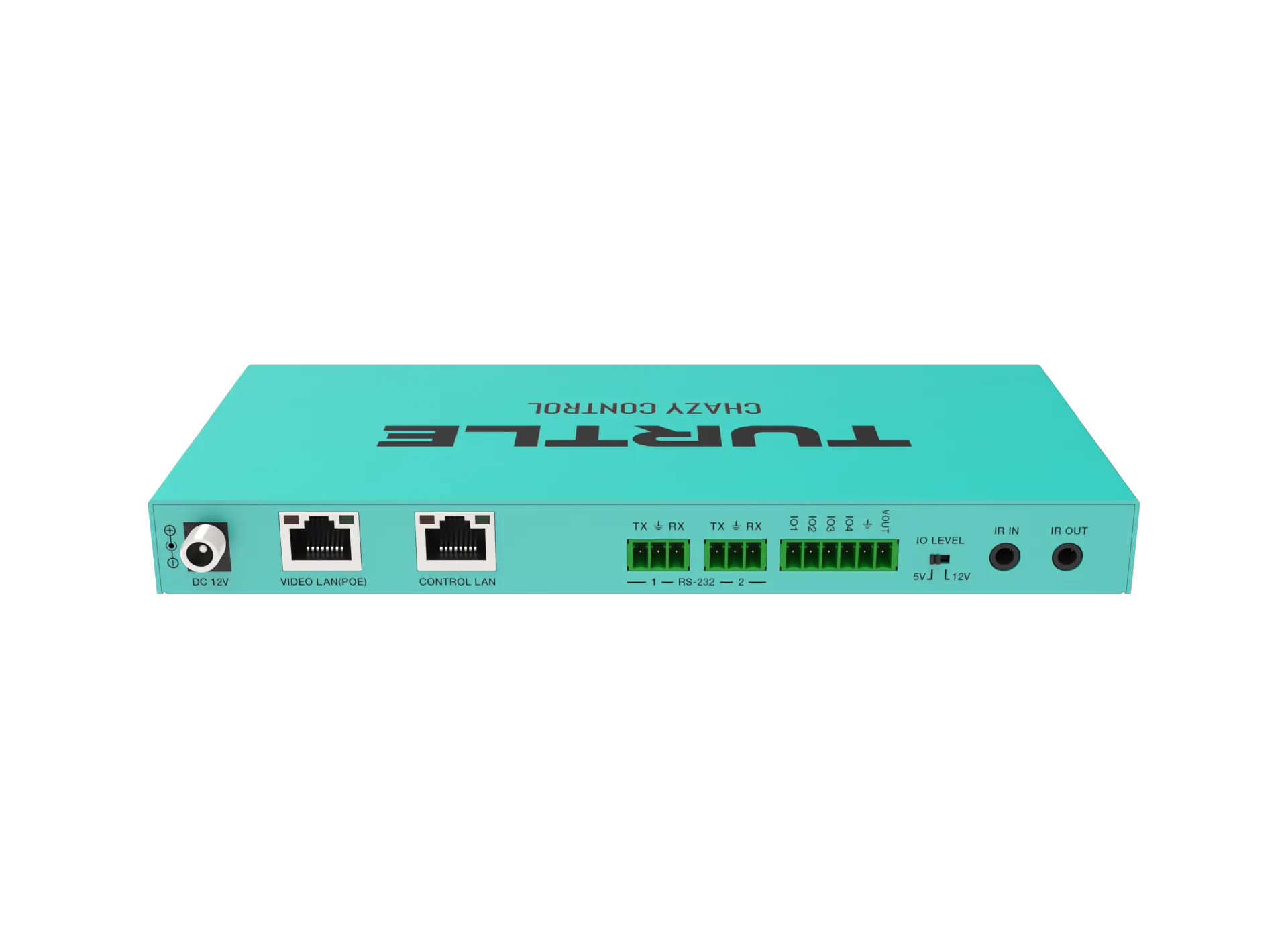

The WebGUI handles true multicast routing, video wall configurations up to 9x9, KVM and the rest of the Chazy feature set, which makes it the piece that turns a set of encoders and decoders into a system an integrator can hand over. It shares the compact metal chassis used across the Chazy control-tier hardware.
| Housing | Metal enclosure |
|---|---|
| Dimensions | 204mm [W] x 98.5mm [D] x 21.5mm [H] |
| Weight | 508g |
| Power Supply | Input: AC100-240V 50/60Hz |
| Power Consumption | 2W |
| Color | Turtle Aqua |
| Operating Temperature | 32 - 104° F / -20 - 60° C |
| Relative Humidity | 20% - 90% RH (no condensing) |
