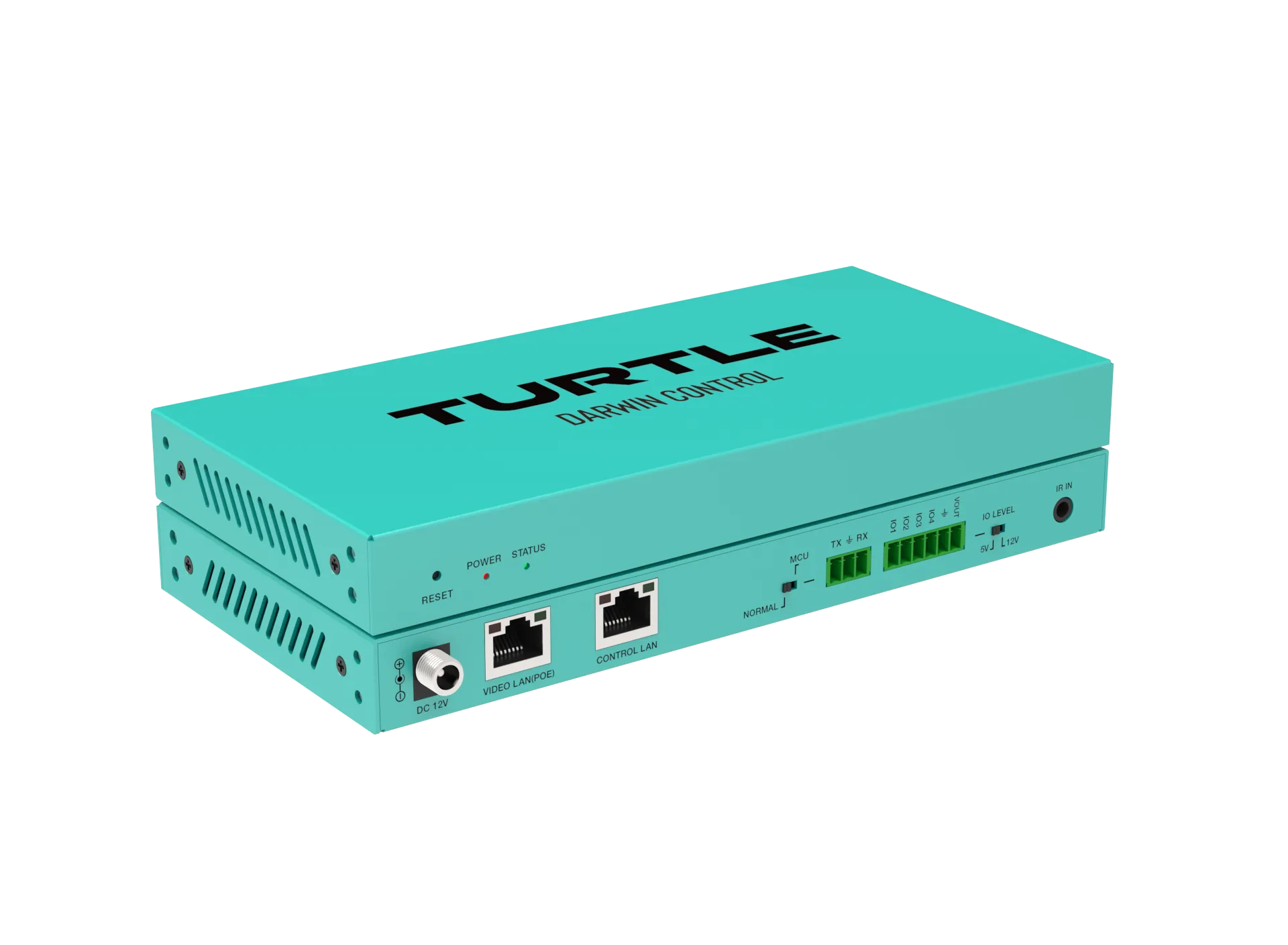

TurtleAV Darwin Control Controller for Darwin HD Systems

The Darwin Control box is the system controller for TurtleAV's Darwin HD range. It presents the routing and management surface for the transmitters and decoders on the network and holds the access control for them, so an installed system has one place to be configured and one place to be locked down.

HTTPS and SSH secure the management path and AES256 protects the video. Dual 1G network ports with PoE, dual RS-232 ports and IR signal support handle integration, and the API is compatible with Q-SYS, Crestron and other professional control platforms.

HousingMetal enclosure
Dimensions204mm [W] x 98.5mm [D] x 21.5mm [H]
Weight508g
Power SupplyInput: AC100-240V 50/60Hz
Power Consumption2W
ColorTurtle Aqua
Operating Temperature32 - 104° F / -20 - 60° C
Relative Humidity20% - 90% RH (no condensing)
