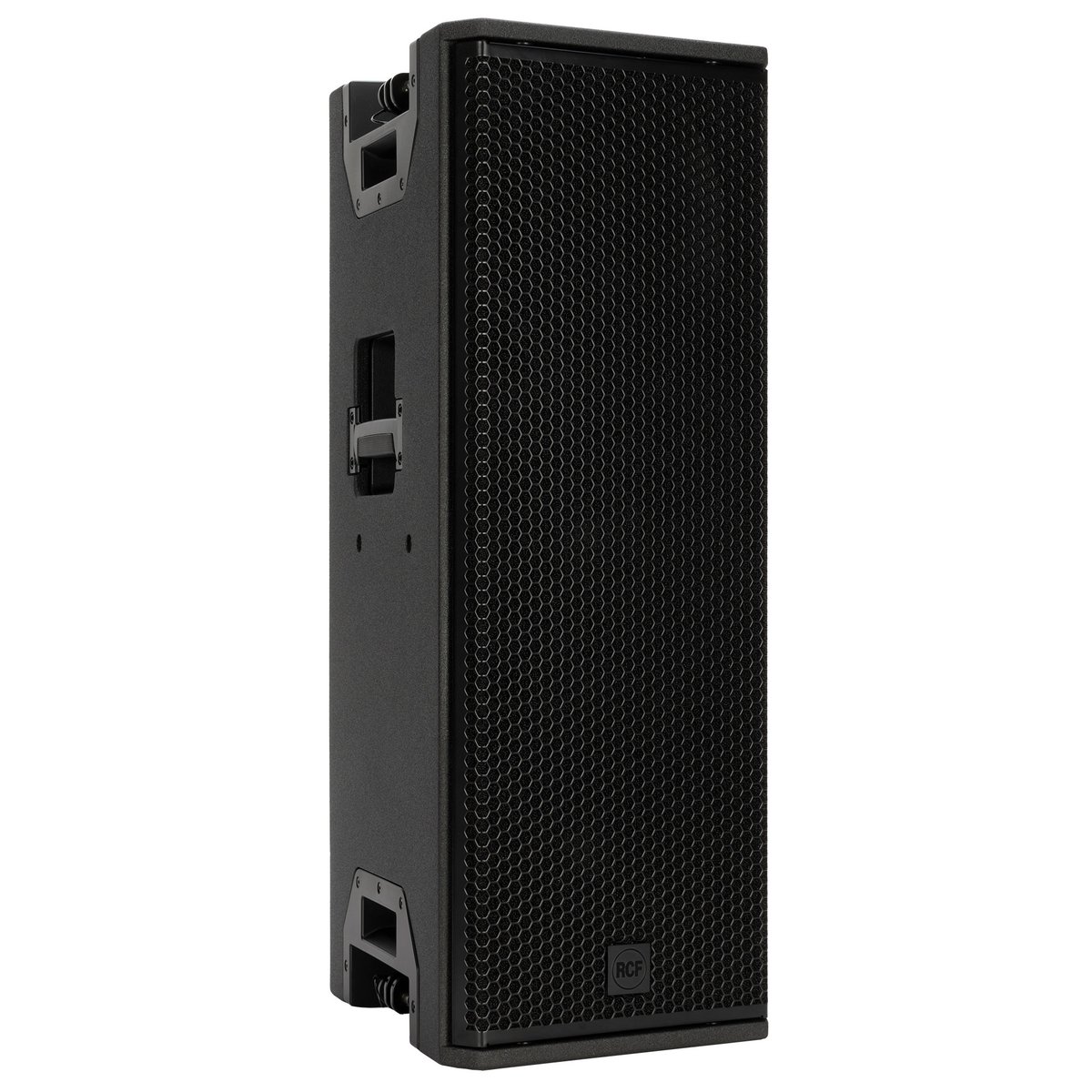

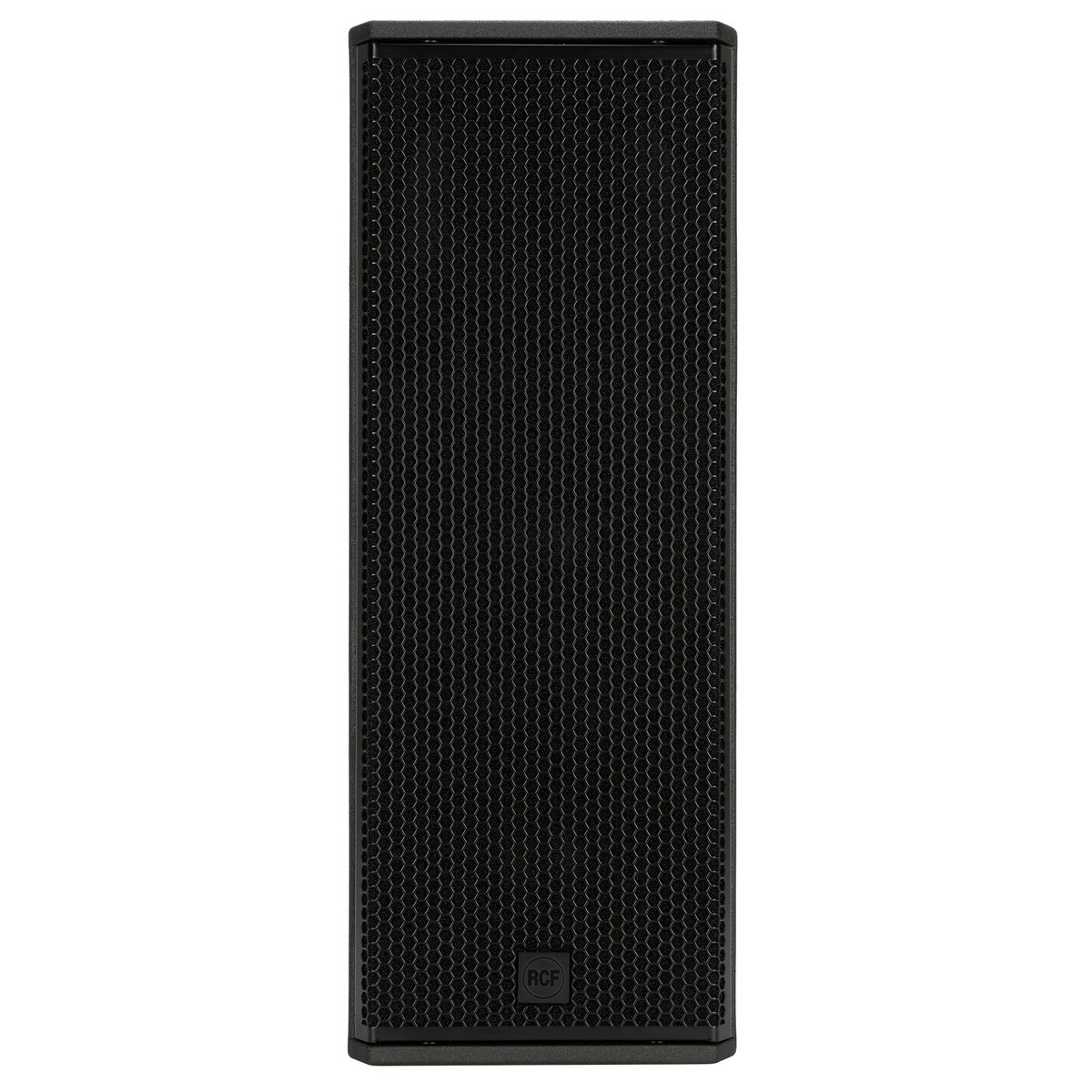

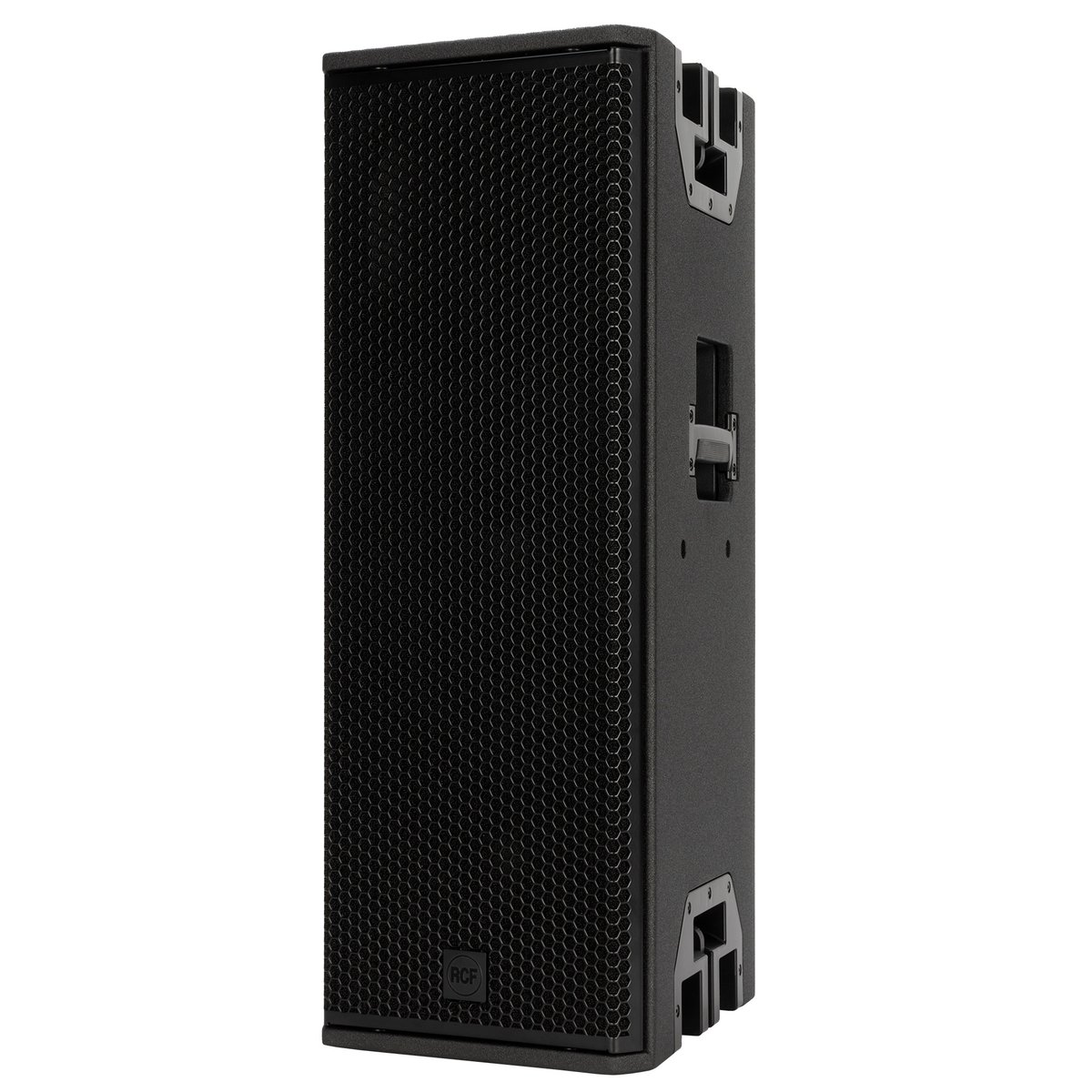

RCF KXL 4-A Active Two-Way Array Speaker

The KXL 4-A is the array member of the KX family, built for engineers who assemble coverage from several boxes rather than one. Two 10-inch neodymium woofers on 3-inch voice coils and a compression driver with a 4-inch titanium dome sit behind a rotatable 100 by 25 degree True Resistive Waveguide, and the rigging supports both vertical hangs and horizontal clusters.

A 3200 W peak amplifier gives 135 dB at one meter from 45 Hz to 20 kHz, with the crossover at 900 Hz. RDNet over Ethercon controls the whole array from one session, mains use Powercon TRUE1 TOP, and the Baltic birch cabinet weighs 67.02 lbs.
