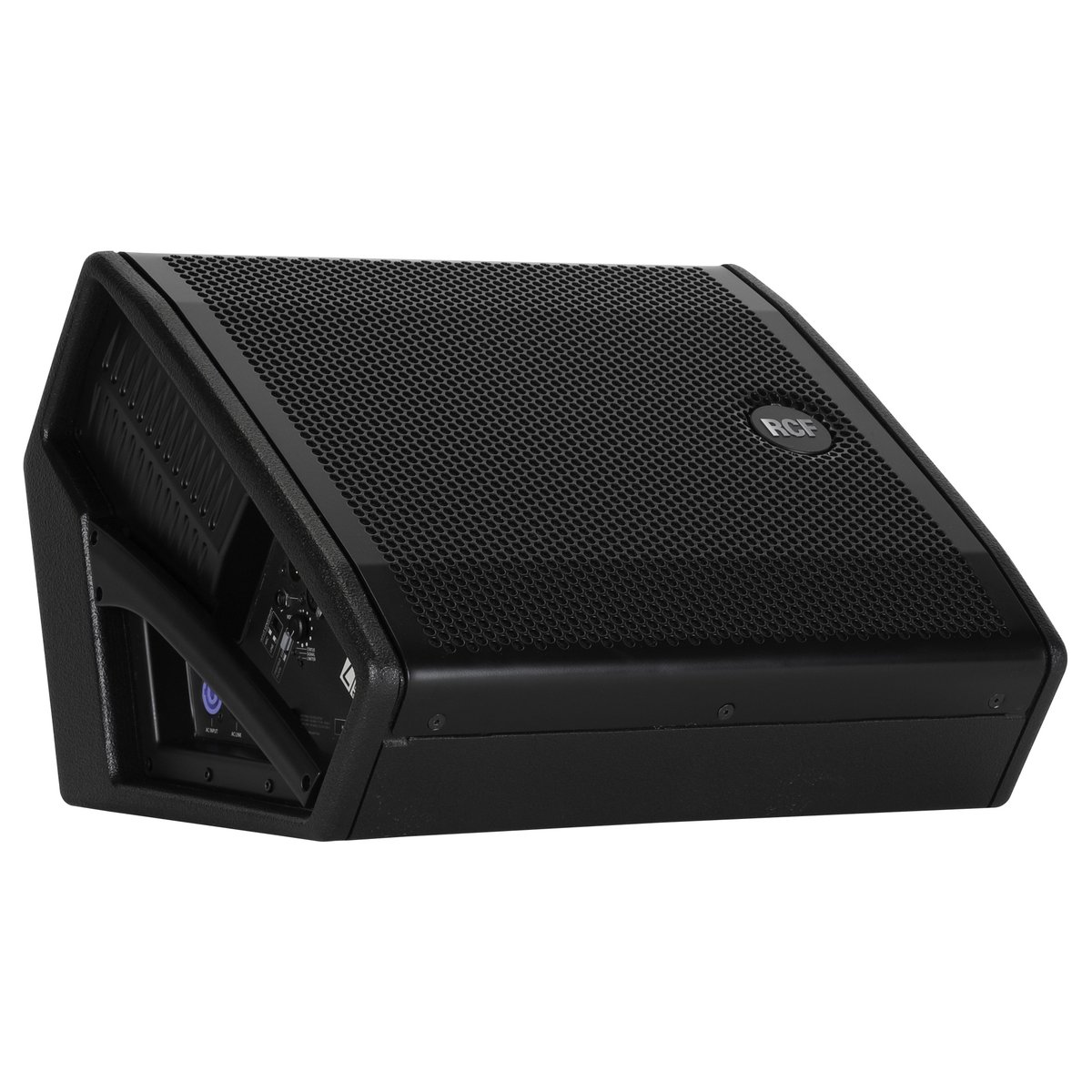

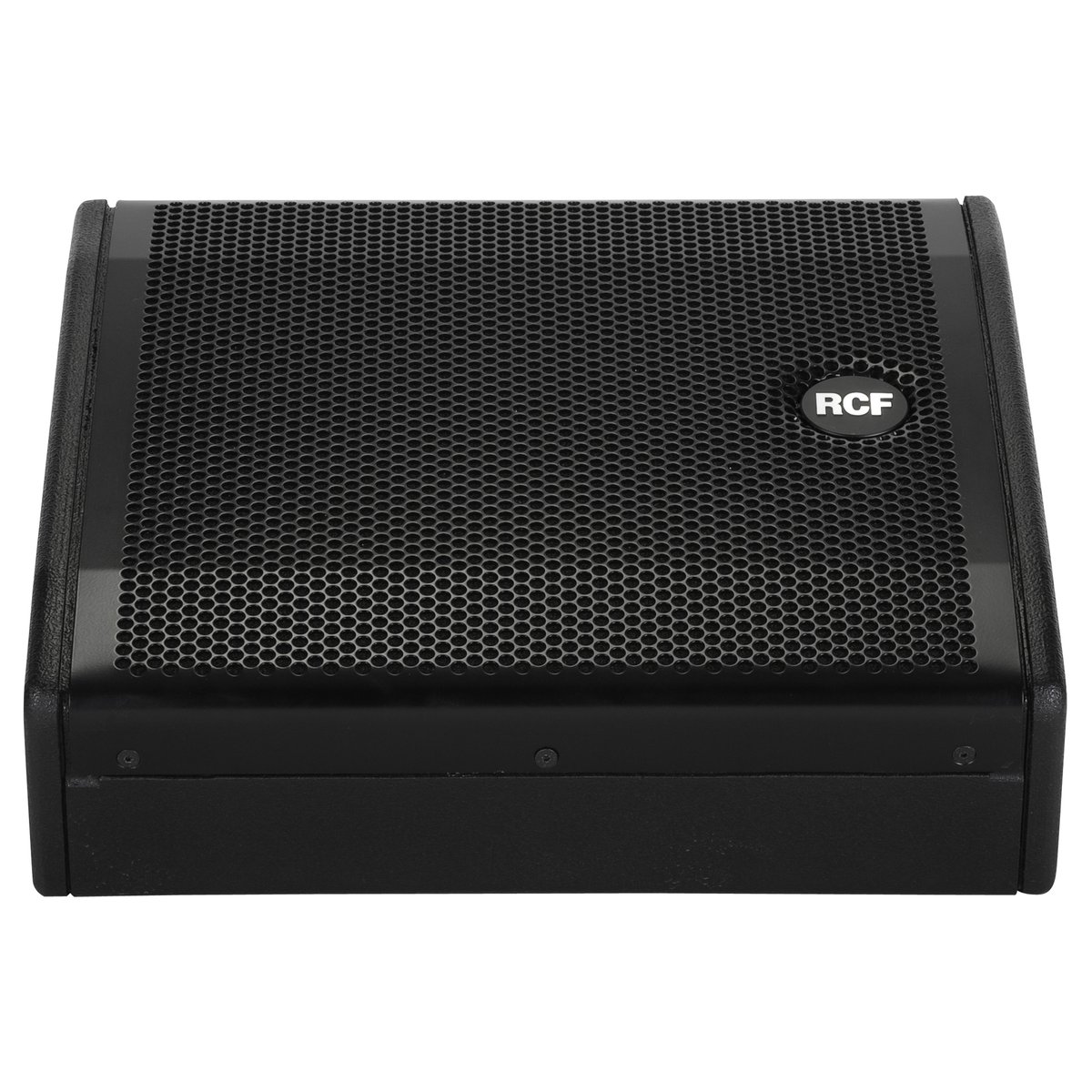

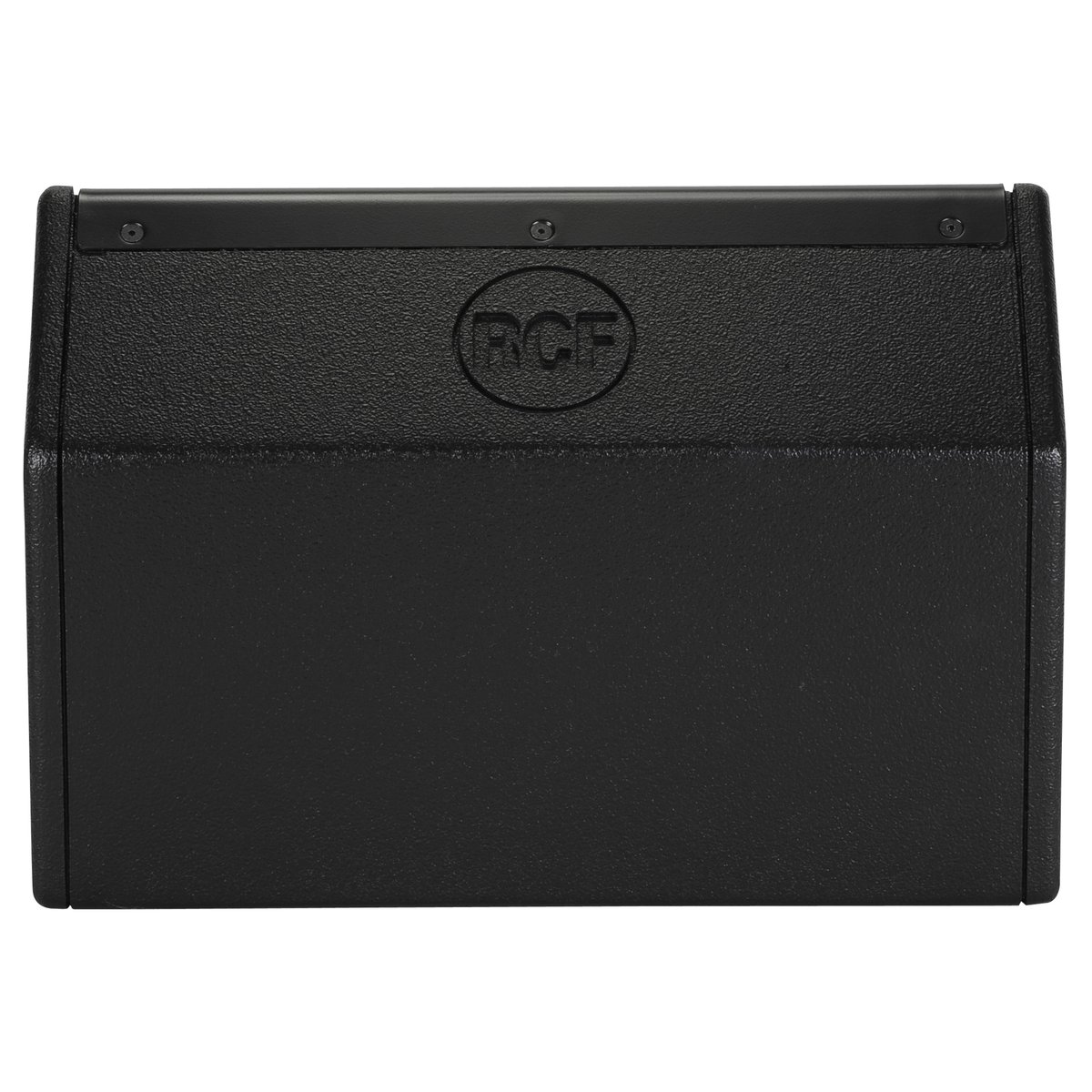

RCF NX 10-SMA Active Coaxial Stage Monitor

The NX 10-SMA is a 10-inch coaxial neodymium stage monitor, which is the point: a single acoustic source means the performer hears the same balance whether they are on the wedge or two steps off it. The Coaxial 1.0-inch neo, 1.75-inch voice coil compression driver sits on the woofer axis, giving a symmetrical 60° pattern with no lobing between the drivers.

A 800 W Peak, 400 W RMS digital amplifier drives it, reaching 127 dB at one metre, and neodymium transducers keep the cabinet light enough to move around a stage repeatedly at 14.3 kg / 31.53 lbs. The rear panel switches between free-field and floor response so the same box works as a wedge or on a pole as a fill.
