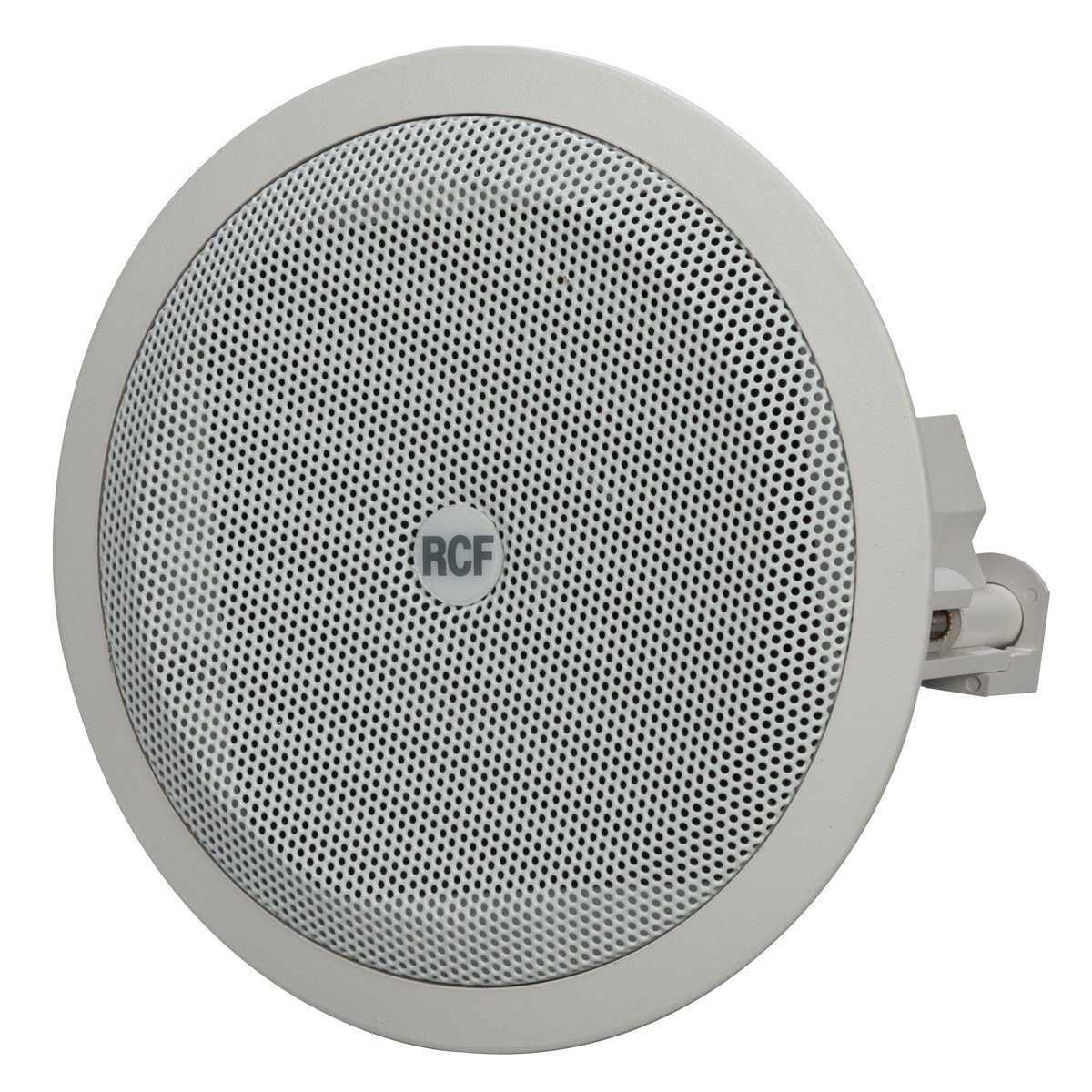

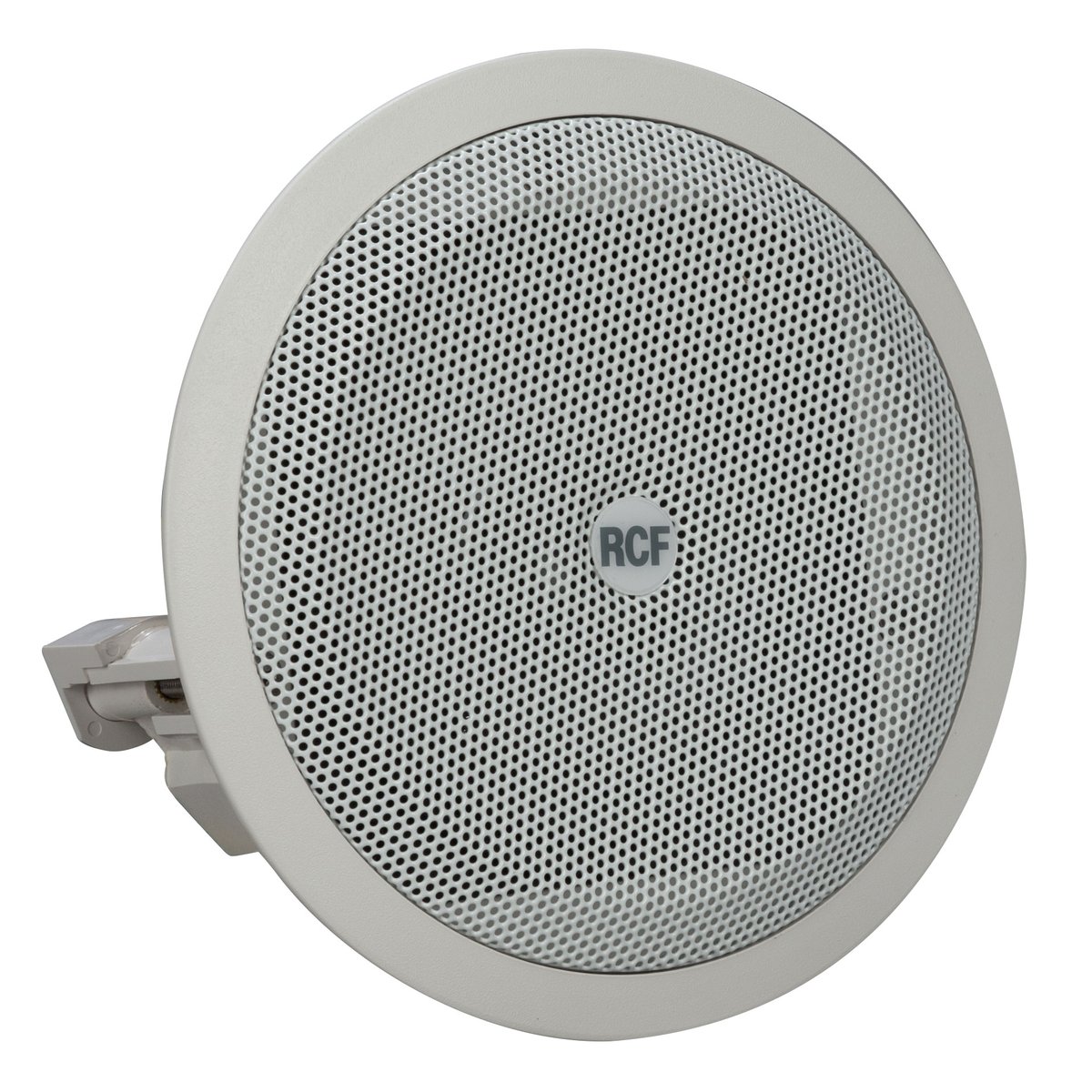

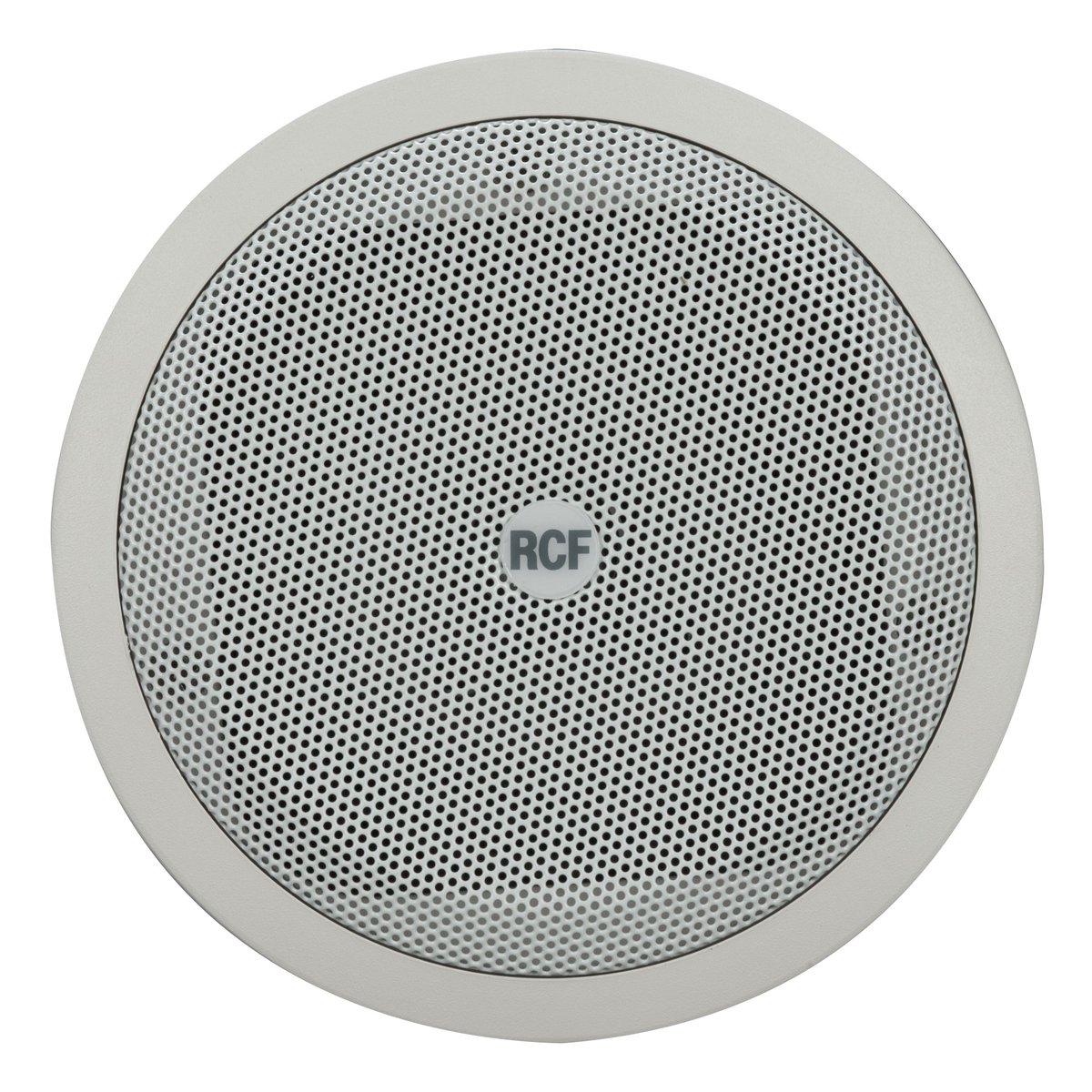

RCF PL 40 Ceiling Speaker

The PL 40 is the smallest of RCF's flush-mount ceiling speakers, a 3.5-inch full-range driver in a 130 mm plastic frame for false ceilings and panels. A line transformer with multiple taps connects it directly to a 100 V distributed system, so you set the per-speaker power at the terminal rather than at the amplifier.

Installation uses a threaded clamp system that needs no separate hardware, and the IP 44 rating means it survives covered outdoor areas and damp rooms. Response runs 90 Hz to 20 kHz at -10 dB with 120 degree coverage and 88 dB sensitivity, handling 8 W RMS. Each unit weighs 0.84 lbs.

Frequency Response (-10 dB)90 Hz - 20000 Hz
Max SPL at 1 m100 dB
Coverage Angle120 degrees
Fullrange1 x 3.5-inch
Power Handling8 W RMS
System Sensitivity88 dB
Line Transformer100 V
InputsScrew Terminals
OutputsScrew Terminals
