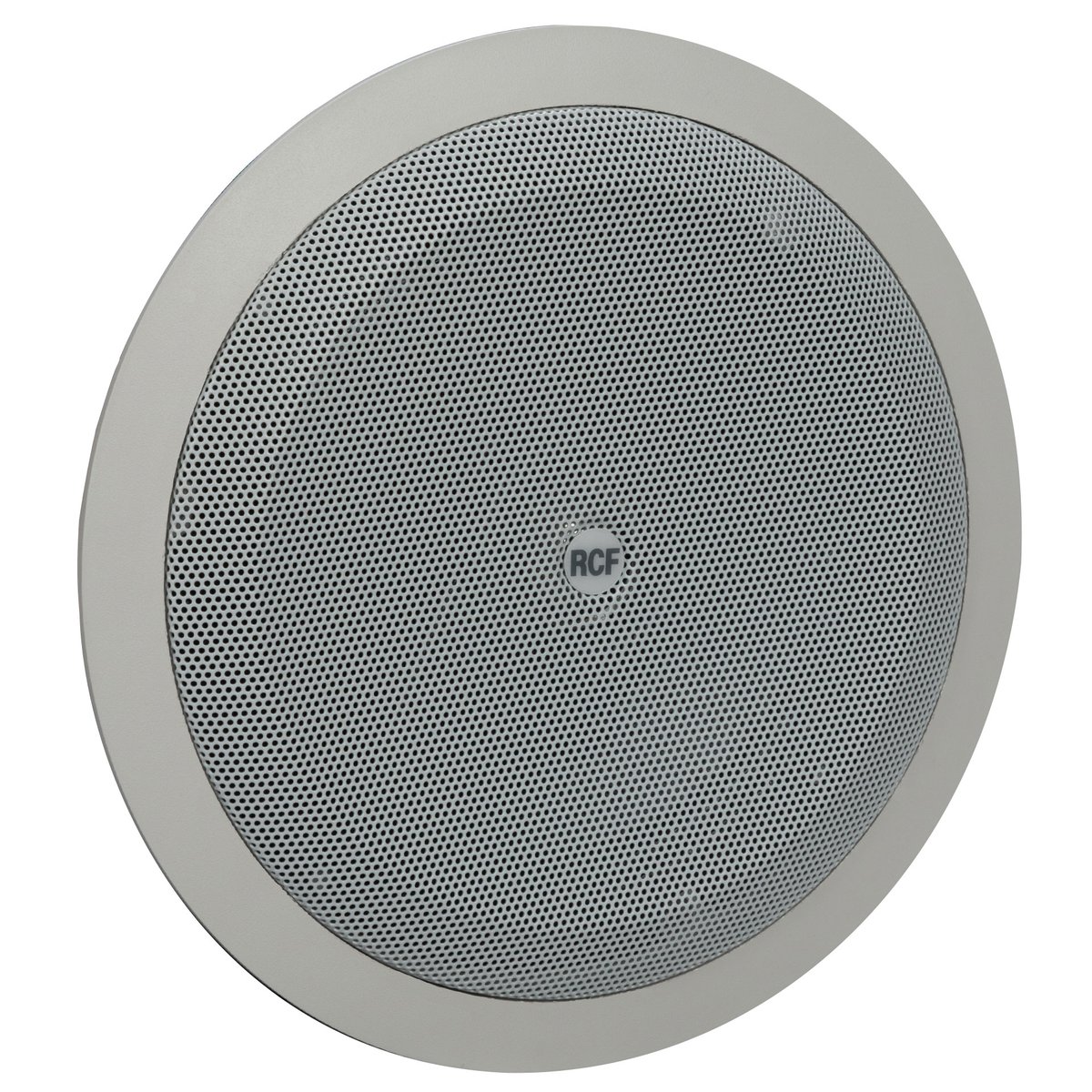

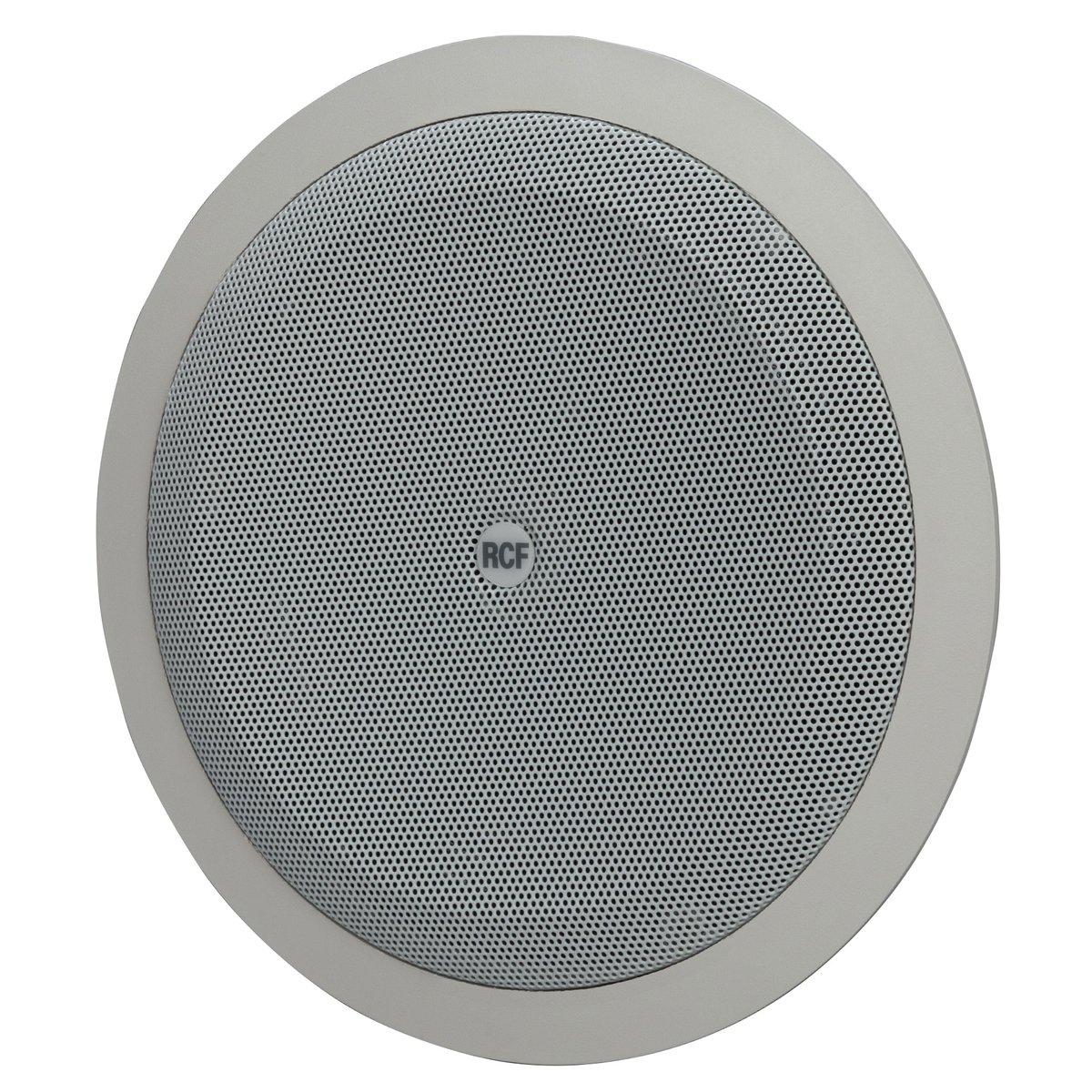

RCF PL 6X Coaxial Ceiling Speaker
The PL 6X is the coaxial member of the PL range: a 6-inch woofer with a 1-inch tweeter on a bridge support at the cone's center. That gets real high-frequency extension out of a ceiling speaker, taking the response to 70 Hz to 20 kHz at -10 dB instead of the rolled-off top a dual-cone driver gives you. Sensitivity is 92 dB and max SPL is 106 dB at one meter.

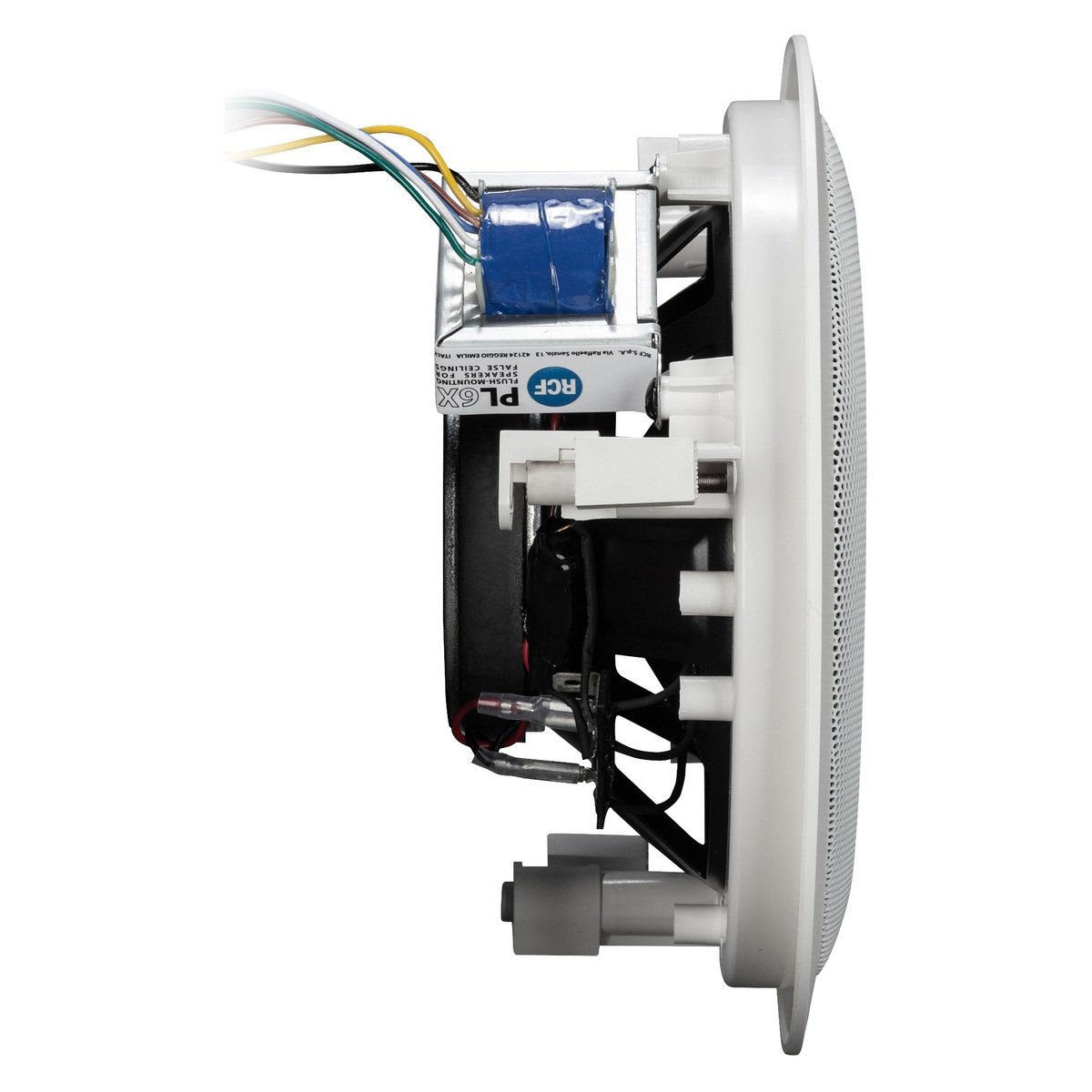

A multi-tap line transformer handles 70 V and 100 V systems, and the threaded clamp mounting needs no extra hardware. The IP 44 rating covers damp and sheltered outdoor locations. The 204 mm plastic frame weighs 1.72 lbs and handles 12 W RMS. Available in white or black.
| Frequency Response (-10 dB) | 70 Hz - 20000 Hz |
|---|---|
| Max SPL at 1 m | 106 dB |
| Coverage Angle | 100 degrees |
| Woofer | 6.0-inch |
| Power Handling | 12 W RMS |
| System Sensitivity | 92 dB |
| Line Transformer | 70/100 V |
| Inputs | Screw Terminals |
| Outputs | Screw Terminals |
