MuxLab 500467 HDMI to USB 3.0 Video Capture & Streamer

The 500467 accepts an HDMI source at up to 4K/60 and downscales it to stream at up to 1080p/60 to a PC over USB 3.0. It presents as a UVC 1.0 device, so it works with standard capture and conferencing software without a vendor driver.

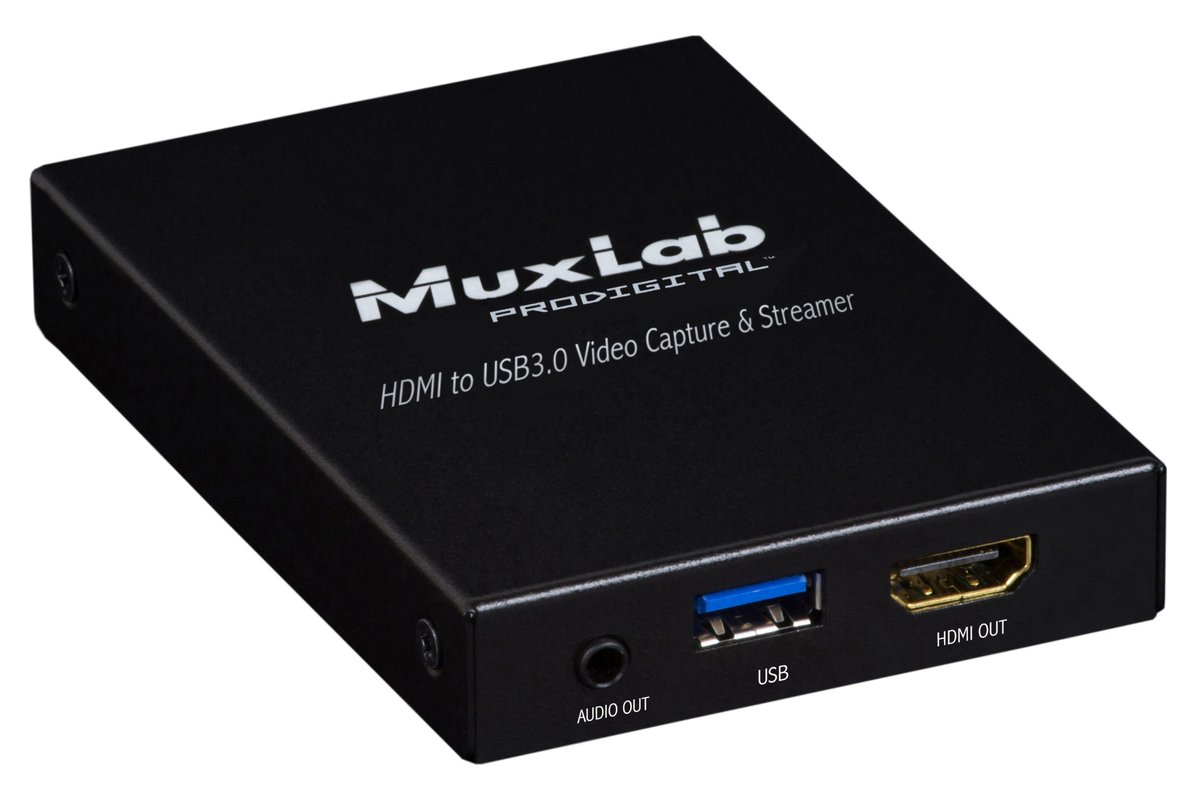

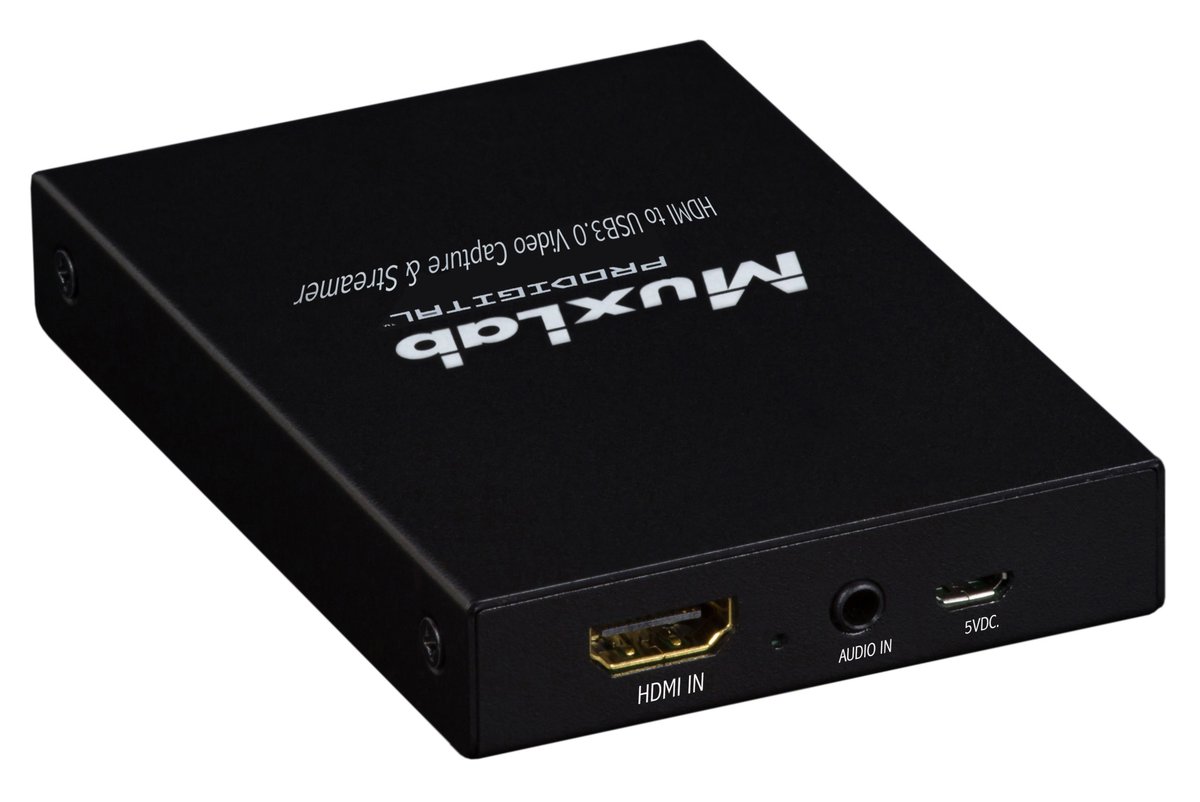

An HDMI loop-out drives a local monitor at full resolution while the stream runs, and the unit auto-detects the incoming video format. H.264 is supported, and an audio input allows a separate microphone or mixer feed to be combined with the source.

Standard	HDMI 1.3, UVC1.0
Signal Format	HDMI 1.3 protocol, UVC1.0
Bandwidth	Up to 350 Mbps (over USB)
Audio	Signal 2 channel 16bit PCM (via HDMI input interface) and 3.5mm 2 channel analog audio input
Power Supply	One (1) 110-240V/5VDC @ 2A power supply Consumption 3W (max)
Temperature	Operating: 0 deg to 40 deg C Storage: -20 deg to 60 deg C
Humidity	20 to 90% non-condensing
Compliance	Regulatory: FCC, CE, RoHS Flammability: 94V0
