MuxLab 100512 Video Capture & Recorder
The 100512-V2 records HDMI sources straight to a USB flash drive or removable hard drive. Input is accepted at up to 1080p/60 and recording runs at up to 1080p/30, which covers lecture capture, game consoles, set-top boxes, and camera feeds without putting a computer in the signal path.

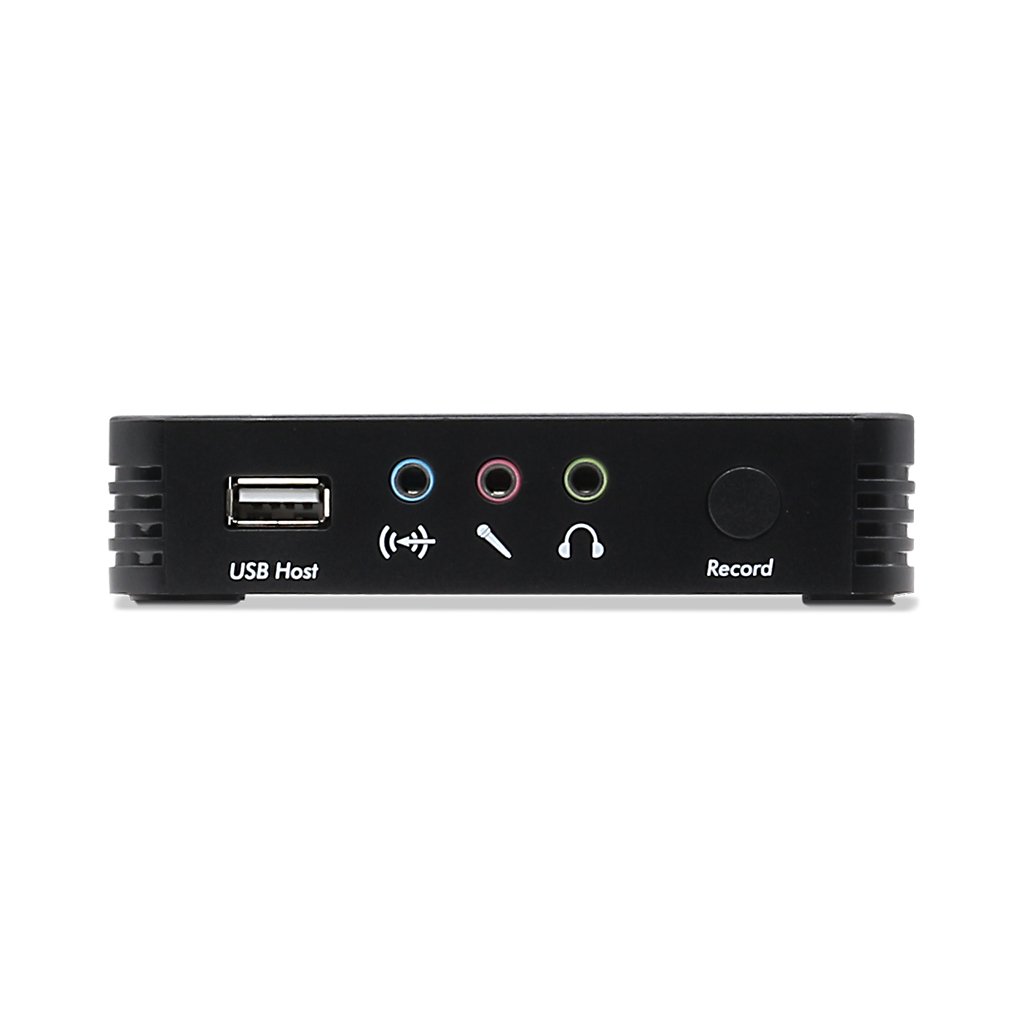

Operation is a single button, and a mic input mixes a presenter's voice with the source audio while a headphone output lets you monitor the mix. The unit is HDCP compliant. Storage is whatever drive you plug in, so run length is limited by the media rather than by internal memory.
| Standard | HDMI 1.3 |
|---|---|
| Signal Format | HDMI 1.3 protocol and HDCP 1.4 |
| Bandwidth | 148 MHz |
| Audio | Signal Up to16bit 48KHz dual channel (via HDMI input interface) and 3.5mm analog audio input |
| Power Supply | One (1) 110-240V/12VDC power supplies |
| Dimensions | 4.8" x 2.9" x 0.6" (12.20 x 7.37 x 1.5 cm) |
| Weight | 0.6 lbs (0.27 kg) |
| Enclosure | Metal |
