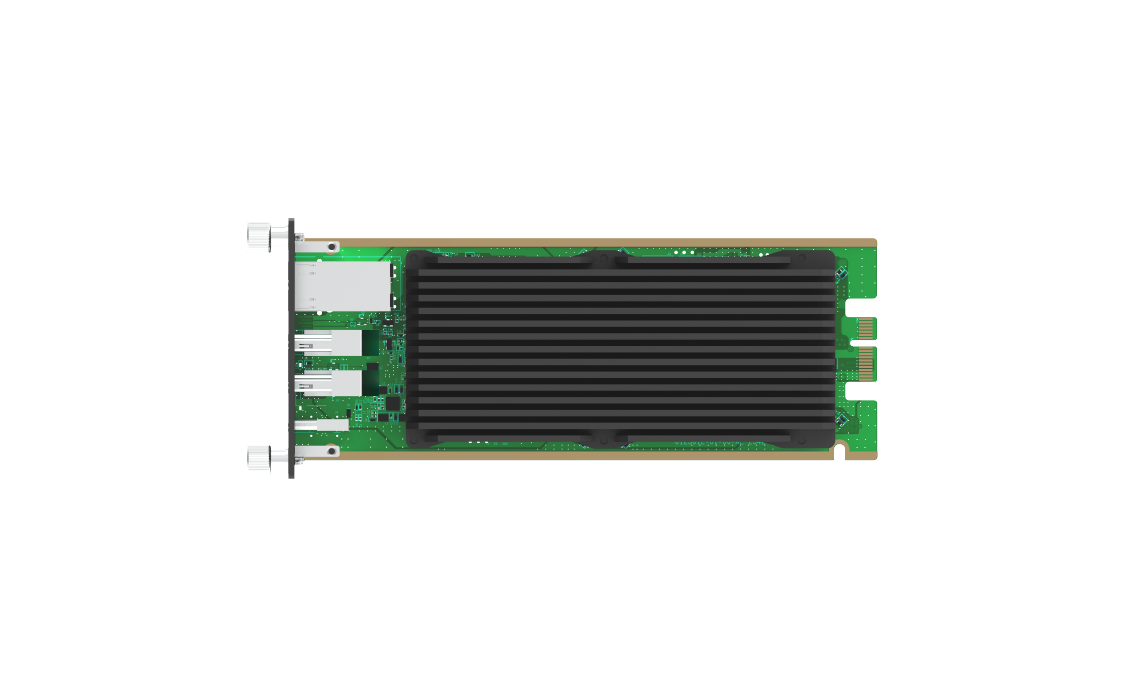

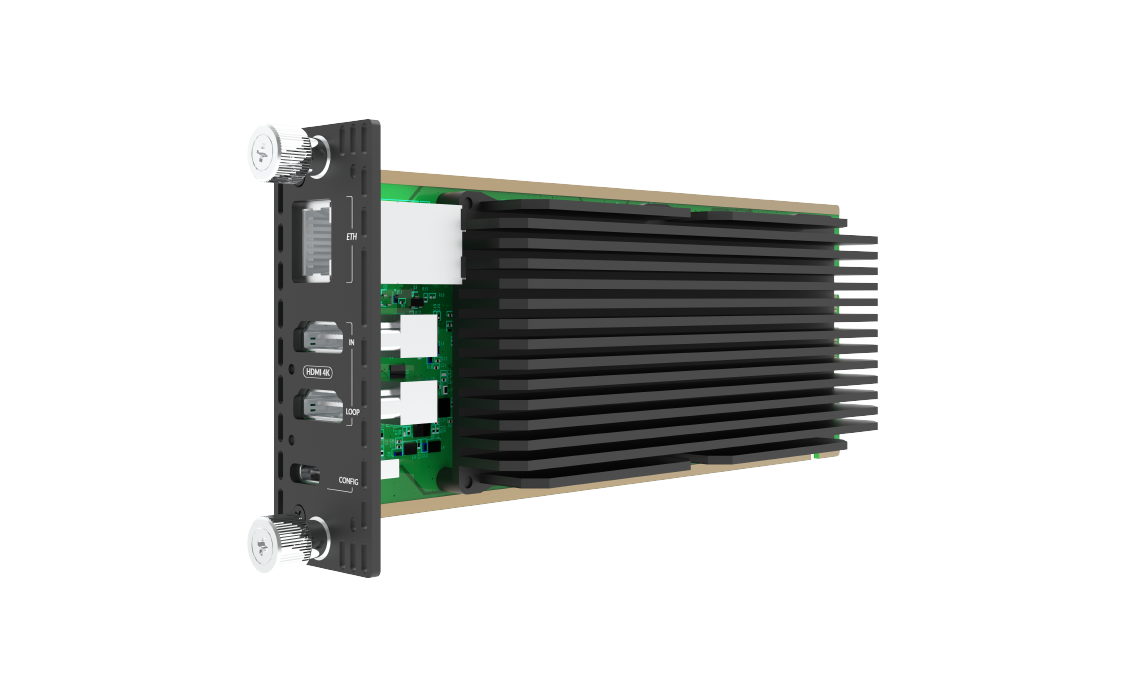

Magewell Pro Convert HDMI 4K Plus Module (B4011)

Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI with loop-through. Connections: 1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* HDMI 2.0 input port; 1* HDMI 2.0 output port. Signal handling: Encode and output real-time streams of NDI High Bandwidth at up to: 4096x2160 60fps 4:2:2 8-bit; 1920x1080 240fps 4:2:2 8-bit.

Setup and monitoring: Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI. It measures 184.4mm (L) x 30.0mm (W) x 81.5mm (H). Power: Max power consumption: 7W.

Part Number	B4011

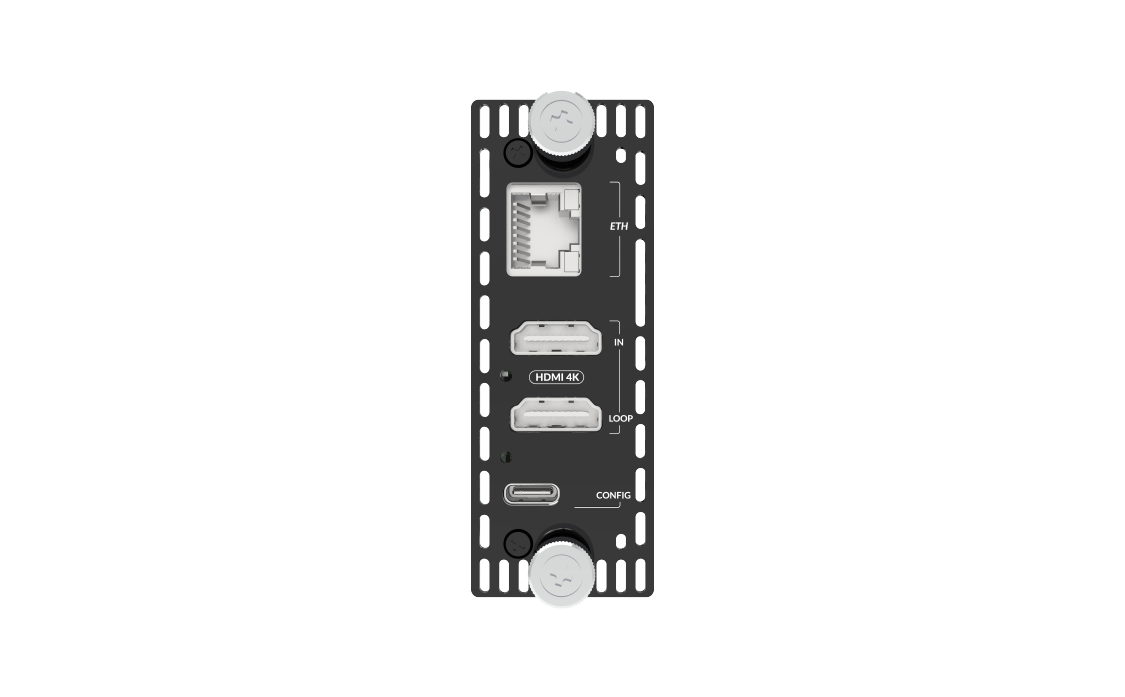

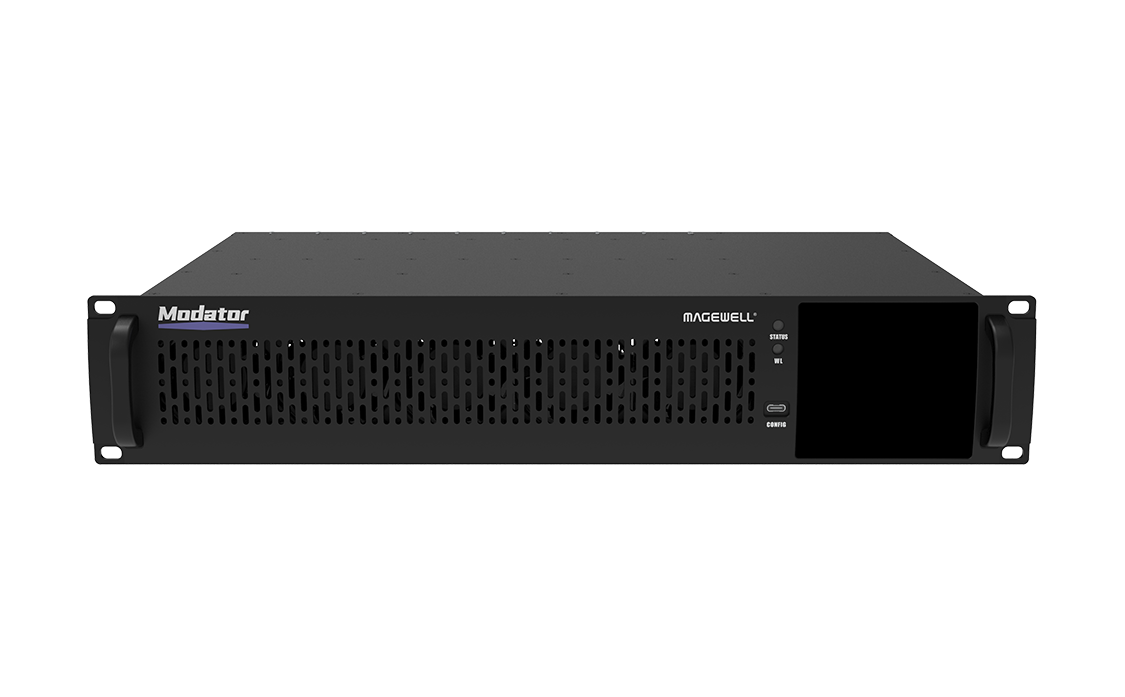

Interfaces	1* RJ45 1000Mbps Ethernet port; 1* USB Type-C port for configuration; 1* HDMI 2.0 input port; 1* HDMI 2.0 output port; 1* Modator interface for connecting to Modator 2U (hot-swappable)
NDI Encoding Features	Encode and output real-time streams of NDI High Bandwidth at up to: 4096x2160 60fps 4:2:2 8-bit; 1920x1080 240fps 4:2:2 8-bit
Control	Register with Magewell Control Hub for remote centralized management; Supports configuring and managing via Web UI
Form Factor	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H); Weight: approx. 295g
Power	Max power consumption: 7W
Operating Range	Operating temperature: 0 to 50 deg C; Storage temperature: -20 to 70 deg C; Relative humidity: 5% to 90% non-condensing
