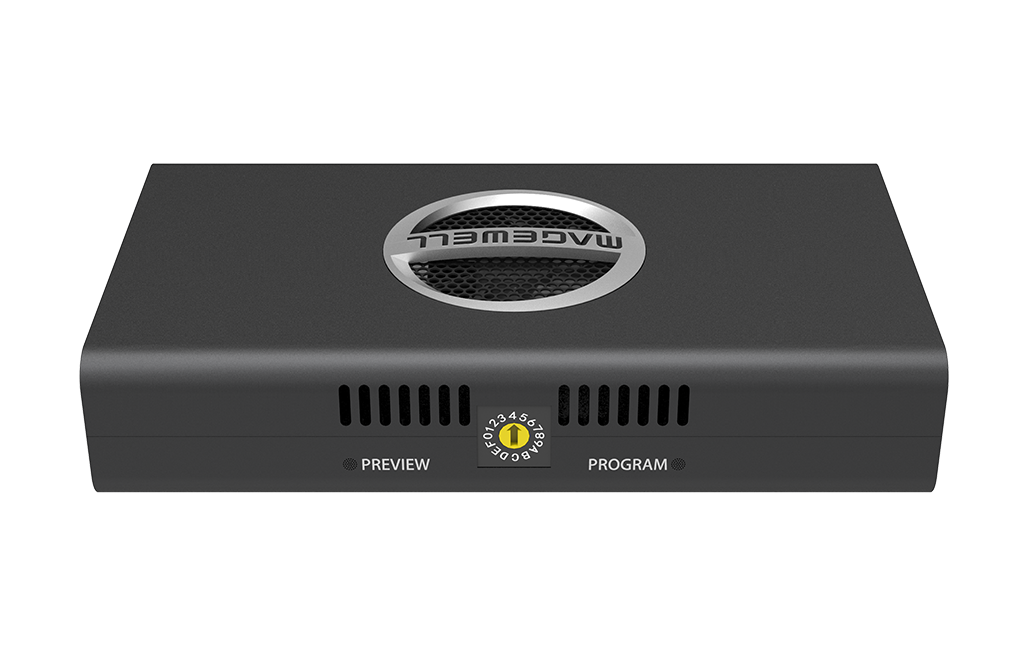

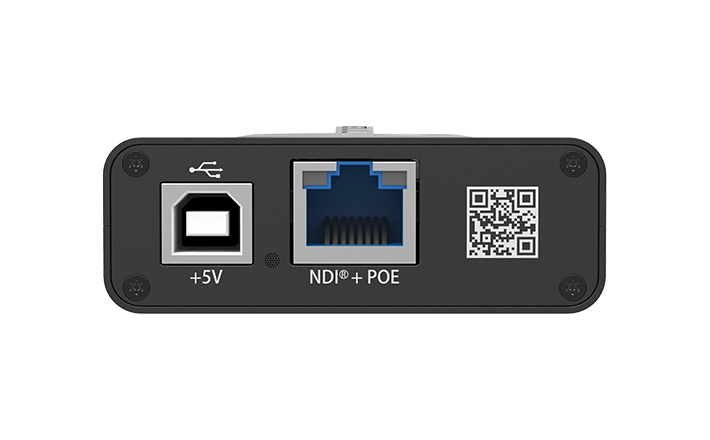

Name: Magewell Pro Convert HDMI Plus NDI Encoder (64020)
Brand: Magewell
SKU: 64020
Price: 655.00 USD
Availability: InStock

Pro Convert HDMI Plus converts an HD HDMI input signal into Full NDI with loop-through. Connections: Max input and loop through signal: 4096x2160 30fps 4:4:4/4:2:2; 4096x2160 60fps 4:2:0; Input video at any format by custom EDID of input port. Signal handling: Encoding NDI High Bandwidth real-time stream at up to 2048x2160 120fps 4:2:2 8-bit.

Networking: 10/100/1000Mbps Ethernet; IEEE 802.3af PoE. Setup and monitoring: Register with Control Hub; Remote control via WebUI and Control Hub; Provide comprehensive information regarding the device and input signals in real-time. It measures 117.5mm (L) x 66.7mm (W) x 23.4mm (H). Power: 5V max current: ~1.5A; Max power consumption: ~8W. In the box: USB 2.0 A to B cable; 5V/2.1A power adaptor; Mini-DIN 8 breakout cable; Tally light; L-bracket.

Part Number	64020
Input and Loop through Features	Max input and loop through signal: 4096x2160 30fps 4:4:4/4:2:2; 4096x2160 60fps 4:2:0; Input video at any format by custom EDID of input port; Video formats: RGB, YUV BT.601/709/2020
USB Interface	USB2.0 Type B 5V/2.1A power supply; USB RNDIS/ECM
NDI Encoding Features	Encoding NDI High Bandwidth real-time stream at up to 2048x2160 120fps 4:2:2 8-bit
Network Interfaces	10/100/1000Mbps Ethernet; IEEE 802.3af PoE
Configuration Management	Register with Control Hub; Remote control via WebUI and Control Hub; Provide comprehensive information regarding the device and input signals in real-time
Form Factor	117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Power	5V max current: ~1.5A; Max power consumption: ~8W
