Name: Magewell Ultra Encode HDMI Plus Module (B3151)
Brand: Magewell
SKU: B3151
Price: 655.00 USD
Availability: InStock

Ultra Encode HDMI Plus Module is an encoding module for rack-mounted centralized deployment. Connections: 1 x RJ45 1000Mbps Ethernet port; 1 x USB Type-C port for configuration; 2 x HDMI ports 1 x Input; 1 x Loop-through; 1 x 3.5mm LINE IN; 1 x 3.5mm LINE OUT. Signal handling: Video Bitrate: NDI HX3: up to 62.0Mbps, down to 1.5Mbps; Others: up to 32.0Mbps, down to 256kpbs; Dual-stream encoding: main stream and sub stream.

Networking: Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T; 4G/5G USB modem (not supplied); USB Net. Setup and monitoring: Register with Magewell Control Hub / Zixi ZEN Master for remote centralized management; Supports configuring and managing via Web UI. It measures 184.4mm (L) x 30.0mm (W) x 81.5mm (H). Power: Max power consumption: 13.08W.

Part Number	B3151

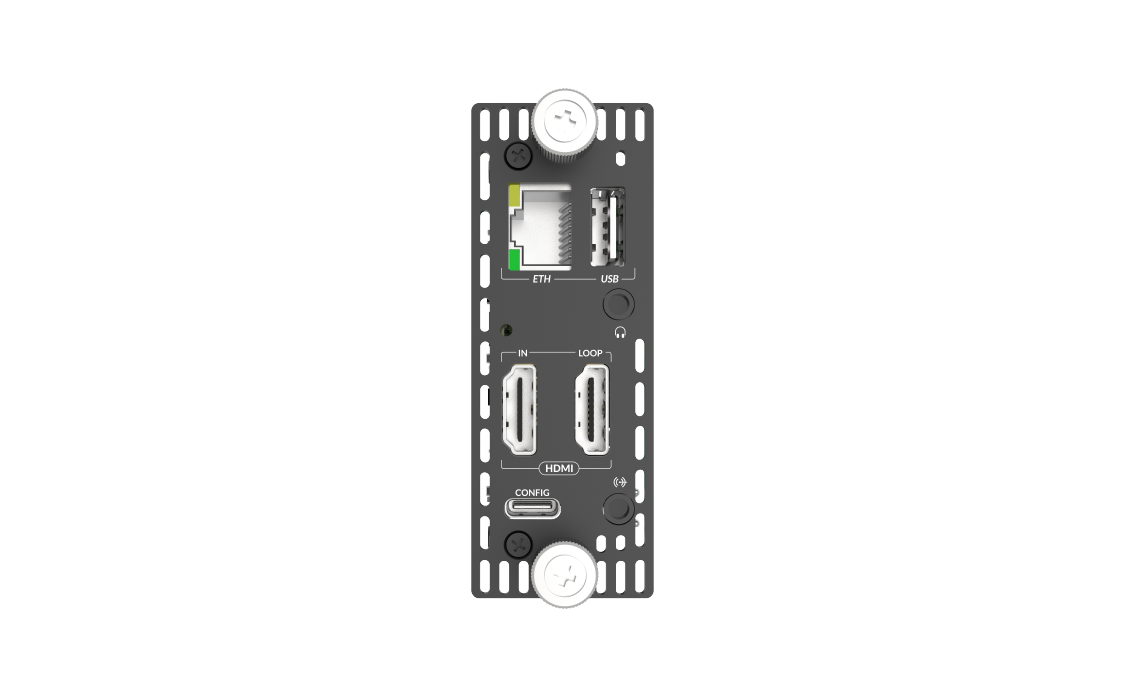

Input/Output Ports	1 x RJ45 1000Mbps Ethernet port; 1 x USB Type-C port for configuration; 2 x HDMI ports 1 x Input; 1 x Loop-through; 1 x 3.5mm LINE IN; 1 x 3.5mm LINE OUT; 1 x USB Type-A
Encoding Features	Video Bitrate: NDI HX3: up to 62.0Mbps, down to 1.5Mbps; Others: up to 32.0Mbps, down to 256kpbs; Dual-stream encoding: main stream and sub stream
Network Connections	Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T; 4G/5G USB modem (not supplied); USB Net
Record	Supports setting and managing recording function and tasks; Supports recording to local storage (128 GB) Supports format and performance test
Control	Register with Magewell Control Hub / Zixi ZEN Master for remote centralized management; Supports configuring and managing via Web UI; View real-time device status; Preview encoded video
Form Factor	Form factor: 184.4mm (L) x 30.0mm (W) x 81.5mm (H); Weight: approx. 307g
Power	Max power consumption: 13.08W
