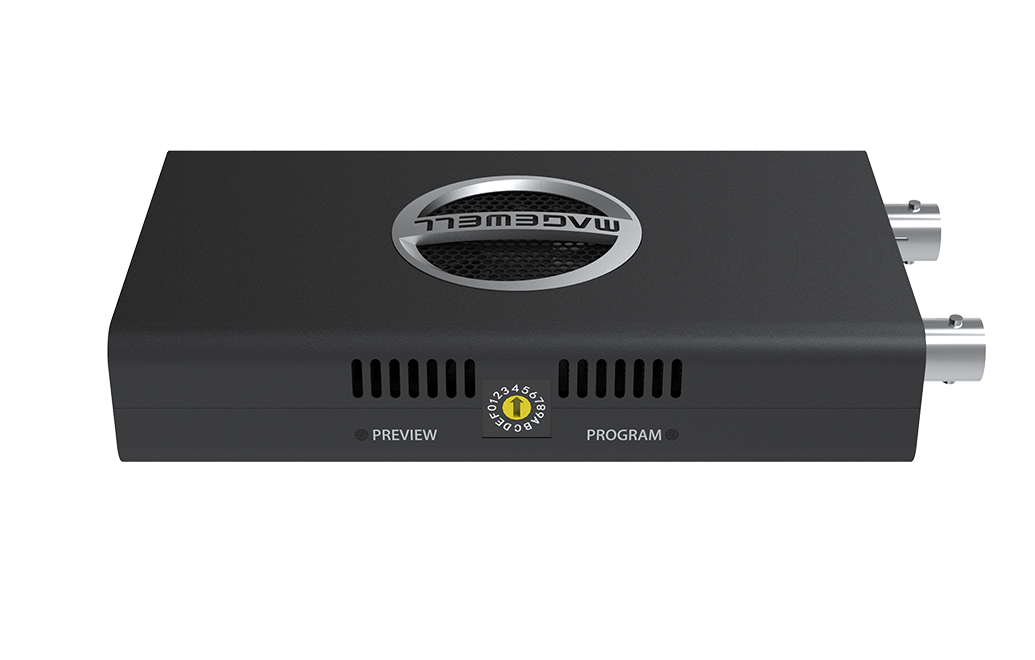

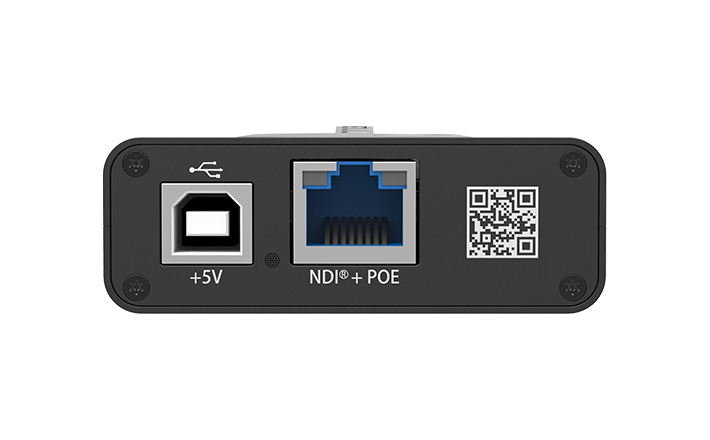

Name: Magewell Pro Convert 12G SDI 4K Plus NDI Encoder (64090)
Brand: Magewell
SKU: 64090
Price: 1099.00 USD
Availability: InStock

Pro Convert 12G SDI 4K Plus converts one channel of 12G-SDI video up to 4Kp60 into Full NDI with loop-through. Connections: Max video input and loop through: 4096x2160 60fps. Supported resolutions include: 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60. Signal handling: Encoding NDI High Bandwidth real-time stream at up to 4096x2160 60fps 4:2:2 8-bit.

Networking: 10/100/1000Mbps Ethernet; IEEE 802.3af PoE. Setup and monitoring: Register with Control Hub; Remote control via WebUI and Control Hub; Provide comprehensive information regarding the device and signals in real-time. It measures 117.5mm (L) x 66.7mm (W) x 23.4mm (H). Power: 5V max current: ~1.65A; Max power consumption: ~8.5W. In the box: USB 2.0 A to B cable; 5V/2.1A power adaptor; Mini-DIN 8 breakout cable; Tally light; L-bracket.

Part Number	64090
Input and Loop through Features	Max video input and loop through: 4096x2160 60fps. Supported resolutions include: 4096x2160p/3840x2160p/2048x1080p/1920x1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60
USB Interface	USB2.0 Type B 5V/2.1A power supply; USB RNDIS/ECM
NDI Encoding Features	Encoding NDI High Bandwidth real-time stream at up to 4096x2160 60fps 4:2:2 8-bit
Network Interfaces	10/100/1000Mbps Ethernet; IEEE 802.3af PoE
Configuration Management	Register with Control Hub; Remote control via WebUI and Control Hub; Provide comprehensive information regarding the device and signals in real-time
Form Factor	117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Power	5V max current: ~1.65A; Max power consumption: ~8.5W
