Martin Audio SXCF118 18" Flyable Cardioid Subwoofer
SXCF118 is the flyable build of Martin Audio's 18-inch cardioid subwoofer. Acoustically it matches SXC118 to the decimal, an 18" forward driver and a 14" rear driver on separate amplifier channels producing 140dB peak from 43Hz, but the cabinet adds an integral rigging system that hangs up to 16 enclosures from a dedicated flying frame. It ground-stacks just as happily.
The difference you feel is in the shell: multi-laminate birch ply finished in textured black polyurea rather than paint, which is what takes the knocks on a touring cardioid array. Skids and mating top channels, an M20 pole-mount plate, bar handles on both sides and four transit cover fittings are all carried over. Weight rises to 75kg, or 78kg with the optional castors.
| Type | Compact cardioid subwoofer, flyable |
|---|---|
| Frequency Response | 43Hz - 150Hz +/- 3dB, -10dB at 34Hz |
| Drivers | 18" (460mm) ferrite forward, 14" (356mm) neodymium rearward, waterproof cones |
| Rated Power | 18": 1000W AES / 4000W peak, 14": 800W AES / 3200W peak |
| Sensitivity | 104dB |
| Maximum SPL | 140dB peak |
| Finish | Textured black polyurea over multi-laminate birch ply |
| Rigging | Integral system, up to 16 enclosures from a flying frame |
| Connectors | 2 x NL4 |

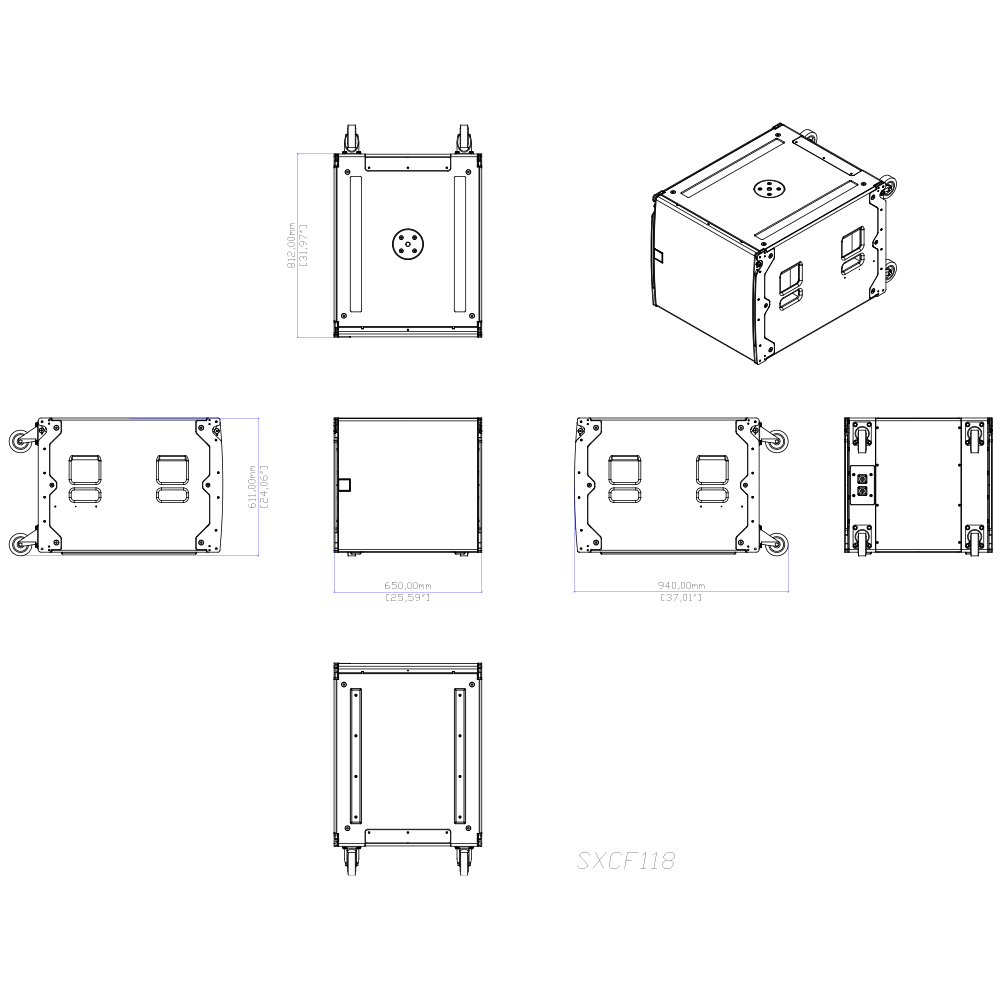

| Dimensions / Weight | 650 x 611 x 812 mm (25.6 x 24.1 x 32 in), 75kg (165lbs) |
