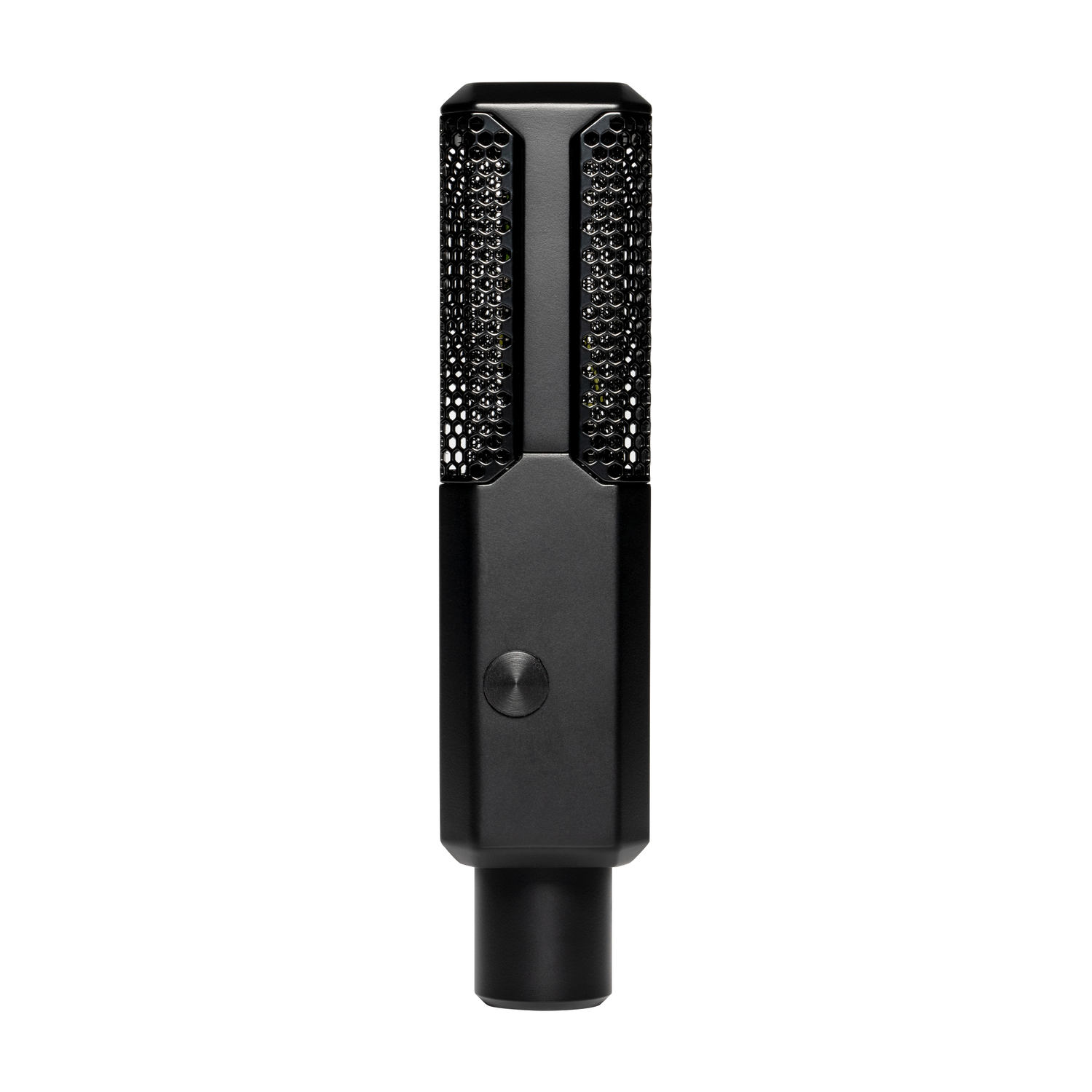

Lewitt LCT 640 TS Dual-Output Multi-Pattern Condenser Microphone
The LCT 640 TS runs as a conventional five-pattern condenser (omni, wide cardioid, cardioid, supercardioid, figure-8) or switches to Dual Output mode, where the front and back diaphragms of the capsule are sent out on two separate channels. Record both, and the polar pattern becomes a decision you make at mix time rather than at the session, including in-phase stereo from a single microphone.

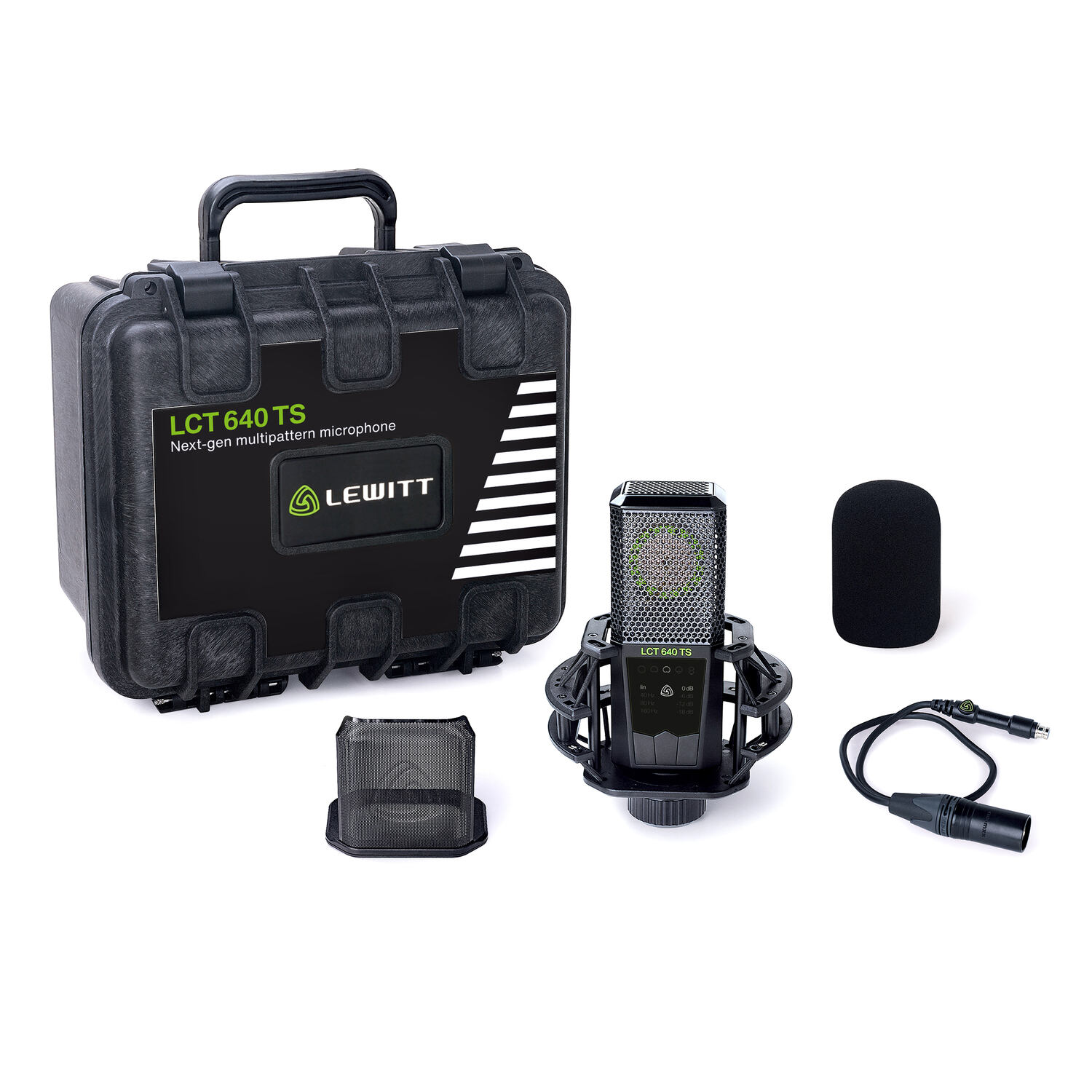

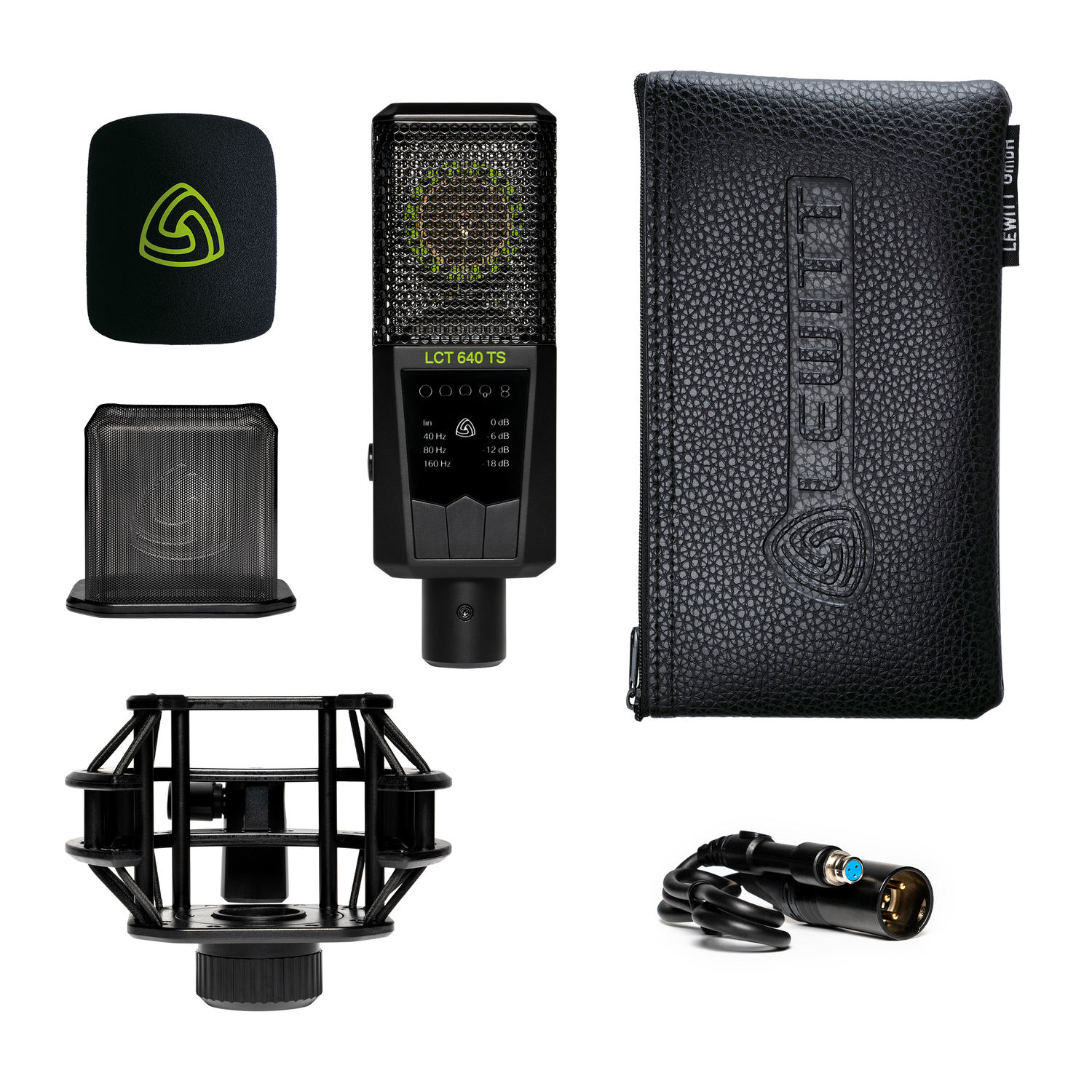

The capsule handles 134 dBSPL at 0.5% THD with four pad steps (0, -6, -12, -18 dB) and four low-cut settings down to 40 Hz. Connections are a gold-plated 3-pin XLR for normal use plus a mini 3-pin XLR that feeds the supplied TS adapter cable in dual mode. Shock mount, magnetic pop filter, foam windscreen, TS adapter cable, transport bag, and transport case are included.
| Acoustical Operating Principle | Pressure gradient transducer |
|---|---|
| Polar Patterns | Omni, wide cardioid, cardioid, supercardioid, figure-8 |
| Frequency Range | 20 - 20,000 Hz |
| Sensitivity | 31.4 mV/Pa, -30.1 dBV/Pa |
| Self Noise | 10 dB (A) |
| Max SPL (0.5% THD) | 134 dBSPL, 0 dB attenuation |
| Pad / Low Cut | 0, -6, -12, -18 dB; linear, 40 Hz, 80 Hz, 160 Hz |
| Connector | Gold plated 3-pin XLR plus mini 3-pin XLR |
| Dimensions / Weight | 158 x 52 x 36 mm; 425 g (14.9 oz) |
| Included | Shock mount, magnetic pop filter, foam windscreen, TS adapter cable, transport bag, transport case |
