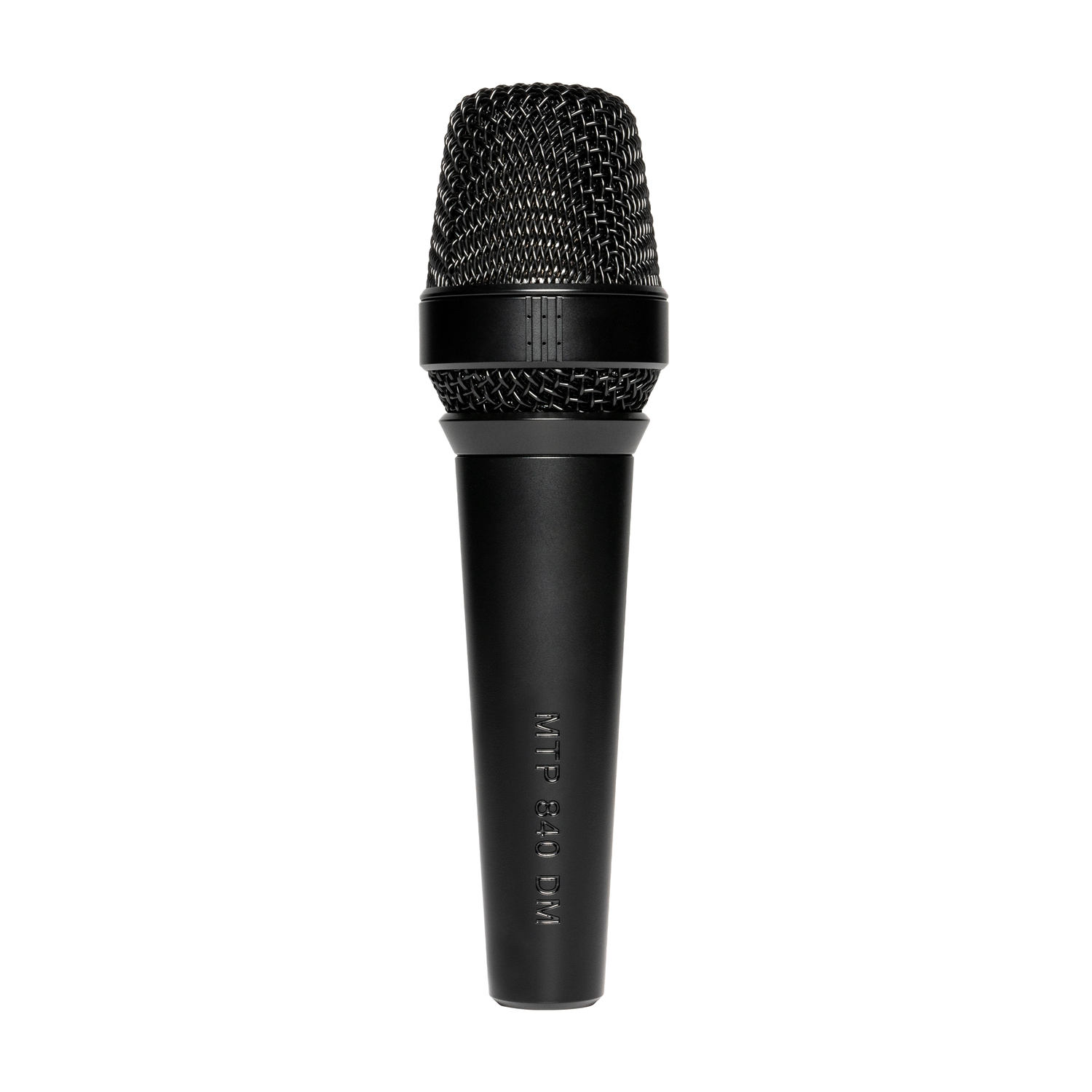

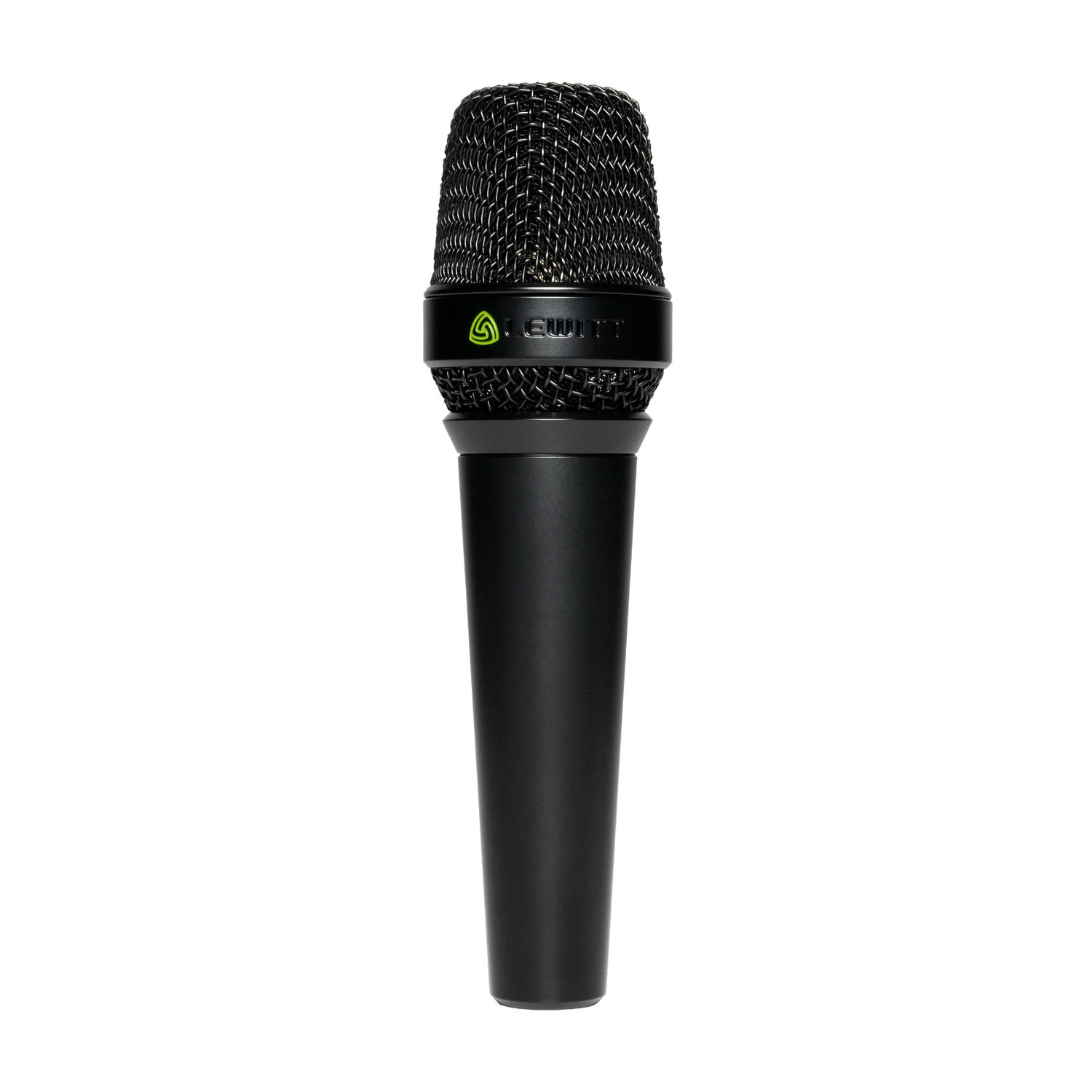

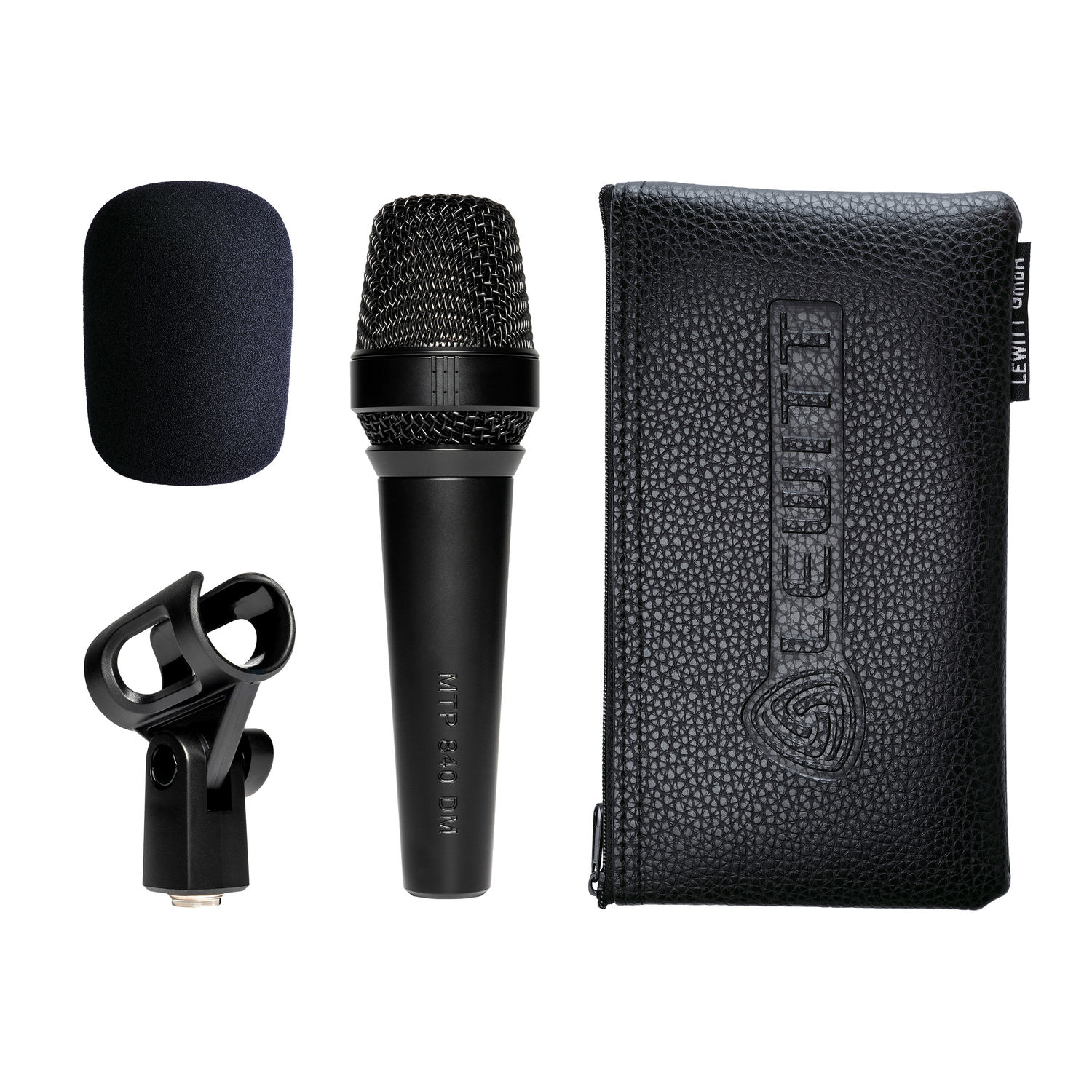

Lewitt MTP 840 DM Dynamic Vocal Microphone
The MTP 840 DM is a supercardioid handheld dynamic built for high gain before feedback and tight rejection of side and rear sound, tuned so vocals cut through a dense mix without reaching for EQ. Its standout feature is Active Mode, a phantom-powered internal amplifier that adds up to 12 dB of sensitivity for a cleaner, more detailed signal on preamps that would otherwise need extra gain.
A removable mesh head hides internal switches for 150 Hz or 250 Hz low-cut filtering, both at 12 dB per octave, for controlling structure-borne noise and proximity effect on the fly. It connects on a gold-plated 3-pin XLR and runs its Active Mode circuit on 48V phantom power at 5.5 mA.
| Transducer Type | Dynamic, moving coil |
|---|---|
| Polar Pattern | Supercardioid |
| Sensitivity | 3.5 mV/Pa (-49 dBV/Pa) |
| Dynamic Range (Passive) | 135 dB |
| Dynamic Range (Active) | 121 dB at 0 dB, 115 dB at 6 dB, 109 dB at 12 dB gain |
| Low-Cut Filter | Switchable 150 Hz or 250 Hz, 12 dB/octave |
| Internal Impedance | 600 Ohms |
| Connector | Gold-plated 3-pin XLR |
| Power (Active Mode) | 48V +/- 4V phantom, 5.5 mA |
