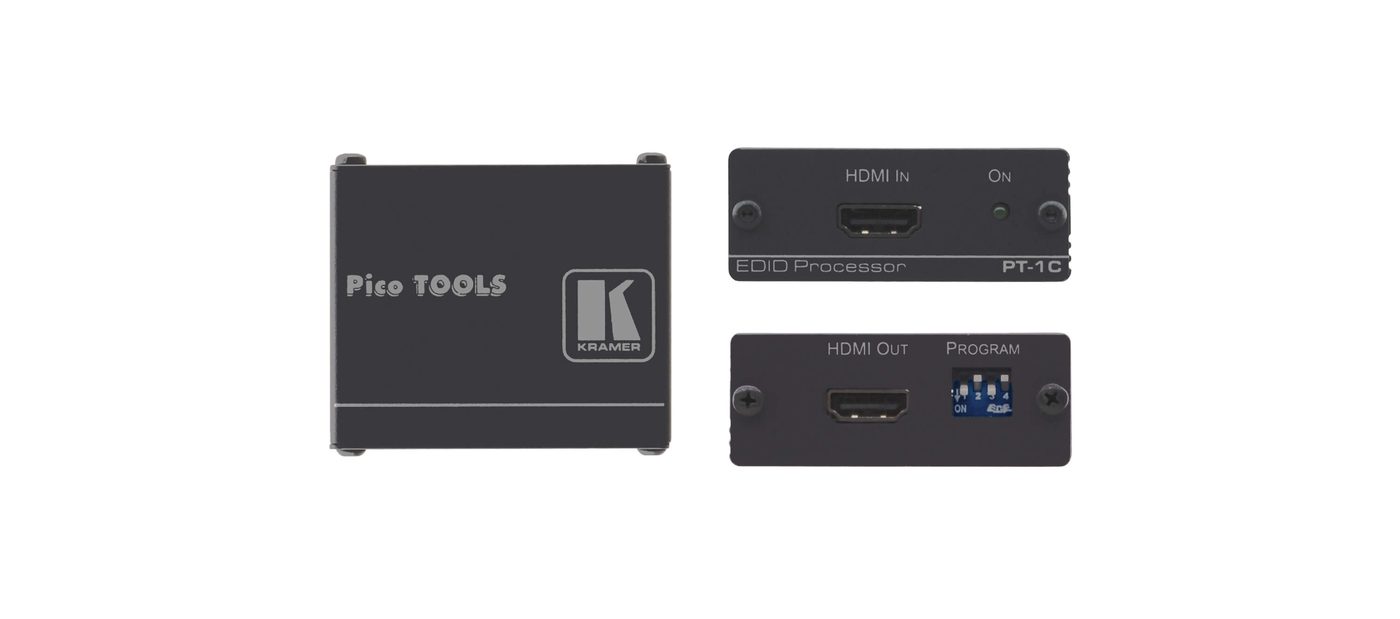

Kramer PT-1C 4K HDR HDMI EDID Processor

PT-1C is a 4K HDR EDID processor. It allows you to lock EDID signals and to support or not support HDCP, multi-channel audio or deep color signals that may or may not be compatible with the display. Max. Data Rate - 17.82Gbps (5.94Gbps per data channel). Max. Resolution - 4K@60Hz (4:4:4). HDMI Compatible. Compliance with HMDI Standards - HDR10, HDCP 2.2. Line Powered Device - Power taken from the HDMI line, no power supply is needed. Indicator - Power LED. Controls - Four program DIP-switches control desired functions.

INPUT1 HDMI connector
OUTPUT1 HDMI connector
MAX DATA RATE17.82Gbps (5.94Gbps per data channel), 4K compatible
STANDARDS SUPPORTEDSupports HDR10, HDMI and HDCP 2.2
CONTROLS4 DIP-switches
INDICATORPower LED
POWER REQUIREMENTSTakes power from the HDMI line
OPERATING TEMPERATURE0 deg to +40C (32 deg to 104F)
