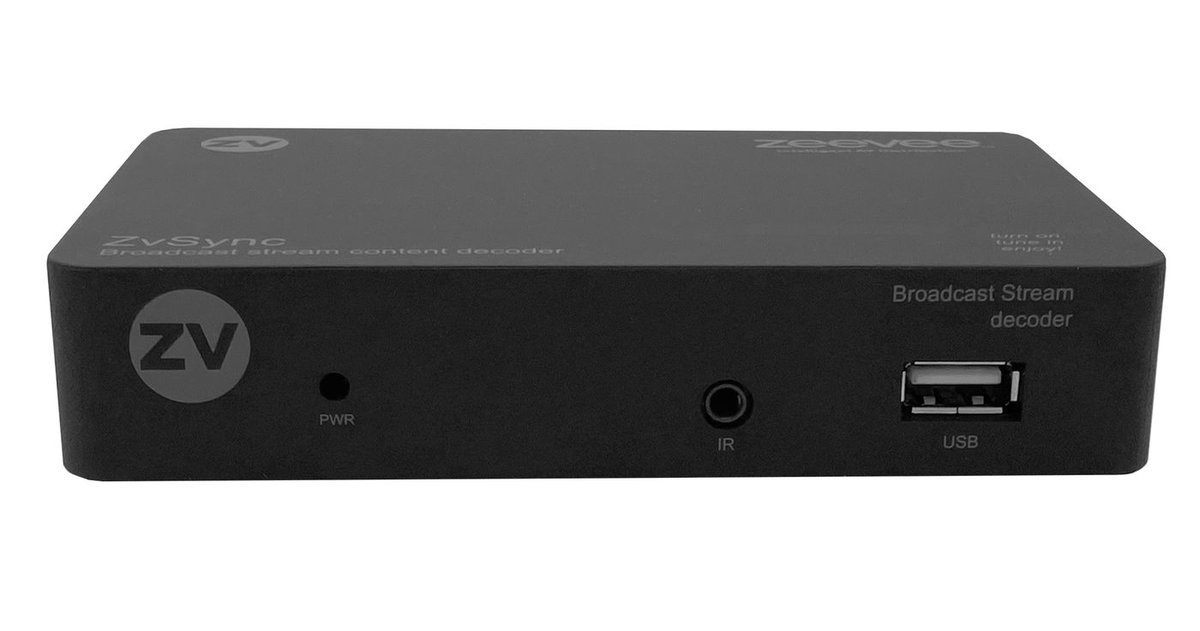

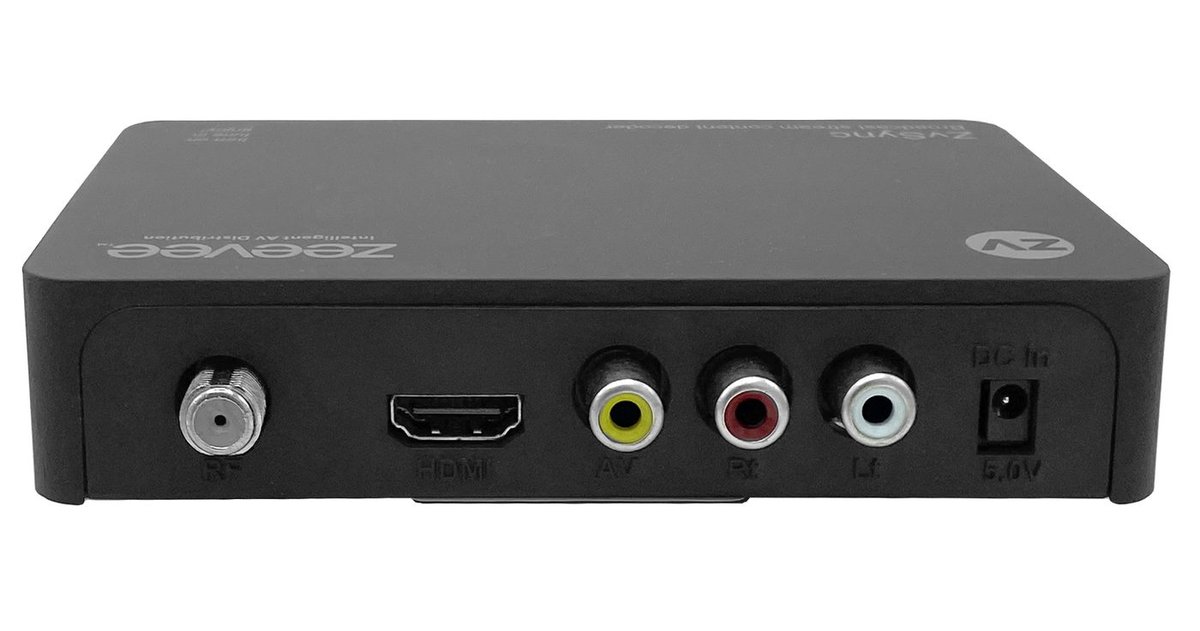

Kramer ZvSync-NA ZvSync QAM Tuner

The Kramer ZvSync-NA is a zvSync QAM Tuner, sourced and specified directly from Kramer's published data sheet for this model.

Key specifications: Compliance: UL, CE, TuV, CSA, FCC. Low Voltage Directive 2006/95/EC. EN60065:2002+A1:2006. EMC Directive 2004/108/EC. EN 55 013:2001+A1:2003+A2:2006,EN 55 020:2007. EN 61 000-3-2:2006, EN 61 000-3-3:200; Unit Dimensions (including ports): 13.1 cm x 9.5 cm x 3.1 cm; Carton Dimensions (individual): 17 cm x 13.7 cm x 8.5 cm; Shipping Weight: 18 oz; Warranty: 1 Year (general); Input Frequency Range: 48-862MHz; RF Input Level: -20 to - 82dBm; RF Bandwidth: 6MHz; Modulation: ATSC(8VSB) 16QAM, 64QAM, 256QAM (tuner); Decoder Format: MPEG2 MP@ML/HL; Output Format: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p60Hz; Aspect Ratio: 4:3, 16:9, Auto; Output Ports: HDMI (v1.3C), CVBS (video); Decoder Format: MPEG-1(layer 1 & 2 & 3), WMA, AC-3; Audio Output: Digital Audio over HDMI, RCAx2(L/R) (audio). Also: Supported Capacity: Unlimited; Supported Media: MP3, WMA, JPEG, BMP, AVI (usb 2.0); Supply Voltage (Wall): 100-240VAC 50-60Hz; Supply Voltage (ZvSync Unit): 5VDC; Maximum Power Consumption: 10W; Standby Power Consumption: <0.8W; Nominal Power Consumption: 5W (power); AA Batteries (2x): Remote control power; Composite Cable: Connects to television when using CVBS output; IR Sensor: Connects to IR port, allows tuner to be installed in an unobtrusive location; External Power Supply: Connects to AC outlet, provides low voltage DC to tuner unit (accessories (included)).
