Kramer VA-1DVIN DVI EDID Emulator

The VA-1DVIN solves the problem where a computer renegotiates its resolution the moment a display drops off the DVI line. Press the capture button once with the display connected and the unit stores that EDID in non-volatile memory, then reports it to the source permanently. The source stays locked to the resolution you set, through switcher changes, projector warm-up, and power cycles.

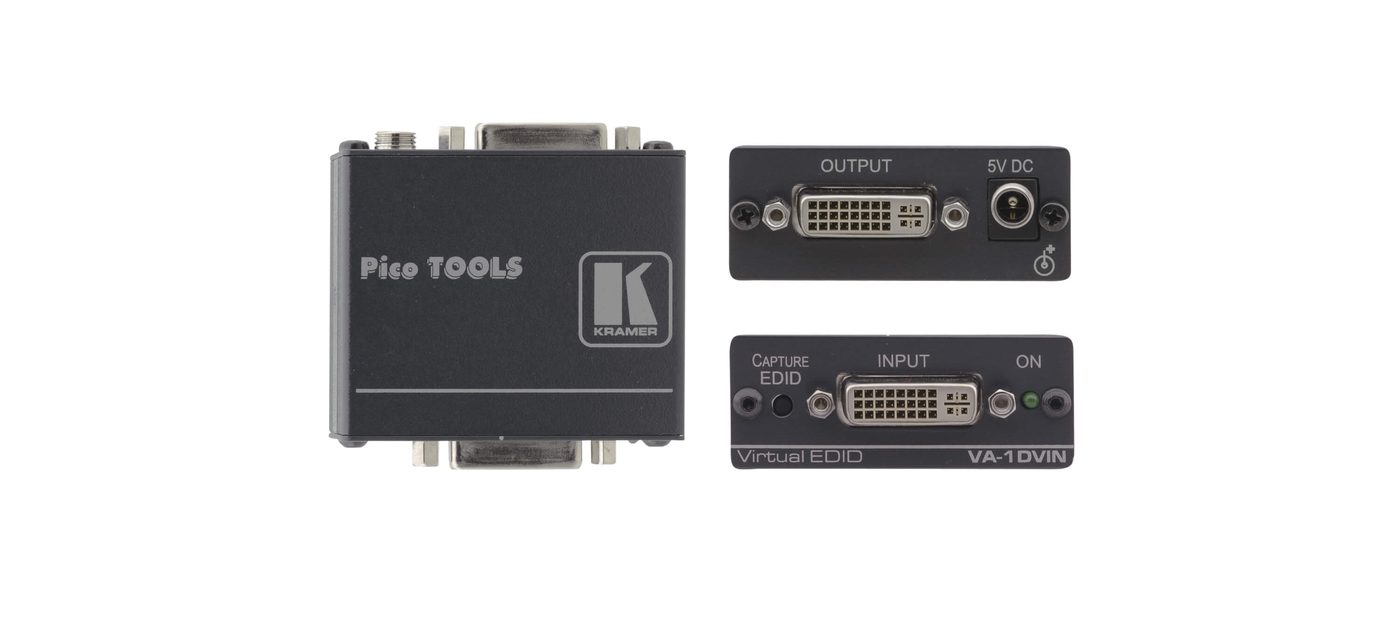

It is inline and passive to the picture: one DVI dual-link input and one DVI dual-link output on Molex 24-pin female connectors, 1.2Vpp with a 5Vpp TTL DDC signal, passing up to 3.3Gbps per graphic channel. Analog signals on the DVI-I connector pass through without processing. It draws 20mA from a 5V DC supply, which is included.
