JBL SUB18 18-inch High-Output Studio Subwoofer

The SUB18 is a 18-inch high-output studio subwoofer. The low-frequency section uses One JBL model 2269H, 18-inch (457 mm); 100mm (4-inch) dual voice coils, dual neodymium magnets. Differential Drive Direct Cooled. Frequency range is 18 Hz @ 2. Sensitivity is 92dB @ 1m, 2.83 V.

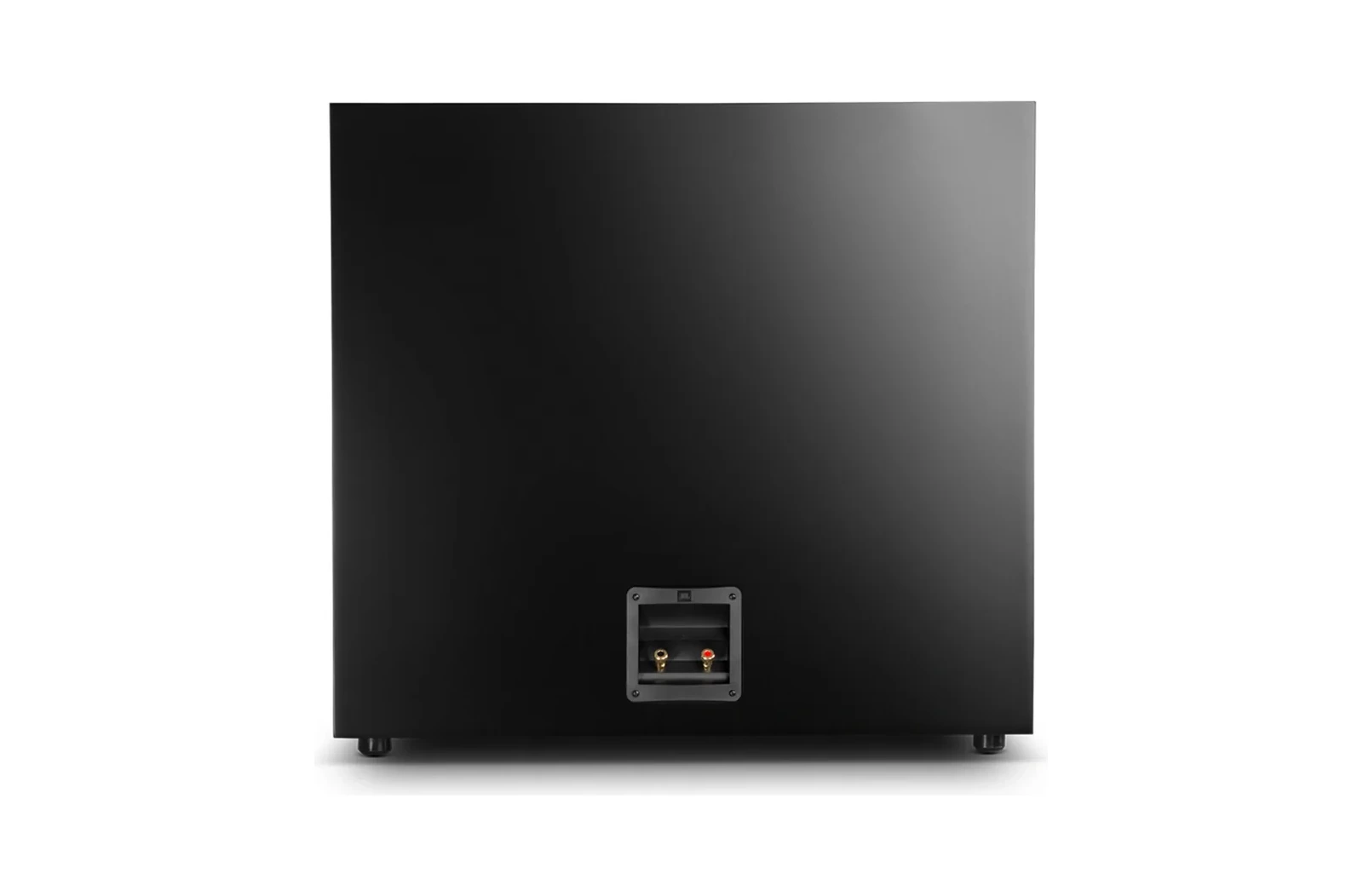

The enclosure is 18mm 11-ply Baltic Birch Plywood. Finish is Black Lacquer. Connections are 2 ea. Push Terminals. Net weight is 100 lbs ( 45 kg).

Type18-inch High-Output Studio Subwoofer
In-room response (2)Below 18 Hz
Frequency Response, -10 dB (4 measurement)20.6 Hz
Frequency Response, -6 dB (4 measurement)23.1 Hz
Maximum Peak SPL137 dB SPL
System Input Power Rating, AES/2 Hr.:LF 2000W continuous/8000W peak
Sensitivity92dB @ 1m, 2.83 V
Amplifier Power Rating3,500 to 4,000W into 8
Recommended Signal ProcessingCrown iTech HD Power Amplification. Preset for use with JBL M2 available
