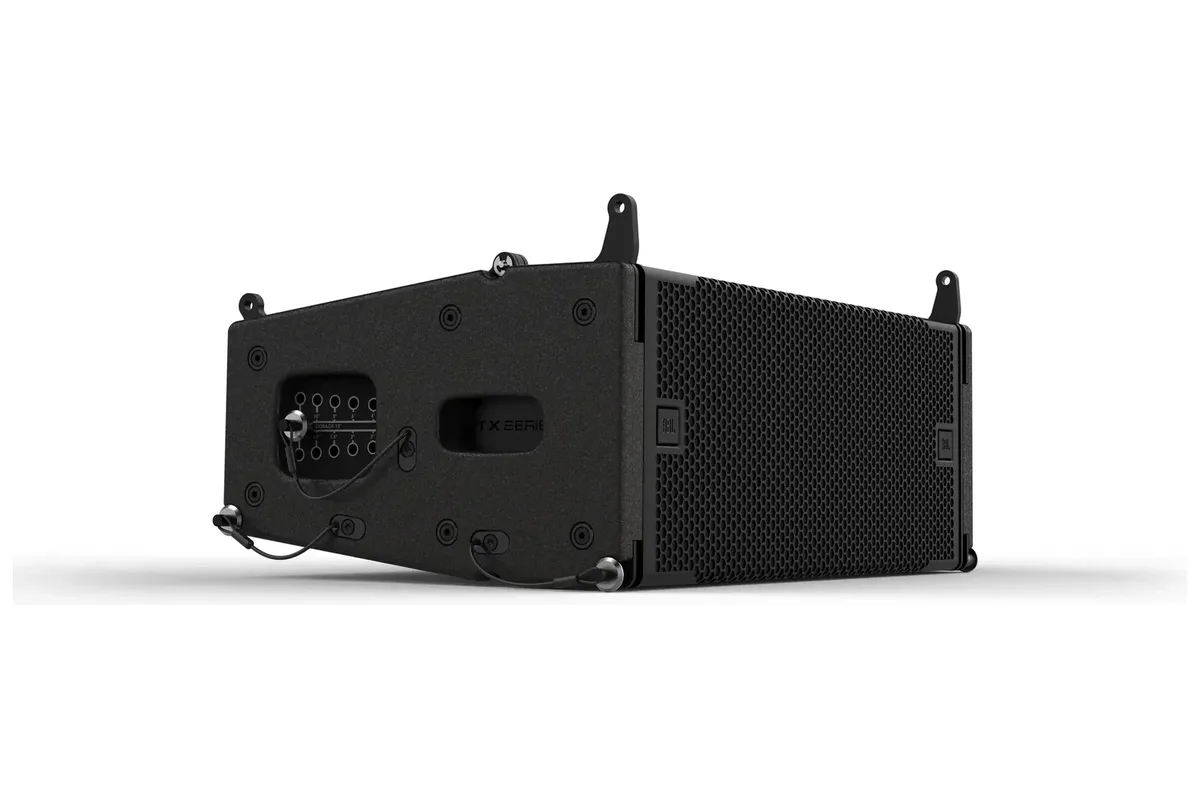

JBL VTX A6 Sub-compact Dual 6.5-Inch Line Array Element

The VTX A6 is a sub-compact dual 6.5-Inch line array element, from the VTX touring range. The low-frequency section uses (2) JBL 2186J, 6.5 in diameter, dual 2.5 in diameter voice coil, neodymium Differential Drive. High frequencies come from (1) JBL 2433H, 3 in diameter annular diaphragm, 3 in diameter voice coil, neodymium compression driver. Nominal coverage is 110 degrees nominal (500 Hz-16 kHz). Frequency range is 67 Hz-20 kHz. Maximum SPL at 1 m is 134 dB.

The enclosure is 12 mm 9-ply exterior grade birch plywood, black DuraFlexTM finish, four integral recessed handholds. It measures 190 mm x 536 mm x 301 mm 7.5 in x 21.1 in x 11.8 in. Net weight is 18.4 kg (40.3 lbs).
