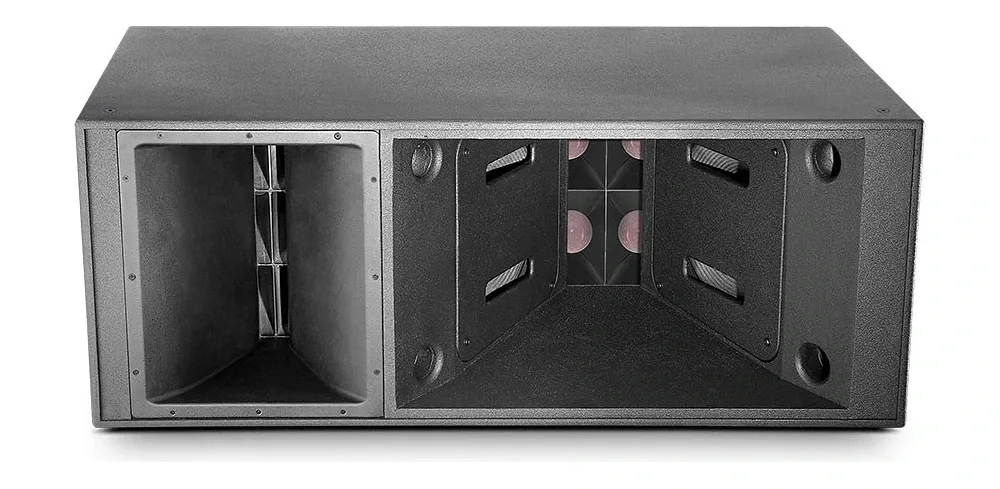

JBL VLA601Hi High Output Three-Way Full Range Loudspeaker with 2 x 15" LF

The VLA601Hi is a high output three-way full range loudspeaker with 2 x 15" LF. The low-frequency section uses 2 x JBL 2265H, 15in diameter, dual 3in diameter voice coil, Neodymium Differential Drive. Frequency range is 41 - 20kHz. Maximum SPL at 1 m is 150.7dB (Preset: Flat). Nominal impedance is 4 ohms.

The enclosure is 18mm and 16mm, Exterior grade Baltic birch plywood, DuraFlexTM finish or optional Fiberglass. The grille is Powder coated 14 gauge perforated steel, zinc-phosphate dipped, acoustically transparent foam backing (grill cloth backing on white units) (16 gauge stainless steel on WR versions). Finish is Black DuraFlexTM (STD), Gray DuraFlexTM (WRC), Gray Fiberglass (WRX), optional colors; Stainless Steel Hardware (WRC/WRX). Connections are Barrier Strip for #6 spade lug, including gland nut and cover plate. Environmental rating: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. It measures 528.3mm x 1346.2mm x 767.1mm (20.8in x 53.0in x 30.2in).
