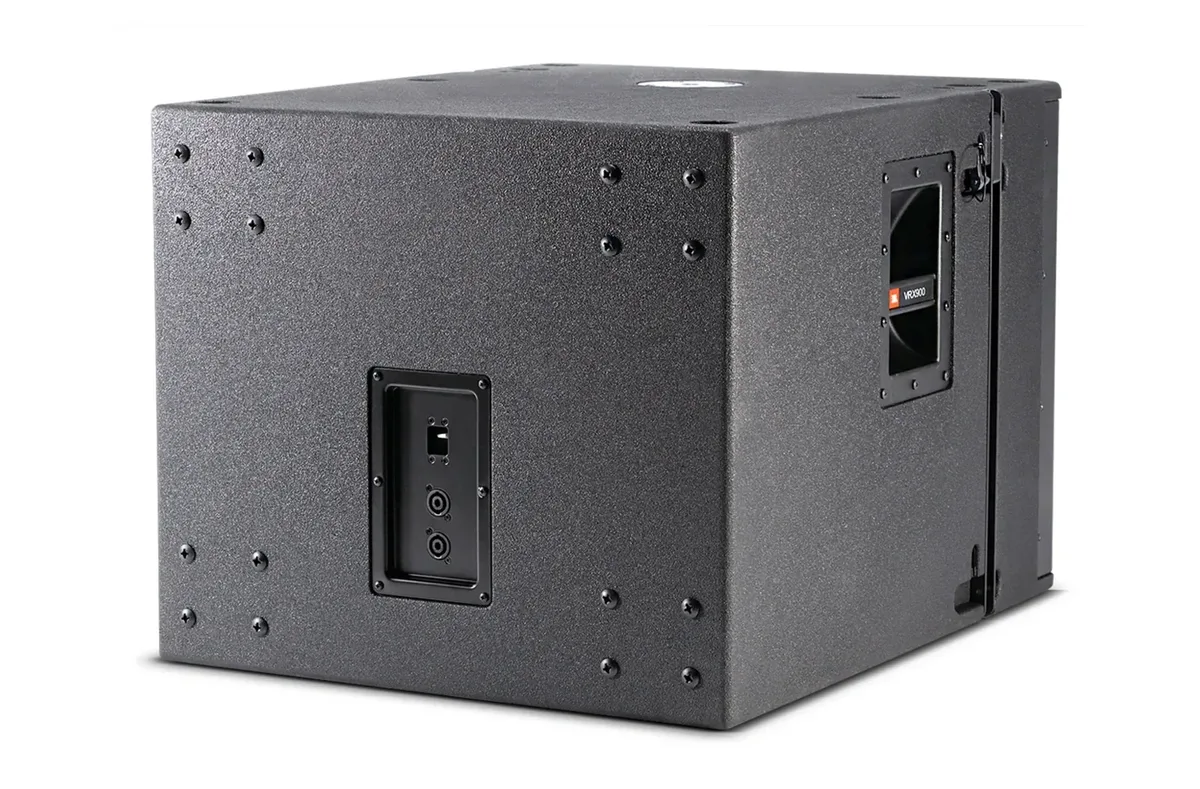

JBL Professional JBL VRX918S Passive 18-inch flyable subwoofer

The VRX918S is the eighteen-inch suspendable subwoofer for VRX932LA arrays. A 2268H neodymium Differential Drive woofer sits in a front-loaded vented rectangular cabinet with integral rigging so the subs can fly in the same hang as the tops.

It is rated 800 W continuous at 8 ohms with 95 dB sensitivity, running from 31 Hz to 220 Hz, and makes 130 dB peak. JBL recommends 80 Hz high-pass and low-pass filters at 24 dB per octave. Suspension uses the optional VRX932LA-AF frame kit or 10 mm eyebolts. The cabinet is 18 mm 13-ply birch in black DuraFlex; an external amplifier is required.

Type	Passive 18-inch flyable subwoofer
Nominal impedance	8 ohms
Power rating (continuous / program / peak)	800 W / 1600 W / 3200 W
System maximum SPL	130 dB SPL peak
System sensitivity	95 dB SPL (1 W @ 1 m)
Frequency range (-10 dB)	31 Hz - 220 Hz
Recommended crossover	80 Hz 24 dB/octave high-pass; 80 Hz 24 dB/octave low-pass
LF driver	1 x JBL 2268H 457 mm (18-inch) Differential Drive woofer
Inputs	2 x Neutrik Speakon NL-4
Enclosure	18 mm 13-ply birch plywood, black DuraFlex finish
Suspension	Optional VRX932LA-AF line array frame kit or 10 mm eyebolts
Dimensions (H x W x D)	508 x 597 x 749 mm (20.0 x 23.5 x 29.5 in)
Net weight (each)	37 kg (81 lb)
